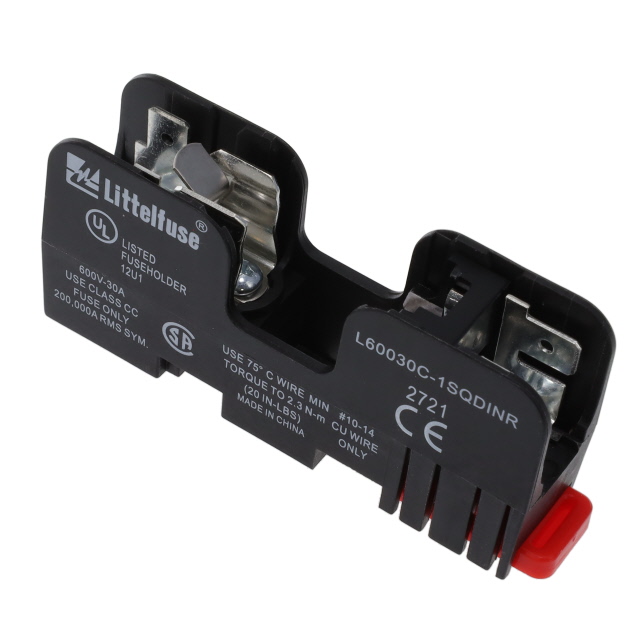

L60030C-1SQDINR Series

ACS600V CLS CC 30A 1 POLE DINMNT RLS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

ACS600V CLS CC 30A 1 POLE DINMNT RLS

Part	Termination Style	Contact Material	Fuse Type	For Use With/Related Products	Voltage	Mounting Type	Number of Circuits	Contact Finish	Current Rating (Amps)	Fuse Size [diameter]	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [x]	Fuseholder Type
Littelfuse/Commercial Vehicle Products L60030C1SQDINR	Quick Connect Screw Terminal	Copper Alloy	Cartridge	13/32" x 1-1/2" 5AG	600 V	DIN Rail	1	Tin	30 A	0.394 in	1.496 "	10 mm	38 mm	Block

Catalog

ACS600V CLS CC 30A 1 POLE DINMNT RLS

Key Features

• Spring-free mechanism allows for easy installation and removal.

• Integral DIN rail mounting reduces assembly time.

• Quick-Connect terminals accommodate side or top connection.

• Class CC and G versions ensure branch circuit protection compliance.

Description

Littelfuse DIN series Class CC, G and Midget fuse blocks have integral DIN rail mounting capabilities that allow secure mounting to 35mm "hat" type DIN rails. New releasable mechanism allows installation and removal of block without removing adjacent components on DIN rail. Electrical panel builders and machine builders no longer need to use mounting adapters, saving assembly time and related costs.
