726-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K

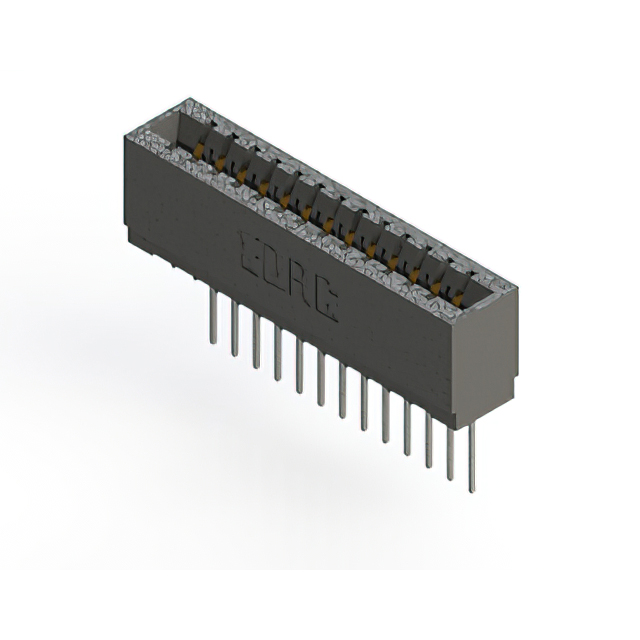

CONN EDGE SGL FMALE 13POS 0.125
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Rows | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Color | Pitch | Pitch | Termination | Card Thickness [Max] | Card Thickness [Min] | Read Out | Contact Material | Number of Positions | Contact Type | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Non Specified - Single Edge | 1 | 13 | -40 C | 105 ░C | Female | Black | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Copper Alloy | 13 | Cantilever | Through Hole | Gold |
