MS3106F36 Series

Catalog

PLUG

Part	Ingress Protection	Color	Qualification	Shell Size - Insert Width	Shell Size - Insert Length	Contact Finish - Mating	Number of Positions	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Grade	Connector Type	Applications	Shell Finish	Orientation	Fastening Type	Current Rating Options	Insert Material	Termination	Contact Material	Mounting Type	Shell Material	Features	Shielding	Current Rating
Amphenol Aerospace Operations MS3106F36-17P
Amphenol Aerospace Operations MS3106F36-8S
Amphenol Aerospace Operations MS3106F36-52P
Amphenol Aerospace Operations MS3106F36-6S	Environment Resistant	Olive Drab	MIL-DTL-5015	6 mm	36 mm	Silver	6	Metal	125 °C	-55 °C	Military	Female Sockets Plug	Marine Military	Cadmium Olive Drab Chromate	N (Normal)	Threaded	150A 80A	Neoprene	Solder Cup	Copper Alloy	Free Hanging (In-Line)	Aluminum Alloy	Backshell Cable Clamp Coupling Nut	Unshielded
Amphenol Aerospace Operations MS3106F36-3S
Amphenol Aerospace Operations MS3106F36-9S

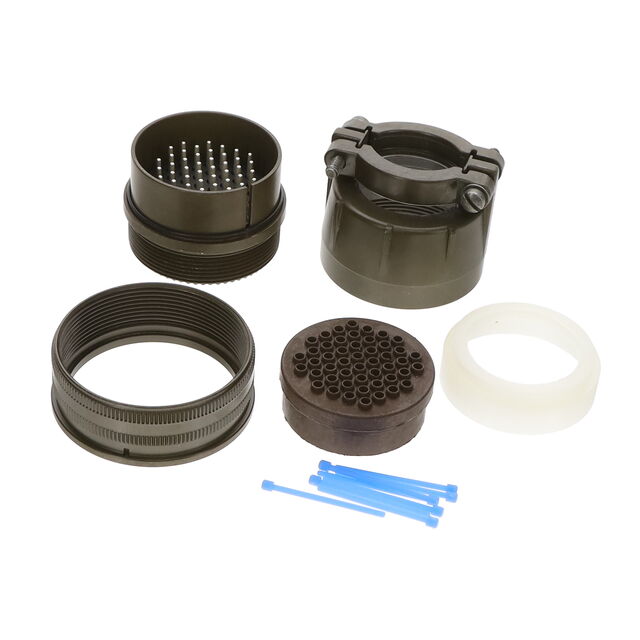

Amphenol Aerospace Operations MS3106F36-10P	Environment Resistant	Olive Drab	MIL-DTL-5015	10 mm	36 mm	Silver	48	Metal	125 °C	-55 °C	Military	Male Pins Plug	Marine Military	Cadmium Olive Drab Chromate	N (Normal)	Threaded		Neoprene	Solder Cup	Copper Alloy	Free Hanging (In-Line)	Aluminum Alloy	Backshell Cable Clamp Coupling Nut	Unshielded	13 A
Amphenol Aerospace Operations MS3106F36-78S
Amphenol Aerospace Operations MS3106F36-5P
Amphenol Aerospace Operations MS3106F36-9P
