97021 Series
Manufacturer: Pflitsch
Beta
⌘K

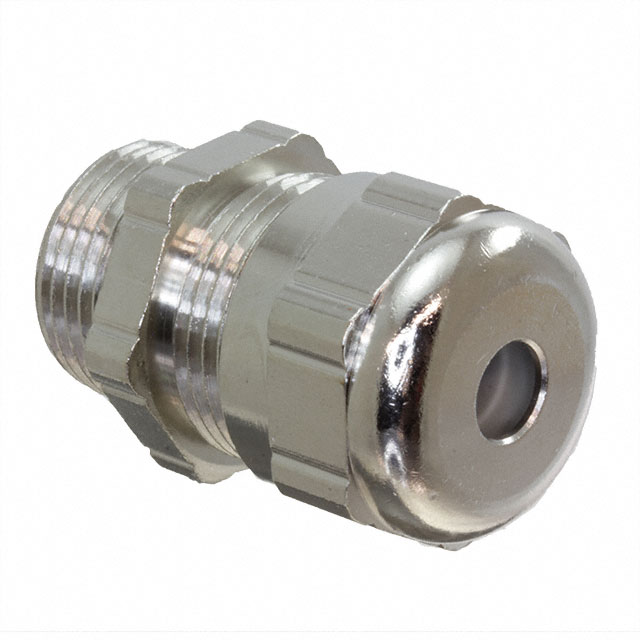

CABLE GLAND 4.06-6.6MM M20 BRASS
| Part | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Type | Thread Length | Thread Length | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Ingress Protection | Thread Size | Panel Hole Size | Panel Hole Size | Color | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | 4.06 mm | 0.16 in | Cable Gland | 0.39 in | 9.91 mm | 6.6 mm | 0.26 in | -40 C | 300 °C | Sealing Ring | IP68 - Dust Tight Waterproof NEMA 4X | M20x1.5 | 20.1 mm | 0.79 in | Silver | Brass Nickel Plated |
