PPTC082 Series

Catalog

CONN HDR 16POS 0.1 TIN PCB

Part	Insulation Material	Contact Shape	Contact Material	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Fastening Type	Insulation Height	Insulation Height	Voltage Rating	Mounting Type	Number of Rows [custom]	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Material Flammability Rating	Termination	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]

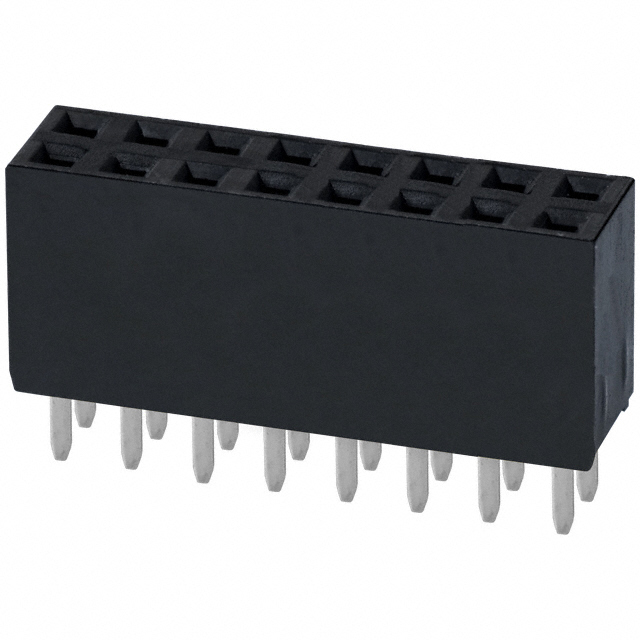

Sullins Connector Solutions PPTC082LFBN	Polyester	Square	Phosphor Bronze	3 A	0.1 "	2.54 mm	0.126 "	3.2 mm	Female Socket	Push-Pull	0.335 "	8.51 mm	250 V	Through Hole	2	Black	Header	-40 C	105 ░C	Tin	All	0.1 in	2.54 mm	16	UL94 V-0	Solder

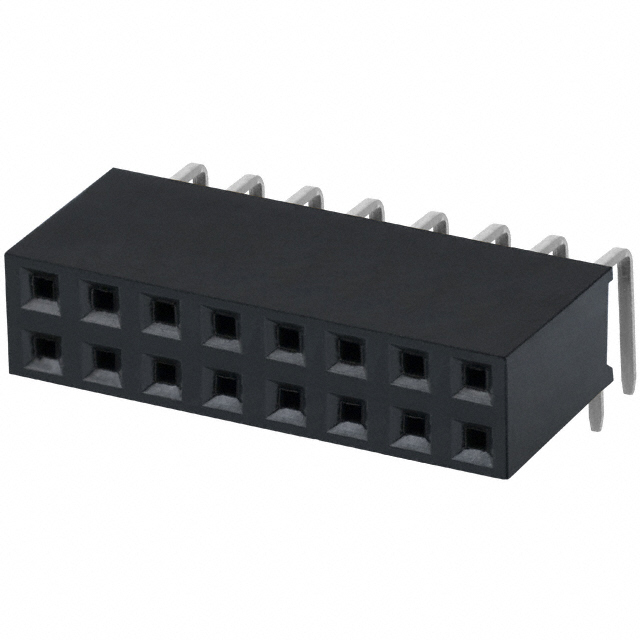

Sullins Connector Solutions PPTC082LJBN-RC	Polyester	Square	Phosphor Bronze	3 A	0.1 "	2.54 mm			Female Socket	Push-Pull			250 V	Right Angle Through Hole	2	Black	Header	-40 C	105 ░C	Tin	All	0.1 in	2.54 mm	16	UL94 V-0	Solder	0.124 in	3.15 mm	0.2 in	5.08 mm
