PEC20 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 20POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Type	Mounting Type	Connector Type	Contact Length - Post	Contact Length - Post	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Shape	Termination	Number of Rows	Insulation Color	Insulation Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Material	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length
Sullins Connector Solutions PEC20SGAN	2.54 µm	100 µin	8.08 mm	0.318 in	Push-Pull	Male Pin	Right Angle Through Hole	Header Breakaway	0.1 in	2.54 mm	Board to Board Cable	100 çin	2.54 çm	3.56 mm	0.14 in	Tin	20	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder	1	Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze

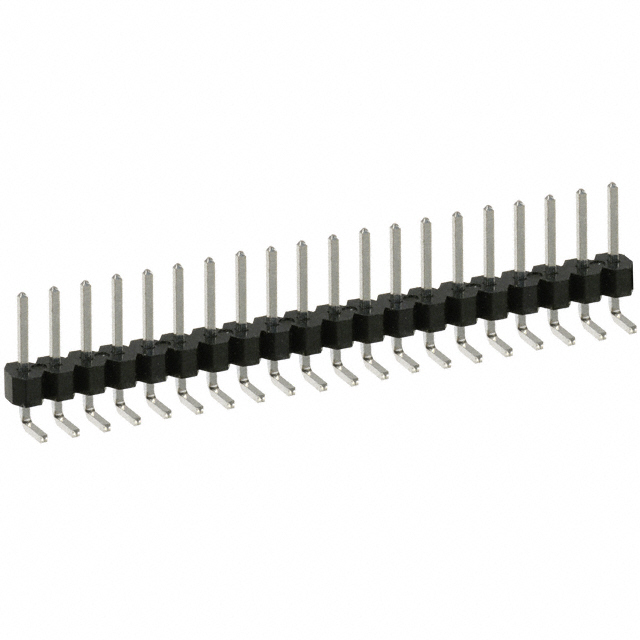

Sullins Connector Solutions PEC20SBAN	2.54 µm	100 µin	5.84 mm	0.23 in	Push-Pull	Male Pin	Right Angle Through Hole	Header Breakaway	0.1 in	2.54 mm	Board to Board Cable	100 çin	2.54 çm	3.56 mm	0.14 in	Tin	20	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder	1	Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze

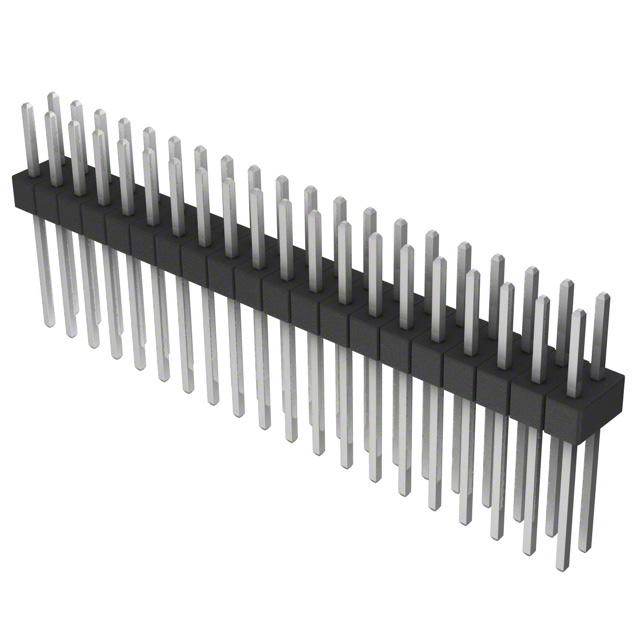

Sullins Connector Solutions PEC20DADN	2.54 µm	100 µin	5.84 mm	0.23 in	Push-Pull	Male Pin	Through Hole	Header Breakaway	0.42 in	10.67 mm	Board to Board Cable	100 çin	2.54 çm	2.54 mm	0.1 in	Tin	40	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder		Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze	19.05 mm	0.75 in	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC20DBCN	2.54 µm	100 µin	5.84 mm	0.23 in	Push-Pull	Male Pin	Right Angle Through Hole	Header Breakaway	0.3 in	7.62 mm	Board to Board Cable	100 çin	2.54 çm			Tin	40	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder		Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze			0.1 in	2.54 mm	2	6.1 mm	0.24 in
Sullins Connector Solutions PEC20SFAN	2.54 µm	100 µin	8.08 mm	0.318 in	Push-Pull	Male Pin	Through Hole	Header Breakaway	0.12 in	3.05 mm	Board to Board Cable	100 çin	2.54 çm	2.54 mm	0.1 in	Tin	20	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder	1	Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze	13.67 mm	0.538 in

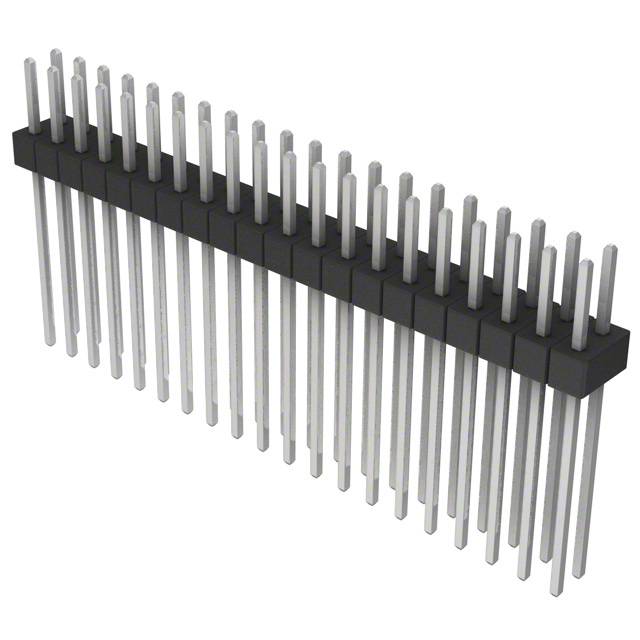

Sullins Connector Solutions PEC20DAFN	2.54 µm	100 µin	5.84 mm	0.23 in	Push-Pull	Male Pin	Through Hole	Header Breakaway			Board to Board Cable	100 çin	2.54 çm	2.54 mm	0.1 in	Tin	40	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder		Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze			0.1 in	2.54 mm	2			0.95 in	24.13 mm	15.75 mm	0.62 "

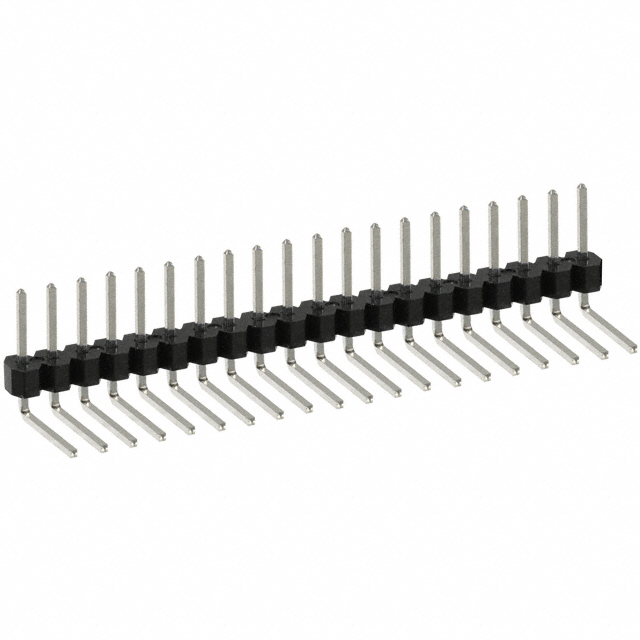

Sullins Connector Solutions PEC20SBCN	2.54 µm	100 µin	5.84 mm	0.23 in	Push-Pull	Male Pin	Right Angle Through Hole	Header Breakaway	0.3 in	7.62 mm	Board to Board Cable	100 çin	2.54 çm	3.56 mm	0.14 in	Tin	20	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder	1	Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze
Sullins Connector Solutions PEC20DBBN	2.54 µm	100 µin	5.84 mm	0.23 in	Push-Pull	Male Pin	Right Angle Through Hole	Header Breakaway			Board to Board Cable	100 çin	2.54 çm			Tin	40	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder		Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze			0.1 in	2.54 mm	2	6.1 mm	0.24 in			5.08 mm	0.2 "

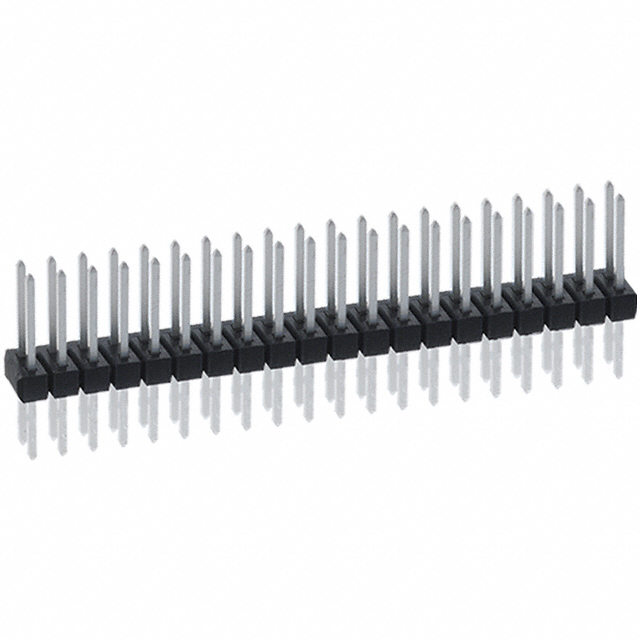

Sullins Connector Solutions PEC20DFBN	2.54 µm	100 µin	8.08 mm	0.318 in	Push-Pull	Male Pin	Through Hole	Header Breakaway	0.22 in	5.58 mm	Board to Board Cable	100 çin	2.54 çm	2.54 mm	0.1 in	Tin	40	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder		Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze			0.1 in	2.54 mm	2			0.638 in	16.21 mm

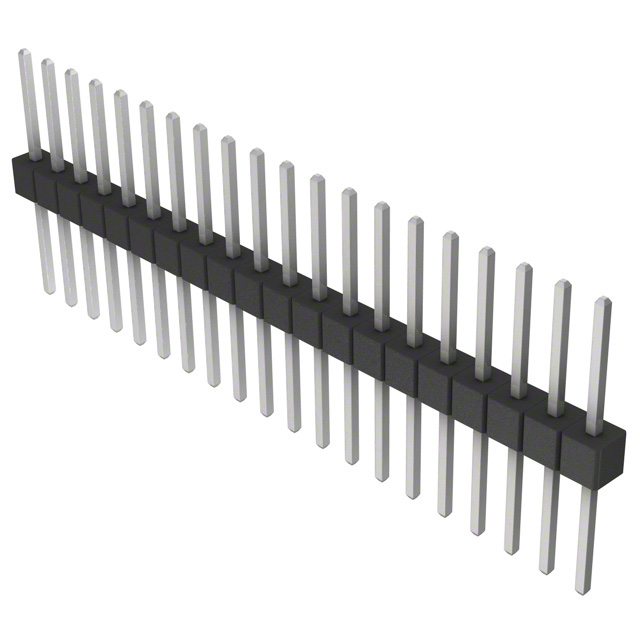

Sullins Connector Solutions PEC20SFCN	2.54 µm	100 µin	8.08 mm	0.318 in	Push-Pull	Male Pin	Through Hole	Header Breakaway	0.32 in	8.13 mm	Board to Board Cable	100 çin	2.54 çm	2.54 mm	0.1 in	Tin	20	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Square	Solder	1	Black	Polybutylene Terephthalate (PBT)	3 A	-65 ░C	125 °C	All	Phosphor Bronze									18.75 mm			0.738 in
