725-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 58POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Color	Mounting Type	Contact Material	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Read Out	Number of Rows [custom]	Card Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Termination	Termination Rows	Number of Rows
EDAC Inc. 725-058-520-201	Polyester Thermoplastic	2	Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	2	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit
EDAC Inc. 725-058-525-201	Polyester Thermoplastic	2	Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	2	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit

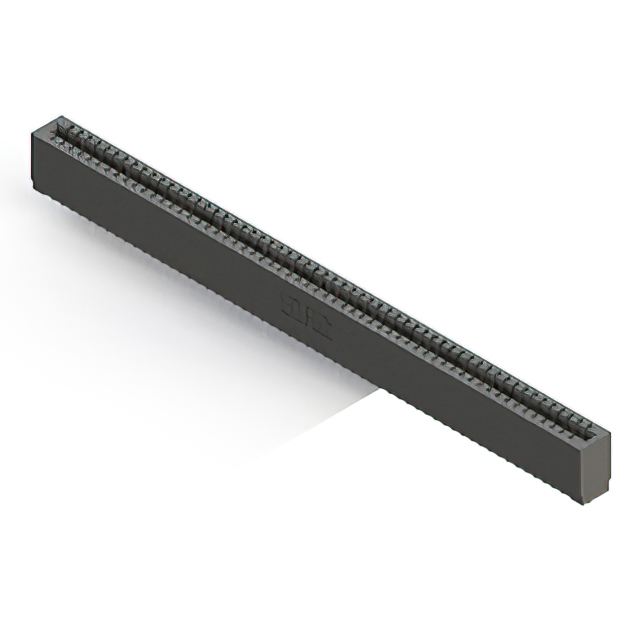

EDAC Inc. 725-058-520-101	Polyester Thermoplastic		Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	58	0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit	1	1
EDAC Inc. 725-058-541-201	Polyester Thermoplastic	2	Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	2	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit Wire Wrap
EDAC Inc. 725-058-540-101	Polyester Thermoplastic		Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	58	0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit Wire Wrap	1	1
EDAC Inc. 725-058-545-201	Polyester Thermoplastic	2	Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	2	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit Wire Wrap

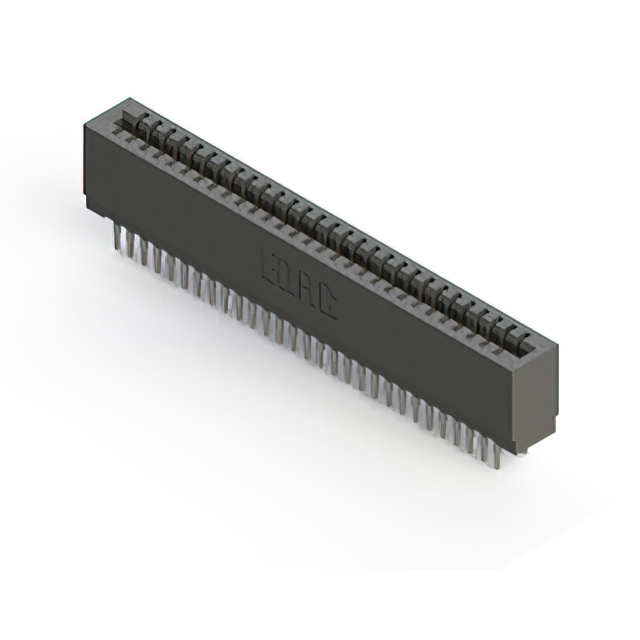

EDAC Inc. 725-058-540-201	Polyester Thermoplastic	2	Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	2	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit Wire Wrap
EDAC Inc. 725-058-545-101	Polyester Thermoplastic		Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	58	0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit Wire Wrap	1	1

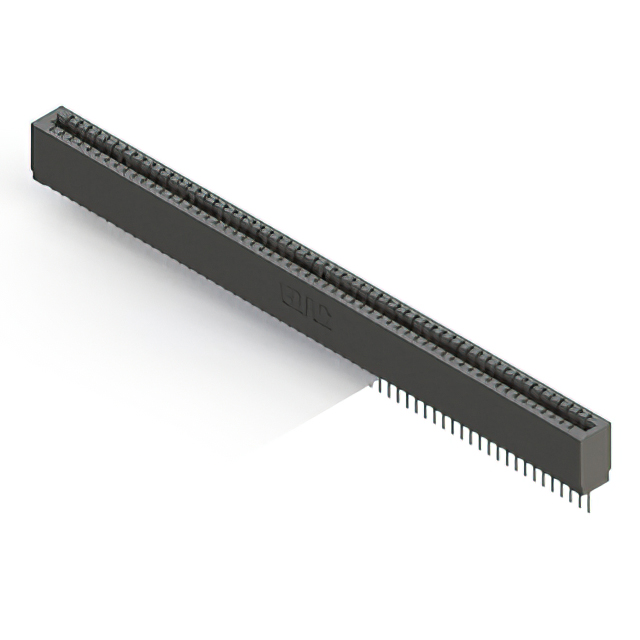

EDAC Inc. 725-058-522-101	Polyester Thermoplastic		Black	Through Hole	Copper Alloy	58	Cantilever	30 Áin	0.76 Ám	Female	58	0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit	1	1

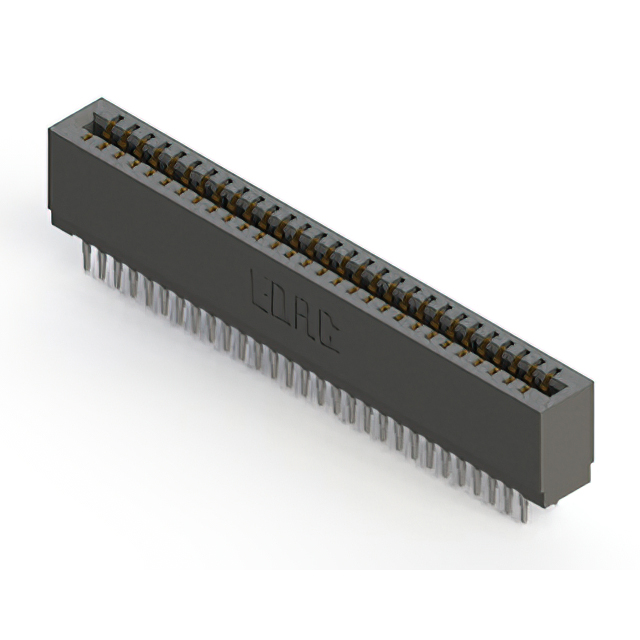

EDAC Inc. 725-058-560-201	Polyester Thermoplastic	2	Black	Through Hole	Copper Alloy	58	Cantilever Make Before Break	30 Áin	0.76 Ám	Female	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	2	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Press-Fit
