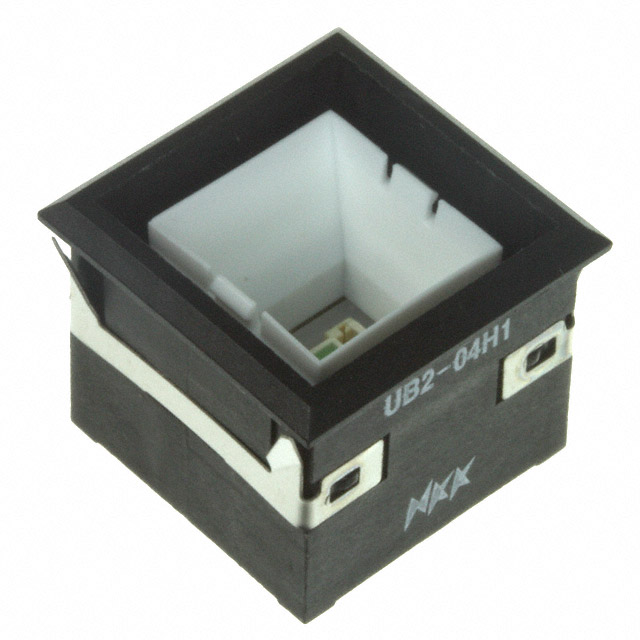

UB204 Series
Manufacturer: NKK Switches
Beta
⌘K
LED PANEL INDICATOR BLUE 3.6V
| Part | Voltage | Type | Lens Size | Lens Transparency | Panel Cutout Shape | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [y] | Lens Style | Lamp Color | Lens Color | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 3.6 V | LED | 15 mm | Diffused | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Blue | Blue | 30 mA |
NKK Switches | 1.85 V | LED | 15 mm | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Red | 30 mA | ||
NKK Switches | 1.85 V | LED | 15 mm | Diffused | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Red | Red | 30 mA |
NKK Switches | 3.3 V | LED | 15 mm | Diffused | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | White | White | 20 mA |
NKK Switches | 2.1 V | LED | 15 mm | Diffused | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Green | Green | 25 mA |
 NKK Switches | 2.1 V | LED | 15 mm | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Green | 25 mA | ||
NKK Switches | 3.6 V | LED | 15 mm | Diffused | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Blue | Blue | 30 mA |
NKK Switches | 3.6 V | LED | 15 mm | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Blue | 30 mA | ||
NKK Switches | 2.1 V 3.5 V | LED | 15 mm | Diffused | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Green Red | White | 25 mA 30 mA |
NKK Switches | 2.1 V | LED | 15 mm | Diffused | Square | 0.69 " | 17.53 mm | 0.69 " | 17.53 mm | Square with Flat Top | Green | Green | 25 mA |
