KISSLING Series 35 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

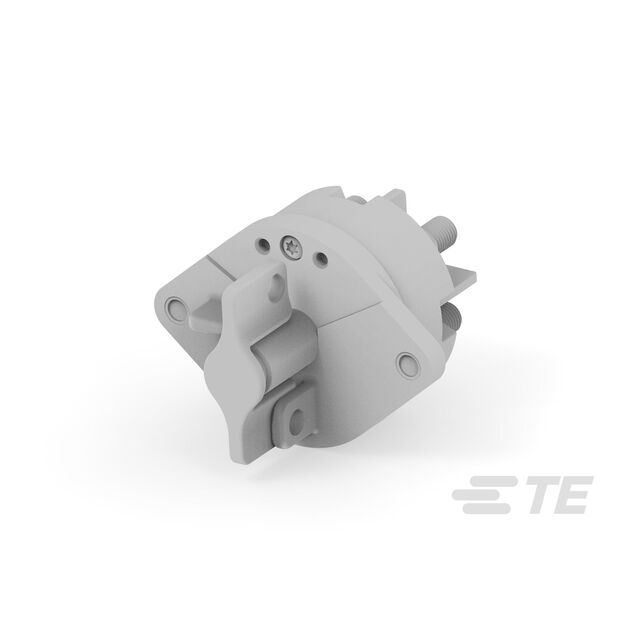

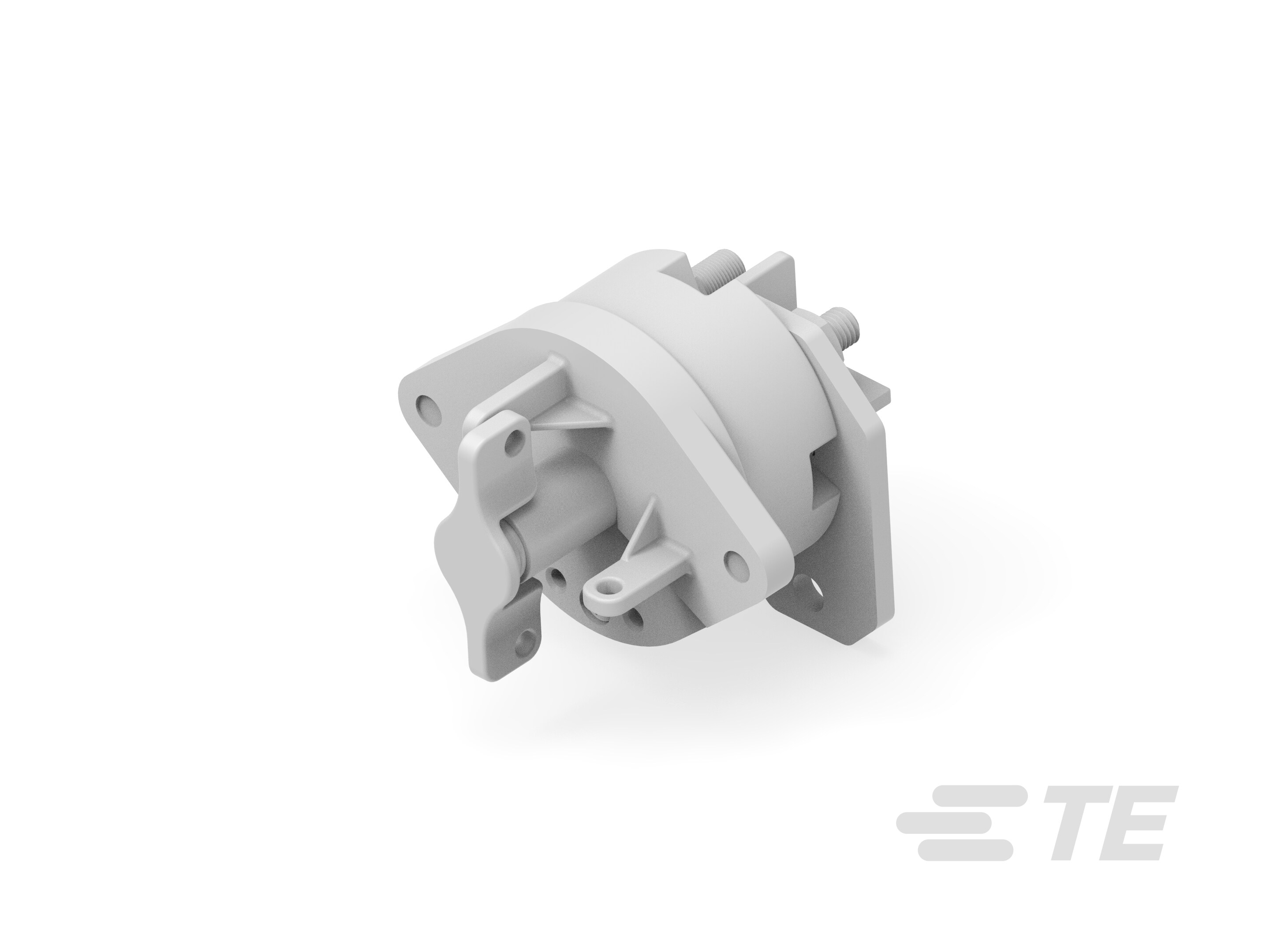

BATTERY DISCONNECTOR 35-524-231-GE-900
| Part | Depth Behind Flange | Features | Type | Illumination | Ingress Protection | Current Rating (Amps) | Mounting Type | Circuit | Voltage Rating - DC | Switch Function | Termination Style | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 75 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 500 A | Panel Mount | DPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 75 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 500 A | Panel Mount | DPST-NO + SPDT | 32 V | On-Off On-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 66.5 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 400 A | Panel Mount | SPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 72.5 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 500 A | Panel Mount | DPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 62 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 200 A | Panel Mount | DPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 48.9 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 200 A | Panel Mount | SPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 62 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 200 A | Panel Mount | DPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 73 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 500 A | Panel Mount | DPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | 75 mm | Long Lever | Battery Disconnect | Non-Illuminated | IP67 - Dust Tight Waterproof | 500 A | Panel Mount | DPST-NO | 32 V | Off-On | Stud | 2 | 85 °C | -40 C | ||
 TE Connectivity AMP Connectors | Operation Key | 35 Series |
