84303 Series
Manufacturer: Belden Inc.
Beta
⌘K

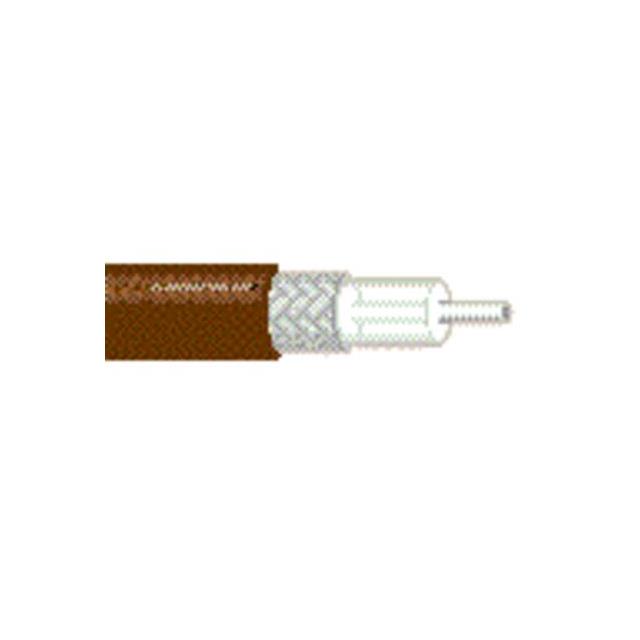

RG303 COAX
| Part | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | VoP, Velocity of Propagation | Conductor Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Conductor Strand | Wire Gauge | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Length [x] | Length [x] | Impedance | Shield Type | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % | 2.95 mm | 0.116 in | Copper Silver Coated | 70 | Copper Covered Silver Coated Steel | Polytetrafluoroethylene (PTFE) | -70 °C | 200 °C | Fluorinated Ethylene-Propylene (FEP) | Solid | 18 AWG | Brown | 0.17 in | 4.32 mm | RG-303 | 304.8 m | 1000 ft | 50 Ohms | Braid | Coaxial |
