LCM-S04004 Series

Catalog

LCD MOD 160DIG 40 X 4 REFLECTIVE

Part	Display Type	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Backlight	Number of Characters	Character Format [x]	Character Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Dot Size [custom]	Dot Size [custom]	Display Format [y]	Display Format [x]	Interface	Viewing Area [x]	Viewing Area [y]	Background Color	Display Mode	Character Size [y]	Character Size [z]

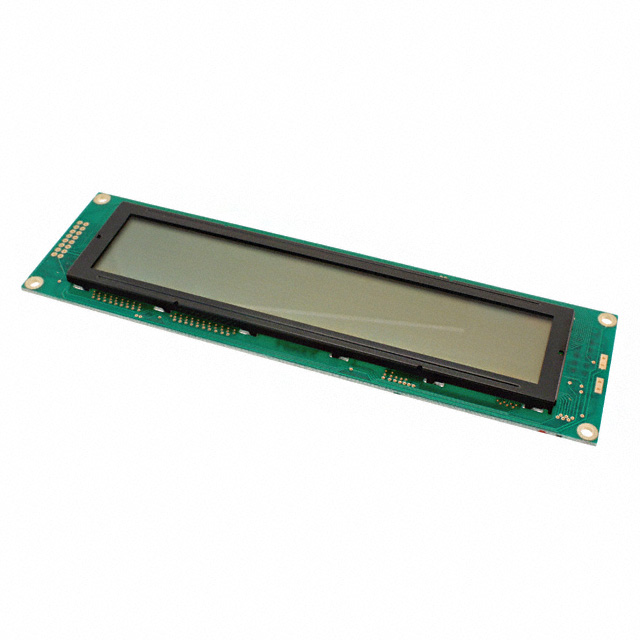

Lumex Opto/Components Inc. LCM-S04004DSR	STN - Super-Twisted Nematic	10 mm	54 mm	190 mm		160	5 Dots	8 Dots	50 °C	0 °C	0.5 mm	0.55 mm	4	40	Parallel	149 mm	29.5 mm	Green	Reflective	2.78 mm	4.89 mm

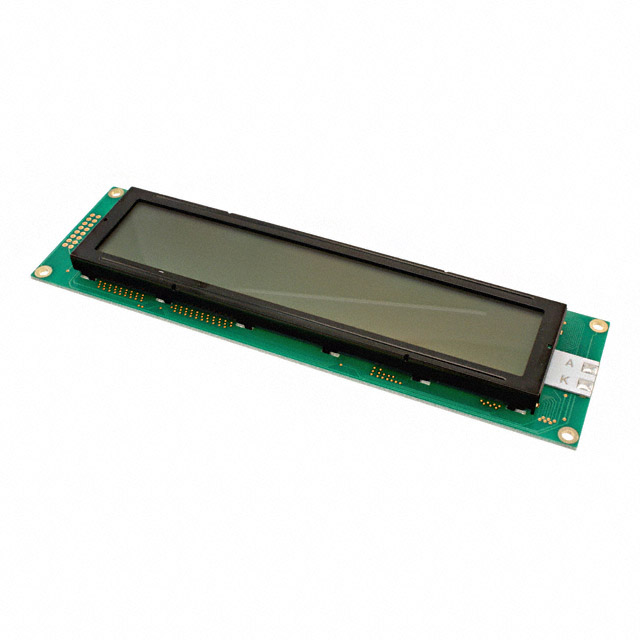

Lumex Opto/Components Inc. LCM-S04004DSF	STN - Super-Twisted Nematic	14.5 mm	54 mm	190 mm		160	5 Dots	8 Dots	50 °C	0 °C	0.5 mm	0.55 mm	4	40	Parallel	149 mm	29.5 mm	Green	Transflective	2.78 mm	4.89 mm
