79107 Series

Manufacturer: Molex

Catalog

CONN SOCKET STRIP RCP 20 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE MILLI-GRID TUBE

Part	Contact Shape	Applications	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Type	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Connector Type	Fastening Type	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Style	Termination
Molex 0791077059	Square	Automotive General Purpose Telecommunications	Phosphor Bronze	1.9 Ám	74.8 Áin	2 mm	0.079 in	Through Hole	Female Socket	Gold	4.45 mm	0.175 in	Receptacle	Push-Pull	Tin	Black	All	-55 C	125 °C	2	0.76 Ám	30 Áin	125 VDC	0.079 "	2 mm	20	0.118 in	3 mm	Board to Board Cable	Solder
Molex 791077017

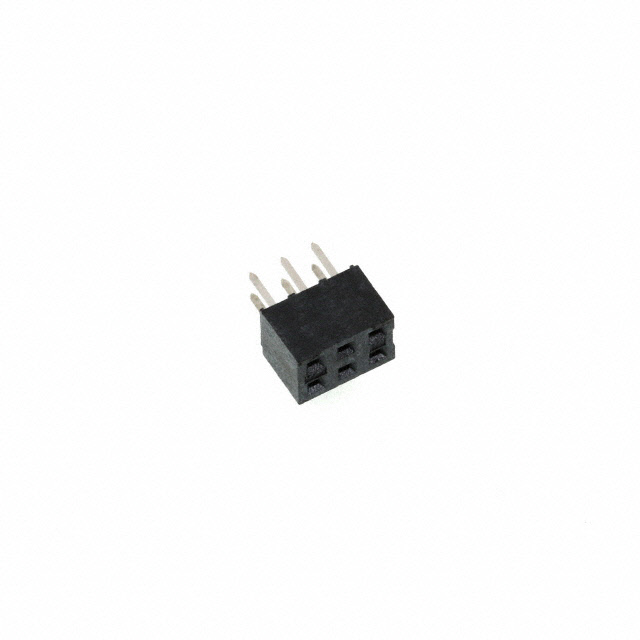

Molex 0791077002	Square	Automotive General Purpose Telecommunications	Phosphor Bronze	1.9 Ám	74.8 Áin	2 mm	0.079 in	Through Hole	Female Socket	Gold	4.45 mm	0.175 in	Receptacle	Push-Pull	Tin	Black	All	-55 C	125 °C	2	0.38 µm	15 µin	125 VDC	0.079 "	2 mm	6	0.118 in	3 mm	Board to Board Cable	Solder

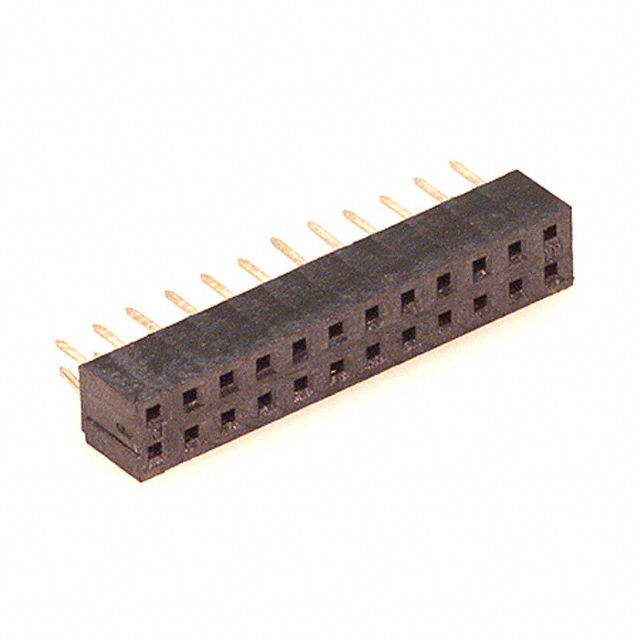

Molex 0791077011	Square	Automotive General Purpose Telecommunications	Phosphor Bronze	1.9 Ám	74.8 Áin	2 mm	0.079 in	Through Hole	Female Socket	Gold	4.45 mm	0.175 in	Receptacle	Push-Pull	Tin	Black	All	-55 C	125 °C	2	0.38 µm	15 µin	125 VDC	0.079 "	2 mm	24	0.118 in	3 mm	Board to Board Cable	Solder

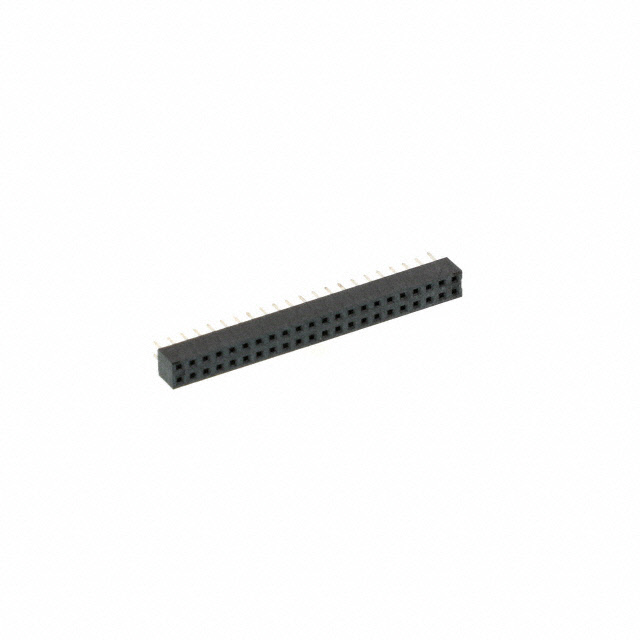

Molex 0791077021	Square	Automotive General Purpose Telecommunications	Phosphor Bronze	1.9 Ám	74.8 Áin	2 mm	0.079 in	Through Hole	Female Socket	Gold	4.45 mm	0.175 in	Receptacle	Push-Pull	Tin	Black	All	-55 C	125 °C	2	0.38 µm	15 µin	125 VDC	0.079 "	2 mm	44	0.118 in	3 mm	Board to Board Cable	Solder
Molex 791077074
Molex 791077251

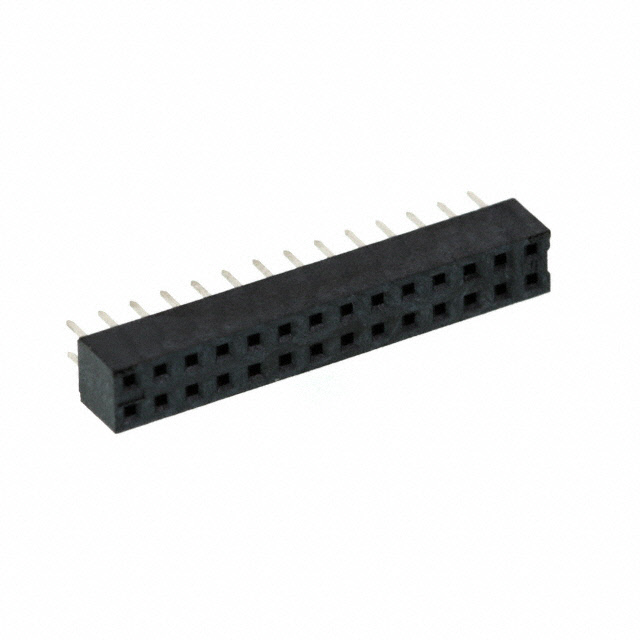

Molex 0791077013	Square	Automotive General Purpose Telecommunications	Phosphor Bronze	1.9 Ám	74.8 Áin	2 mm	0.079 in	Through Hole	Female Socket	Gold	4.45 mm	0.175 in	Receptacle	Push-Pull	Tin	Black	All	-55 C	125 °C	2	0.38 µm	15 µin	125 VDC	0.079 "	2 mm	28	0.118 in	3 mm	Board to Board Cable	Solder

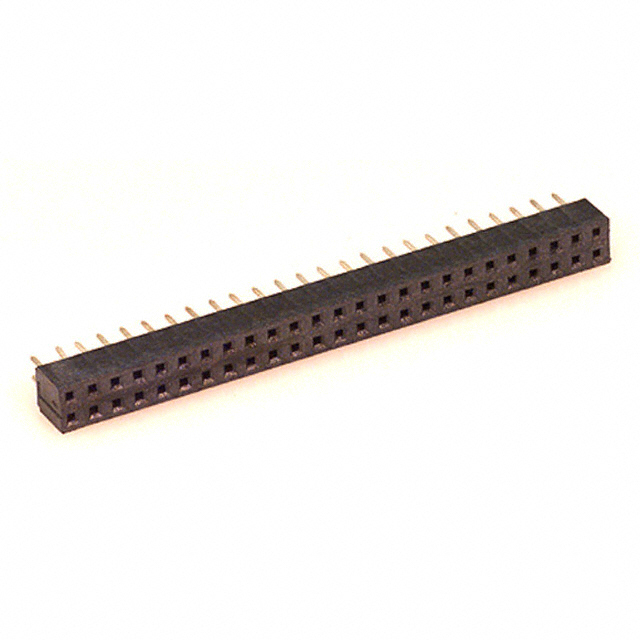

Molex 0791077024	Square	Automotive General Purpose Telecommunications	Phosphor Bronze	1.9 Ám	74.8 Áin	2 mm	0.079 in	Through Hole	Female Socket	Gold	4.45 mm	0.175 in	Receptacle	Push-Pull	Tin	Black	All	-55 C	125 °C	2	0.38 µm	15 µin	125 VDC	0.079 "	2 mm	50	0.118 in	3 mm	Board to Board Cable	Solder
