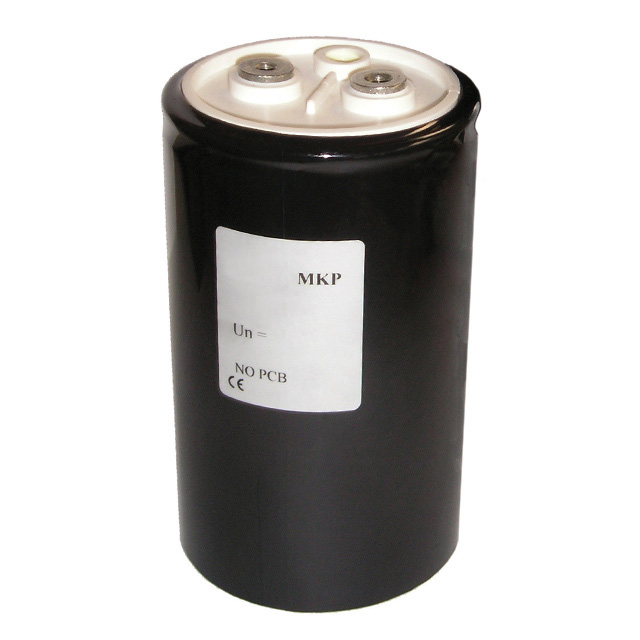

C44UOG Series

Manufacturer: KEMET

Catalog

CAP FILM 900UF 10% 900VDC RADIAL

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lead Spacing	Lead Spacing	Applications	Package / Case	Dielectric Material	Tolerance	Termination	ESR (Equivalent Series Resistance)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET C44UOGT6900M51K	Chassis Stud Mount	5.433 in	138 mm	4.567 "	116 mm	900 µF	50 mm	1.969 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	1.2 mOhm	900 VDC	85 °C	-40 C
KEMET C44UOGT6700M86K	Chassis Stud Mount			3.346 "	85 mm	700 µF	32 mm	1.26 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	1.3 mOhm	900 VDC	85 °C	-40 C	7.165 in	182 mm
KEMET C44UOGT6600M85K	Chassis Stud Mount			3.346 "	85 mm	600 µF	32 mm	1.26 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	2.4 mOhms	900 VDC	85 °C	-40 C	148 mm		5.827 in
KEMET C44UOGT7180M53K	Chassis Stud Mount	9.37 in	238 mm	4.567 "	116 mm	1800 µF	50 mm	1.969 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	1.2 mOhm	900 VDC	85 °C	-40 C
KEMET C44UOGT7210M54K	Chassis Stud Mount	10.945 in	278 mm	4.567 "	116 mm		50 mm	1.969 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	1.5 mOhm	900 VDC	85 °C	-40 C
KEMET C44UOGT7200G5SK	Chassis Stud Mount					2 mF			DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female		900 VDC	85 °C	-40 C				Long Life
KEMET C44UOGT6450M82K	Chassis Stud Mount			3.346 "	85 mm	450 µF	32 mm	1.26 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	1.8 mOhm	900 VDC	85 °C	-40 C					118 mm	4.646 in
KEMET C44UOGT7120M87K	Chassis Stud Mount	10.709 "		3.346 "	85 mm	1.2 mF	32 mm	1.26 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	2 mOhms	900 VDC	85 °C	-40 C						272 mm
KEMET C44UOGT6375M81K	Chassis Stud Mount	4.055 in		3.346 "	85 mm	375 µF	32 mm	1.26 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	1.5 mOhm	900 VDC	85 °C	-40 C						103 mm
KEMET C44UOGT6350A8SK	Chassis Stud Mount			3.346 "	85 mm	350 µF	31.7 mm	1.248 in	DC Filtering DC Link	Can Radial	Polypropylene (PP) Metallized	10 %	Threaded Female	3 mOhm	900 VDC	85 °C	-40 C	146 mm		5.748 in	Long Life
