822064 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

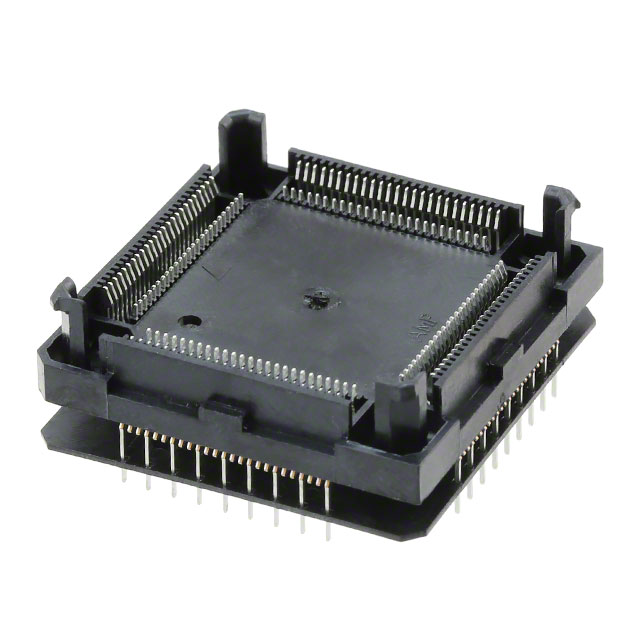

CONN SOCKET PQFP 100POS TIN-LEAD
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Material - Post | Features | Contact Finish - Mating | Housing Material | Contact Finish - Post | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Type | Contact Material - Mating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.43 mm | 0.135 in | UL94 V-0 | Phosphor Bronze | Closed Frame | Tin-Lead | Liquid Crystal Polymer (LCP) | Tin-Lead | 4 | 25 | 100 | QFP | Phosphor Bronze | Solder | 5.08 µm | 200 µin | 0.025 " | 0.64 mm | 0.64 mm | 0.025 in | Through Hole | 200 µin | 5.08 µm |
 TE Connectivity AMP Connectors | 3.43 mm | 0.135 in | UL94 V-0 | Phosphor Bronze | Closed Frame | Tin-Lead | Liquid Crystal Polymer (LCP) | Tin-Lead | 4 | 25 | 100 | QFP | Phosphor Bronze | Solder | 5.08 µm | 200 µin | 0.025 " | 0.64 mm | 0.64 mm | 0.025 in | Through Hole | 200 µin | 5.08 µm |
