GG0L0C-P Series
Manufacturer: ODU
Beta
⌘K

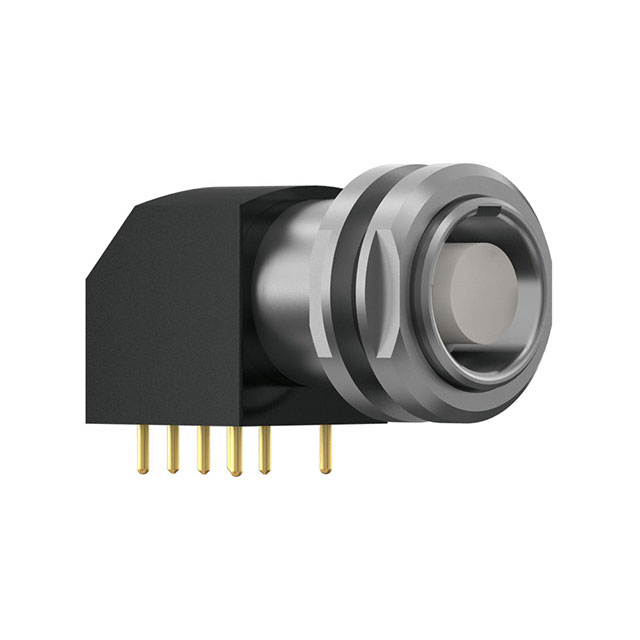

CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Number of Positions | Features | Contact Material | Mounting Type | Primary Material | Mounting Feature | Insert Material | Termination | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Orientation | Connector Type | Contact Finish - Mating | Color | Current Rating (Amps) | Shell Size - Insert [custom] | Fastening Type | Ingress Protection | Applications | Voltage Rating | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5 | Ground | Brass | Panel Mount Right Angle Through Hole | Metal | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | Solder | Chrome over Nickel | 120 °C | -40 C | Brass | 0 | Receptacle Female Sockets | Gold | Silver | 6 A | 0 | Push-Pull | IP50 - Dust Protected | Industrial Medical Military Testing Equipment & Measurement | |||
2 | Ground | Brass | Panel Mount Right Angle Through Hole | Metal | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | Solder | Chrome over Nickel | 120 °C | -40 C | Brass | 0 | Receptacle Female Sockets | Gold | Silver | 7.5 A | 0 | Push-Pull | IP50 - Dust Protected | Industrial Medical Military Testing Equipment & Measurement | 500 V | Unshielded | |
Ground | Brass | Panel Mount Right Angle Through Hole | Metal | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | Solder | Chrome over Nickel | 120 °C | -40 C | Brass | 0 | Receptacle Female Sockets | Gold | Silver | 7.5 A | 0 | Push-Pull | IP50 - Dust Protected | Industrial Medical Military Testing Equipment & Measurement | ||||
4 | Ground | Brass | Panel Mount Right Angle Through Hole | Metal | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | Solder | Chrome over Nickel | 120 °C | -40 C | Brass | 0 | Receptacle Female Sockets | Gold | Silver | 6 A | 0 | Push-Pull | IP50 - Dust Protected | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | Unshielded | |
9 | Ground | Brass | Panel Mount Right Angle Through Hole | Metal | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | Solder | Chrome over Nickel | 120 °C | -40 C | Brass | 0 | Receptacle Female Sockets | Gold | Silver | 4 A | 0 | Push-Pull | IP50 - Dust Protected | Industrial Medical Military Testing Equipment & Measurement | 200 V | Unshielded |
