PPPC341 Series

Catalog

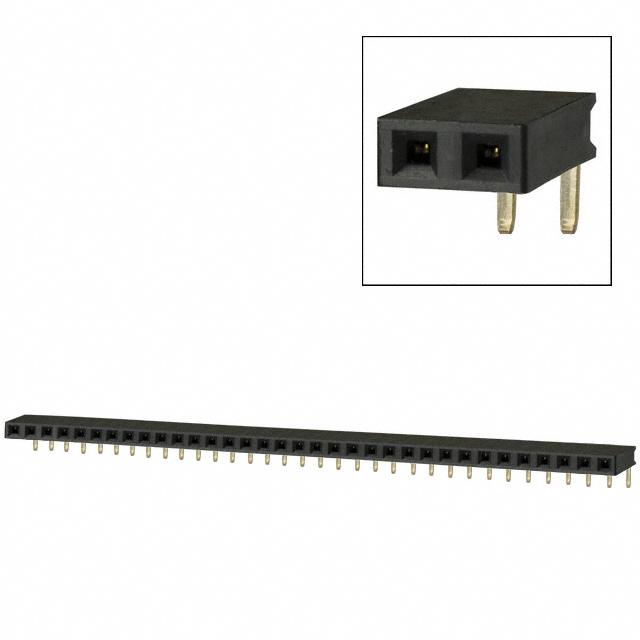

CONN HDR 34POS 0.1 GOLD PCB R/A

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Number of Positions [custom]	Connector Type	Number of Rows	Insulation Height	Insulation Height	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Type	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Fastening Type	Contact Finish - Post
Sullins Connector Solutions PPPC341LGBN-RC	Square	Phosphor Bronze	Flash	Polyester	34	Header	1	0.1 in	2.54 mm	All	-40 C	105 ░C	Solder	Right Angle Through Hole	UL94 V-0	0.124 in	3.15 mm	0.1 "	2.54 mm	Flash	Black	Female Socket	3 A	250 V	Gold	Push-Pull	Gold
Sullins Connector Solutions PPPC341LGBN	Square	Phosphor Bronze	Flash	Polyester	34	Header	1	0.1 in	2.54 mm	All	-40 C	105 ░C	Solder	Right Angle Through Hole	UL94 V-0	0.124 in	3.15 mm	0.1 "	2.54 mm	Flash	Black	Female Socket	3 A	250 V	Gold	Push-Pull	Gold
