G800LR30 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

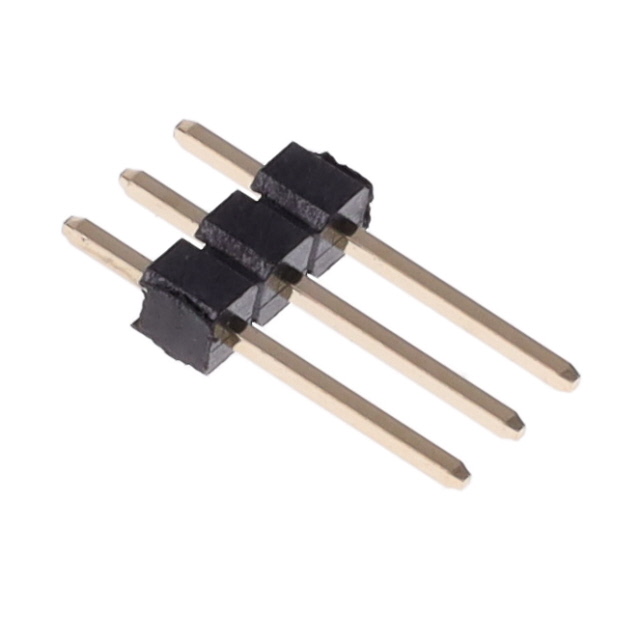

PIN HEADER 2.54MM PITCH STR DIP,
| Part | Number of Rows [custom] | Insulation Material | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Contact Type | Shrouding | Connector Type | Contact Finish - Mating | Insulation Color | Number of Positions Loaded | Insulation Height | Insulation Height | Number of Rows | Contact Finish Thickness - Mating | Material Flammability Rating | Fastening Type | Current Rating (Amps) | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 2 | Liquid Crystal Polymer (LCP) Thermoplastic | Square | 105 ░C | -25 °C | Copper Alloy | 0.1 " | 2.54 mm | Gold | 8.08 mm | 0.318 in | 0.125 in | 3.18 mm | Male Pin | Unshrouded | Header | Gold | Black | All | 0.1 in | 2.54 mm | 1 | Flash | UL94 V-0 | Push-Pull | 3 A | Solder | Through Hole |
