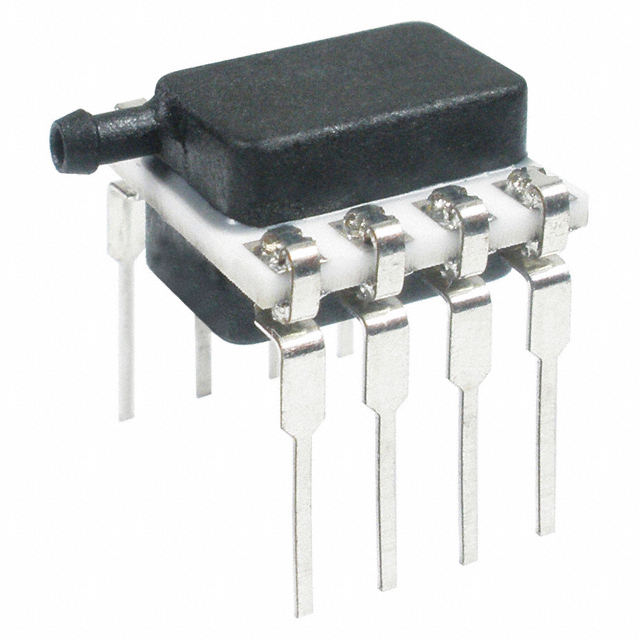

SSCDRNN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 2.32PSID 0.08" 4.5V 8DIP

Part	Package / Case	Package / Case	Port Size [x]	Port Size	Port Size [x]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Features	Termination Style	Port Style	Output Type	Supplier Device Package	Mounting Type	Pressure Type	Accuracy	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions SSCDRNN160MDAA5	0.524 " 13.3 mm	8-DIP	1.93 mm	Male	0.08 "	85 °C	-40 °C	16 kPa	2.32 PSI	Amplified Output Temperature Compensated	PC Pin	Barbed	Analog Voltage	8-DIP	Through Hole	Differential	0.25 %	Board Mount	4.75 V	5.25 V	0.5 V	4.5 V	20.31 PSI	140 kPa
Honeywell Sensing and Productivity Solutions SSCDRNN025MGAA5	0.524 " 13.3 mm	8-DIP	1.93 mm	Male	0.08 "	85 °C	-40 °C	2.5 kPa	0.36 PSI	Amplified Output Temperature Compensated	PC Pin	Barbed	Analog Voltage	8-DIP	Through Hole	Vented Gauge	0.25 %	Board Mount	4.95 V	5.05 V	0.5 V	4.5 V			10.88 PSI	75 kPa
Honeywell Sensing and Productivity Solutions SSCDRNN015PA2A3	0.524 " 13.3 mm	8-DIP	1.93 mm	Male	0.08 "	85 °C	-40 °C			Amplified Output Temperature Compensated	PC Pin	Barbed	I2C	8-DIP	Through Hole		0.25 %	Board Mount	3 V	3.6 V					30 PSI	206.84 kPa	12 b	15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions SSCDRNN005PDAA3	0.524 " 13.3 mm	8-DIP	1.93 mm	Male	0.08 "	85 °C	-40 °C	34.47 kPa	5 PSI	Amplified Output Temperature Compensated	PC Pin	Barbed	Analog Voltage	8-DIP	Through Hole	Differential	0.25 %	Board Mount	3 V	3.6 V	0.33 V	2.97 V								±30PSI	±206.84kPa

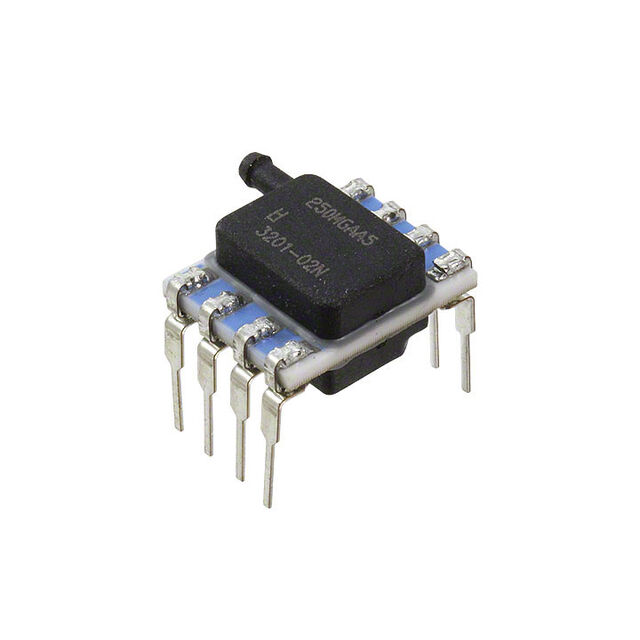

Honeywell Sensing and Productivity Solutions SSCDRNN250MGAA5	0.524 " 13.3 mm	8-DIP	1.93 mm	Male	0.08 "	85 °C	-40 °C	25 kPa	3.63 PSI	Amplified Output Temperature Compensated	PC Pin	Barbed	Analog Voltage	8-DIP	Through Hole	Vented Gauge	0.25 %	Board Mount	4.75 V	5.25 V	0.5 V	4.5 V	20.31 PSI	140 kPa

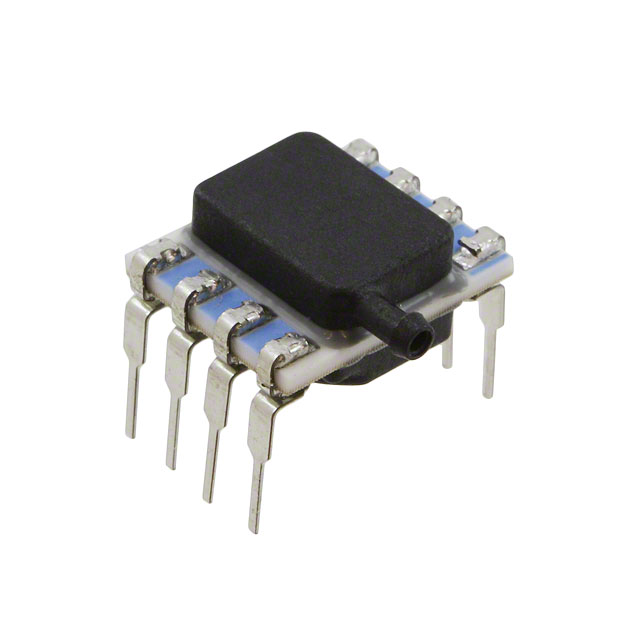

Honeywell Sensing and Productivity Solutions SSCDRNN015PAAA5	0.524 " 13.3 mm	8-DIP	1.93 mm	Male	0.08 "	85 °C	-40 °C			Amplified Output Temperature Compensated	PC Pin	Barbed	Analog Voltage	8-DIP	Through Hole		0.25 %	Board Mount	4.75 V	5.25 V	0.5 V	4.5 V			30 PSI	206.84 kPa		15 PSI	103.42 kPa
