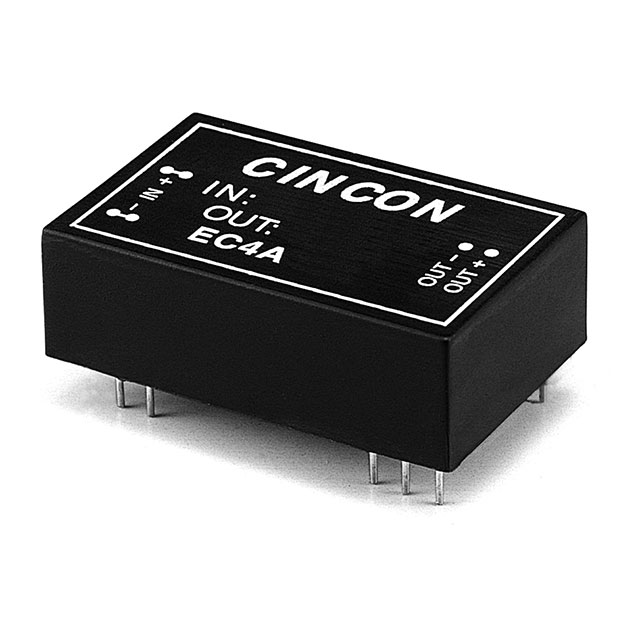

ec4a Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 5 TO 6 WATT, 2:1 INPUT RANGE, 18-36VDC INPUT, 3.3VDC OUTPUT, 1.5KVDC MIN. ISOLATION, BLACK COATED COPPER WITH NON-CONDUCTIVE BASE, DIP-24 1.25X0.80X0.40"

Part	Standard Number	Package / Case	Applications	Number of Outputs	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Features	Power (Watts)	Efficiency	Mounting Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Control Features	Size / Dimension [y]	Size / Dimension [z]
Cincon Electronics Co. LTD EC4A17HM	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	1	CE cURus	71 °C	-25 °C	36 V	1 A	SCP	3.3 W	74 %	Through Hole	1.5 kV	18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3.3 V	Isolated Module
Cincon Electronics Co. LTD EC4A04HM	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	2	CE cURus	71 °C	-25 °C	18 V		SCP	5.5 W	83 %	Through Hole	1.5 kV	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	12 V	Isolated Module	230 mA	230 mA	-12 V
Cincon Electronics Co. LTD EC4A02HMS	60950-1	24-SMD Module 18 Leads	ITE (Commercial)	1	CE cURus	71 °C	-25 °C	18 V	470 mA	Adjustable Output Remote On/Off	5.64 W		Surface Mount	1.5 kV	9 V	0.8 "	0.45 in	31.8 mm			1.25 in	12 V	Isolated Module				Active High Enable	20.3 mm	11.4 mm
Cincon Electronics Co. LTD EC4A05HM	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	2	CE cURus	71 °C	-25 °C	18 V		SCP	5.7 W	81 %	Through Hole	1.5 kV	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 V	Isolated Module	190 mA	190 mA	-15 V
Cincon Electronics Co. LTD EC4A07HM	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	1	CE cURus	71 °C	-25 °C	18 V	1 A	SCP	3.3 W	72 %	Through Hole	1.5 kV	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3.3 V	Isolated Module
Cincon Electronics Co. LTD EC4A12HM	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	1	CE cURus	71 °C	-25 °C	36 V	470 mA	SCP	5.6 W	84 %	Through Hole	1.5 kV	18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	12 V	Isolated Module
Cincon Electronics Co. LTD EC4A27H	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	1	CE cURus	71 °C	-25 °C	72 V	1 A	SCP	3.3 W	74 %	Through Hole	3000 V	36 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3.3 V	Isolated Module
Cincon Electronics Co. LTD EC4A23H	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	1	CE cURus	71 °C	-25 °C	72 V	400 mA	SCP	6 W	81 %	Through Hole	3000 V	36 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 V	Isolated Module
Cincon Electronics Co. LTD EC4A16HM	60950-1	24-DIP Module 14 Leads	ITE (Commercial)	2	CE cURus	71 °C	-25 °C	36 V		SCP	5 W	80 %	Through Hole	1.5 kV	18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	5 V	Isolated Module		500 mA	-5 V
Cincon Electronics Co. LTD EC4A03HMS	60950-1	24-SMD Module 18 Leads	ITE (Commercial)	1	CE cURus	71 °C	-25 °C	18 V	400 mA	Adjustable Output Remote On/Off	6 W	80 %	Surface Mount	1.5 kV	9 V	0.8 "	0.45 in	31.8 mm			1.25 in	15 V	Isolated Module				Active High Enable	20.3 mm	11.4 mm
