THS103 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC ADC 10BIT PIPELINED 28SOIC
| Part | Configuration | Mounting Type | Number of A/D Converters | Reference Type | Number of Bits [custom] | Supplier Device Package | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Data Interface | Ratio - S/H:ADC | Operating Temperature [Max] | Operating Temperature [Min] | Sampling Rate (Per Second) | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Number of Inputs | Architecture | Input Type | Package / Case | Package / Case [x] | Package / Case [y] | Package / Case | Power (Typ) @ Conditions | Supplied Contents | Input Range | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | ADC PGA S/H | Surface Mount | 1 | External Internal | 10 | 28-SOIC | 3 V | 5.5 V | Parallel | 1:1 | 70 °C | 0 °C | 30M | 3 V | 5.5 V | 1 | Pipelined | Differential Single Ended | 28-SOIC | 0.295 in | 7.5 mm | |||||
 Texas Instruments | ADC PGA S/H | Surface Mount | 1 | External Internal | 10 | 28-TSSOP | 3 V | 5.5 V | Parallel | 1:1 | 85 °C | -40 °C | 30M | 3 V | 5.5 V | 1 | Pipelined | Differential Single Ended | 28-TSSOP | 4.4 mm | 0.173 in | |||||

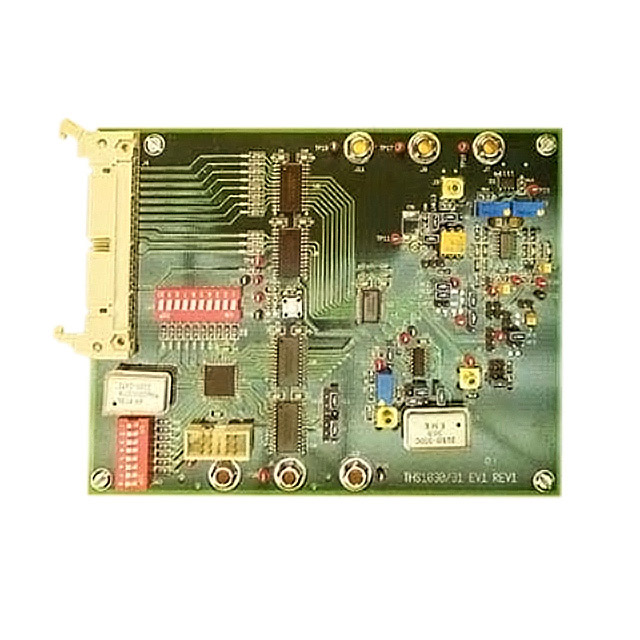

 Texas Instruments | 1 | 10 | Parallel | 30M | 160 mW | Board(s) | 2 Vpp | THS1031 | ||||||||||||||||||
Texas Instruments | S/H-ADC | Surface Mount | 1 | External Internal | 10 | 28-SOIC | 3 V | 5.5 V | Parallel | 1:1 | 70 °C | 0 °C | 30M | 3 V | 5.5 V | 1 | Pipelined | Differential Single Ended | 28-SOIC | 0.295 in | 7.5 mm | |||||
 Texas Instruments | S/H-ADC | Surface Mount | 1 | External Internal | 10 | 28-SOIC | 3 V | 5.5 V | Parallel | 1:1 | 85 °C | -40 °C | 30M | 3 V | 5.5 V | 1 | Pipelined | Differential Single Ended | 28-SOIC | 0.295 in | 7.5 mm | |||||
Texas Instruments | S/H-ADC | Surface Mount | 1 | External Internal | 10 | 28-SOIC | 3 V | 5.5 V | Parallel | 1:1 | 85 °C | -40 °C | 30M | 3 V | 5.5 V | 1 | Pipelined | Differential Single Ended | 28-SOIC | 0.295 in | 7.5 mm | |||||
Texas Instruments | S/H-ADC | Surface Mount | 1 | External Internal | 10 | 28-SOIC | 3 V | 5.5 V | Parallel | 1:1 | 70 °C | 0 °C | 30M | 3 V | 5.5 V | 1 | Pipelined | Differential Single Ended | 28-SOIC | 0.295 in | 7.5 mm | |||||
Texas Instruments | S/H-ADC | Surface Mount | 1 | External Internal | 10 | 28-SOIC | 3 V | 5.5 V | Parallel | 1:1 | 70 °C | 0 °C | 30M | 3 V | 5.5 V | 1 | Pipelined | Differential Single Ended | 28-SOIC | 0.295 in | 7.5 mm |
