A-M12 Series

Catalog

CONN PLUG FMALE 4POS GOLD SCREW

...

Part	Primary Material	Features	Shell Size - Insert	Shielding	Insert Material	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Material	Backshell Material, Plating	Color	Termination	Number of Positions	Current Rating (Amps)	Orientation	Shell Material	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Ingress Protection	Voltage Rating	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Finish - Mating	Mounting Feature
Assmann WSW Components A-M12-04-FAPA-GEB1A	Metal	Backshell Coupling Nut	M12-4	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Free Hanging (In-Line) Right Angle	85 °C	-25 °C	UL94 V-0	Phosphor Bronze	Polyamide (PA66) Nylon 6/6 Glass Filled	Black Silver	Screw	4	4 A	A	Brass	Nickel	0.025 µm	1 µin	Plug Female Sockets	IP67/IP68	250 VAC	0.315 in	0.236 in	8 mm	6 mm	Gold
Assmann WSW Components A-M12-03-MGMA-GHB1A	Metal	Backshell	M12-3	Shielded	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Free Hanging (In-Line)	85 °C	-25 °C	UL94 V-0	Phosphor Copper		Silver			4 A	A	Brass	Nickel	0.025 µm	1 µin	Receptacle Male Pins	IP67/IP68	250 VAC	0.315 in	0.236 in	8 mm	6 mm	Gold
Assmann WSW Components A-M12-08-MAPA-GEB1A	Metal	Backshell	M12-8	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Free Hanging (In-Line) Right Angle	85 °C	-25 °C	UL94 V-0	Brass	Polyamide (PA66) Nylon 6/6 Glass Filled	Black Silver	Screw	8	2 A	A	Brass	Nickel	0.025 µm	1 µin	Receptacle Male Pins	IP67/IP68	30 VAC	0.315 in	0.236 in	8 mm	6 mm	Gold
Assmann WSW Components A-M12-05-MGMB-GTB1A	Metal		M12-5	Unshielded	Epoxy Plastic	Threaded	Panel Mount Through Hole	100 °C	-25 °C	UL94 V-0			Silver	Solder	5	4 A	B	Brass	Nickel	0.025 µm	1 µin	Receptacle Male Pins	IP67/IP68	60 VAC					Gold	Bulkhead - Front Side Nut
Assmann WSW Components A-M12-05-MGMB-GHB2	Metal		M12-5	Unshielded	Epoxy Plastic	Threaded	Panel Mount	85 °C	-25 °C	UL94 V-0			Silver		5	4 A	B	Brass	Nickel	0.025 µm	1 µin	Receptacle Male Pins	IP67/IP68	60 VAC					Gold	Bulkhead - Rear Side Nut

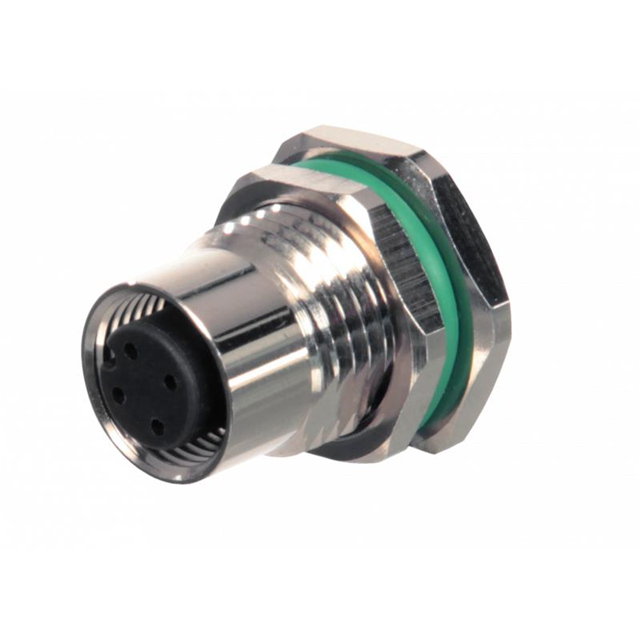

Assmann WSW Components A-M12-03-FGMA-GHB3A	Metal		M12-3	Unshielded	Epoxy Plastic	Threaded	Panel Mount	85 °C	-25 °C	UL94 V-0			Silver			4 A	A	Brass	Nickel	0.025 µm	1 µin	Receptacle Female Sockets	IP67/IP68	250 VAC					Gold	Bulkhead - Front Side Nut

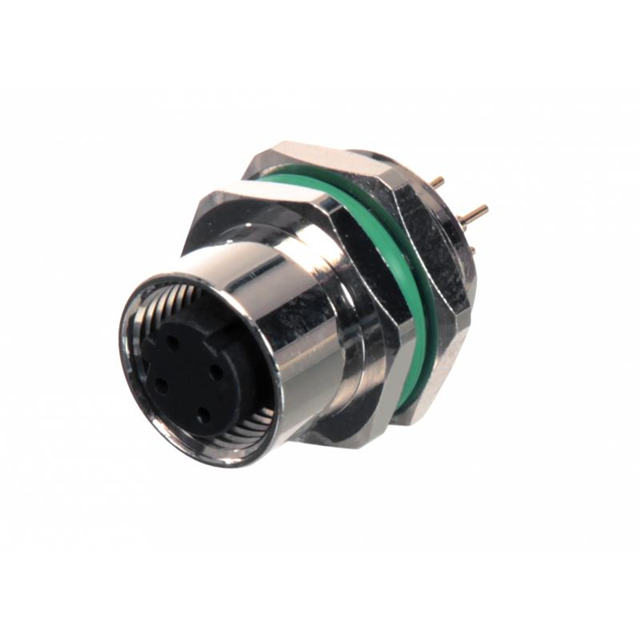

Assmann WSW Components A-M12-04-FGMD-GTB2	Metal		M12-4	Unshielded	Epoxy Plastic	Threaded	Panel Mount Through Hole	85 °C	-25 °C	UL94 V-0			Silver	Solder	4	4 A	D	Brass	Nickel	0.025 µm	1 µin	Receptacle Female Sockets	IP67/IP68	250 VAC					Gold	Bulkhead - Rear Side Nut
Assmann WSW Components A-M12-08-MAMA-GTB1	Metal	Board Guide Board Lock	M12-8	Unshielded	Epoxy Plastic	Threaded	Panel Mount Right Angle Through Hole	85 °C	-25 °C	UL94 V-0			Silver	Solder	8	2 A	A	Brass	Nickel	0.025 µm	1 µin	Receptacle Male Pins	IP67/IP68	30 VAC					Gold	Bulkhead - Front Side Nut
Assmann WSW Components A-M12-08-FGMA-GEB1A	Metal	Backshell Coupling Nut	M12-8	Shielded	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Free Hanging (In-Line)	85 °C	-25 °C	UL94 V-0	Phosphor Bronze	Copper Zinc Nickel	Silver	Screw	8	2 A	A	Copper Zinc	Nickel	0.025 µm	1 µin	Plug Female Sockets	IP67/IP68	30 VAC	0.315 in	0.236 in	8 mm	6 mm	Gold

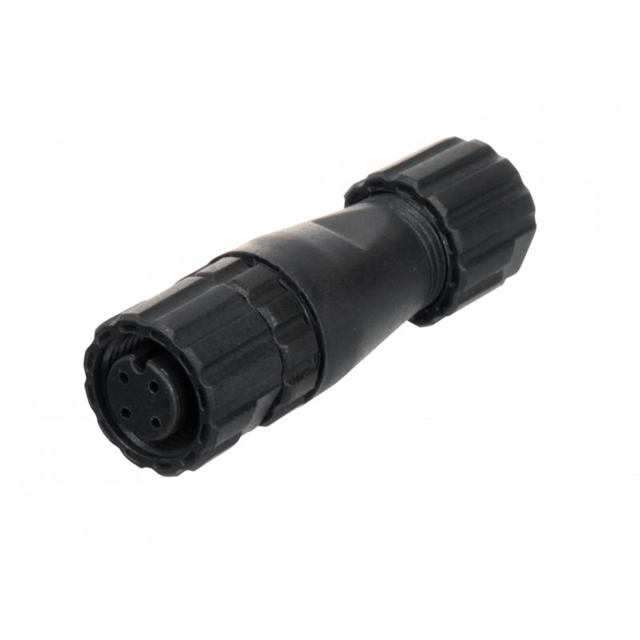

Assmann WSW Components A-M12-03-FGPA-GHB1	Plastic	Backshell Coupling Nut	M12-3	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Free Hanging (In-Line)	85 °C	-20 ░C	UL94 V-0	Brass	Polyamide (PA66) Nylon 6/6 Glass Filled	Black			4 A	A	Glass Filled Nylon 6/6 Polyamide (PA66)		0.025 µm	1 µin	Plug Female Sockets	IP67/IP68	250 VAC	0.236 in	0.157 in	6 mm	4 mm	Gold
