SH-7030 Series

Catalog

ROTARY CODED SW, BCD COMP, 10POS, 5VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Pitch [x]	Pitch	Pitch [x]	Actuator Level	Height Above Board	Height Above Board	Termination Style	Contact Finish	Mounting Type	Washable	Current Rating (Amps)	Voltage Rating	Length [x]	Length	Number of Positions	Actuator Type	Circuit	Body Material	Electrical Life
Nidec Components Corporation SH-7030TA	85 °C	-40 °C	Copper Alloy	0.1 in	Full	2.54 mm	Flush Recessed	3.75 mm	0.148 in	J Lead	Gold	Surface Mount		100 mA	5 V	0.287 "	7.3 mm	10	Rotary for Tool	BCD Complement	Polyphenylene Sulfide (PPS)	10000 Cycles

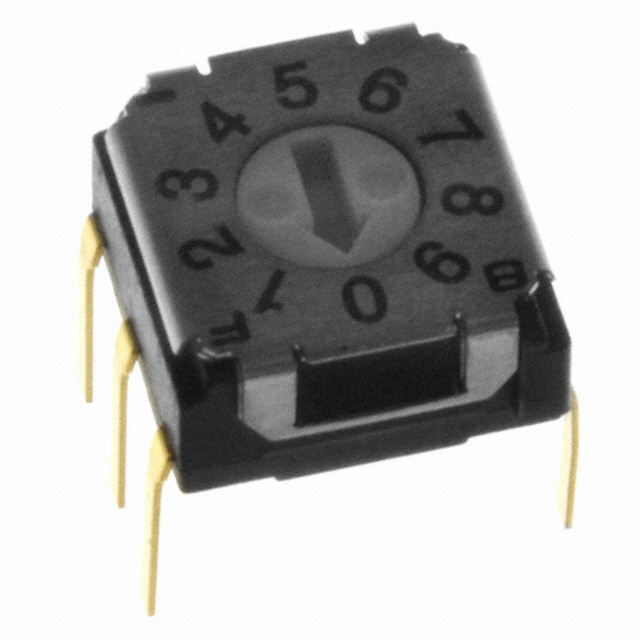

Nidec Components Corporation SH-7030MC	85 °C	-40 °C	Copper Alloy	0.1 in	Full	2.54 mm	Flush Recessed	3.7 mm	0.146 in	PC Pin	Gold	Through Hole		100 mA	5 V	0.287 "	7.3 mm	10	Rotary for Tool	BCD Complement	Polyphenylene Sulfide (PPS)	10000 Cycles
