68705 Series

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Rows	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Insulation Height	Insulation Height	Mounting Type	Fastening Type	Current Rating (Amps)	Termination	Material Flammability Rating	Shrouding	Voltage Rating	Connector Type	Contact Finish - Mating	Number of Positions

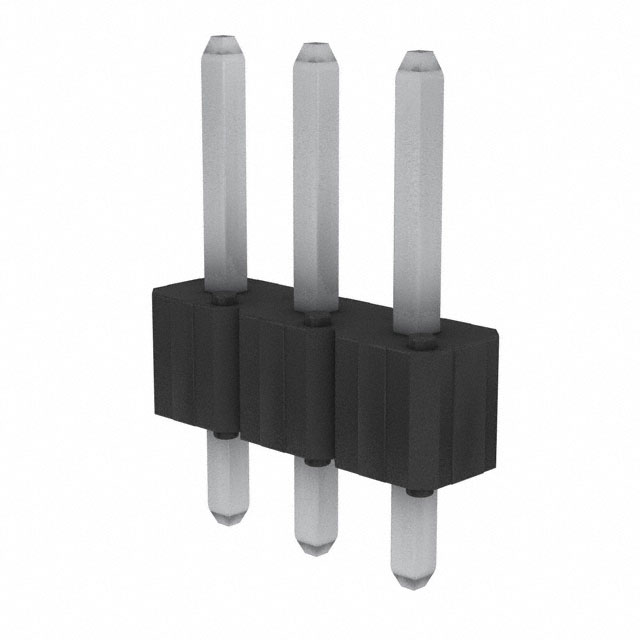

Amphenol ICC (FCI) 68705-403HLF	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	2.54 çm	100 çin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header
Amphenol ICC (FCI) 68705-135HLF	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	0.76 Ám	30 Áin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header	Gold or Gold GXT™	35

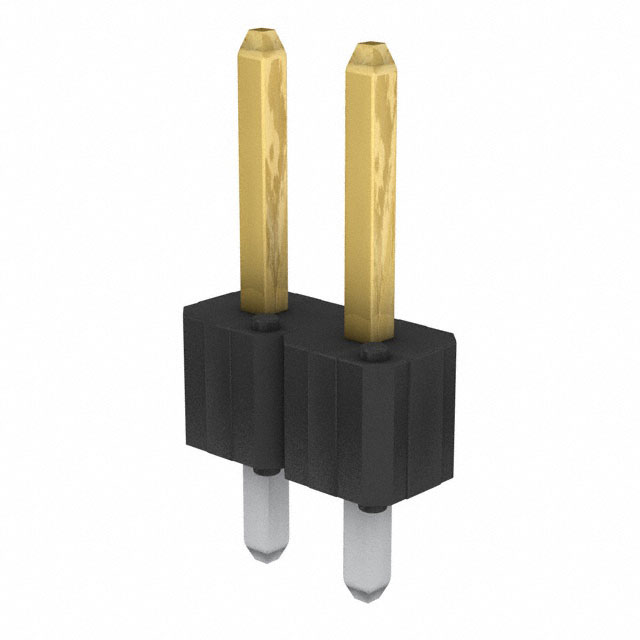

Amphenol ICC (FCI) 68705-102HLF	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	0.76 Ám	30 Áin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header	Gold or Gold GXT™	2
Amphenol ICC (FCI) 68705-536H	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	0.38 µm	15 µin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull		Solder	UL94 V-0	Unshrouded		Header	Gold or Gold GXT™	36
Amphenol ICC (FCI) 68705-136H	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	0.76 Ám	30 Áin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header	Gold or Gold GXT™	36
Amphenol ICC (FCI) 68705-136	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	0.76 Ám	30 Áin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header	Gold or Gold GXT™	36

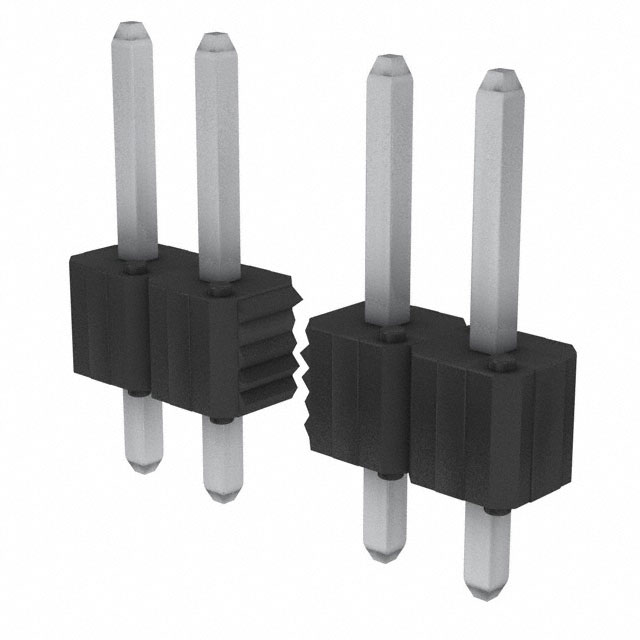

Amphenol ICC (FCI) 68705-430HLF	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	2.54 çm	100 çin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header		30

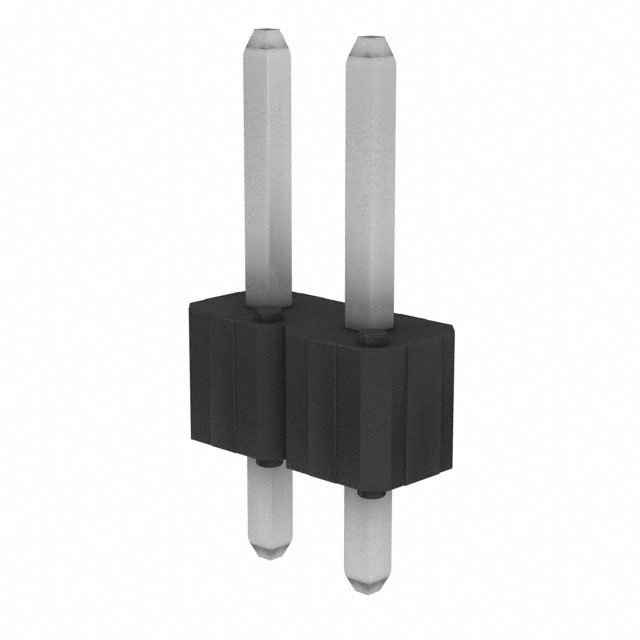

Amphenol ICC (FCI) 68705-402H	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	2.54 çm	100 çin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header		2
Amphenol ICC (FCI) 68705-428HLF	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	2.54 çm	100 çin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header		28
Amphenol ICC (FCI) 68705-125HLF	5.08 mm	0.2 in	Square	2.41 mm	0.095 in	Male Pin	0.76 Ám	30 Áin	10.03 mm	0.395 in	1	Black	0.1 in	2.54 mm	Phosphor Bronze	All	0.1 in	2.54 mm	Through Hole	Push-Pull	5 A	Solder	UL94 V-0	Unshrouded	110 VDC	Header	Gold or Gold GXT™
