1658615 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

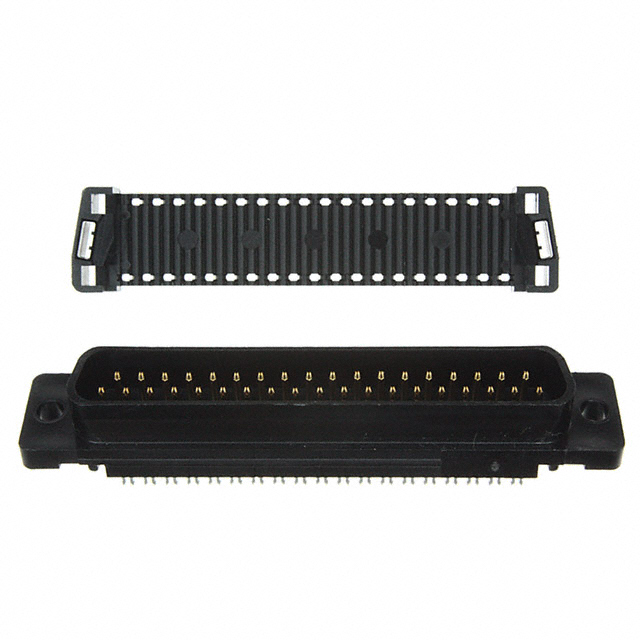

CONN D-SUB PIN 37 POS 1.38MM IDT RA CABLE MOUNT 37 TERMINAL 1 PORT TUBE
| Part | Current Rating (Amps) | Connector Type | Termination | Contact Material | Mounting Type | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Material Flammability Rating | Color | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Features | Contact Type | Shell Size, Connector Layout | Connector Style | Dielectric Material | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1.25 A | Male Pins Plug | IDC Ribbon Cable | Phosphor Bronze | Free Hanging (In-Line) | Gold | 26 AWG | 28 AWG | Solid Stranded | UL94 V-0 | Black | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 37 | Feed Through | Signal | 4 (DC C) | D-Sub | Thermoplastic | 2 |
