VLD2UHHB Series

Catalog

SWITCH ROCKER DPDT 20A 12V

Part	Mechanical Life	Electrical Life	Ingress Protection	Illumination Type, Color	Illumination Voltage (Nominal)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - DC	Color - Actuator/Cap	Switch Function	Circuit	Mounting Type	Actuator Type	Approval Agency	Actuator Marking
Carling Technologies VLD2UHHB-G5CNU-3RH	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V	Black	Mom-Off-Mom	DPDT	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	CSA UL VDE	Low Beam - High Beam Vertical
Carling Technologies VLD2UHHB-CHC8V-100	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V	Black	Mom-Off-Mom	DPDT	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	CSA UL VDE	Master Light - High Beam Vertical
Carling Technologies VLD2UHHB-FAC00-000	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V	Black	Mom-Off-Mom	DPDT	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	CSA UL VDE	No Marking
Carling Technologies VLD2UHHB-GACRK-1RL	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V	Black	Mom-Off-Mom	DPDT	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	CSA UL VDE	High Beam - Low Beam Vertical
Carling Technologies VLD2UHHB-CHCY2-100	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V	Black	Mom-Off-Mom	DPDT	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	CSA UL VDE	Master Light - High Beam Vertical
Carling Technologies VLD2UHHB-A7C00-000	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V	Black	Mom-Off-Mom	DPDT	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	CSA UL VDE	No Marking
Carling Technologies VLD2UHHB-GLC00-000	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V	Black	Mom-Off-Mom	DPDT	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	CSA UL VDE	No Marking

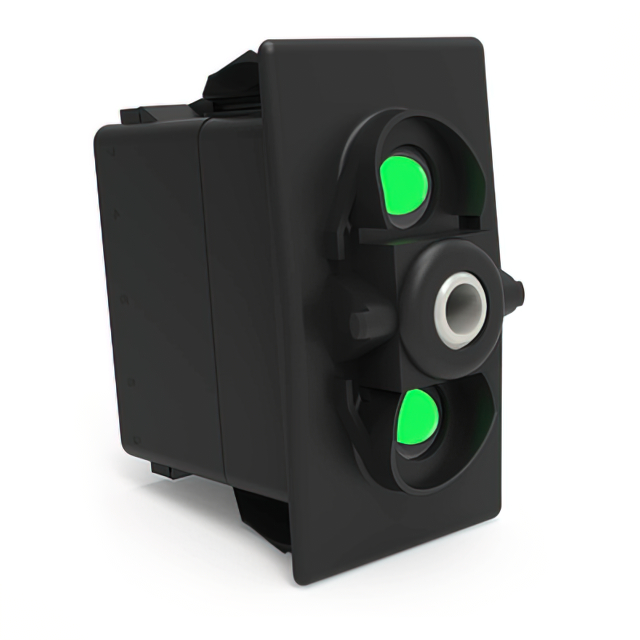

Carling Technologies VLD2UHHB-00000-000	100000 Cycles	100000 Cycles	IP66 IP68	Green/Green LED	12 VDC	20 A	85 °C	-40 C	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	12 V		Mom-Off-Mom	DPDT	Panel Mount Snap-In	Actuator Arm Cap Required Illuminated	CSA UL VDE	Varies by Cap
