742X083 Series
Manufacturer: CTS Resistor Products
Beta
⌘K

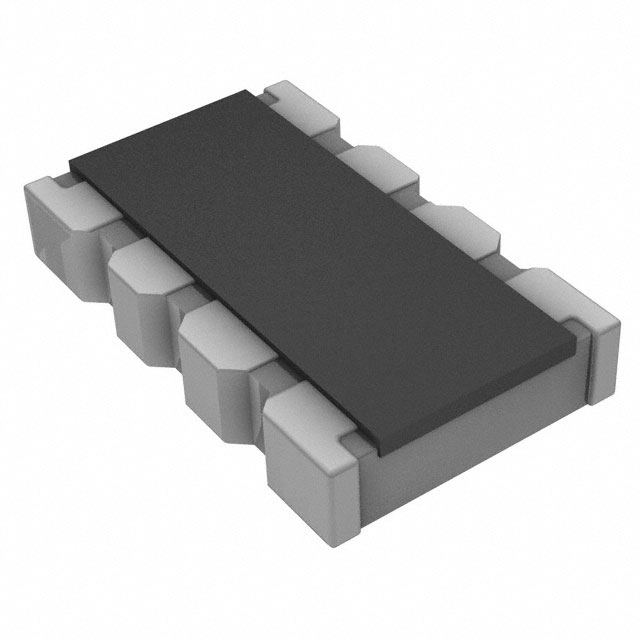

RES ARRAY 4 RES 10K OHM 1206
| Part | Mounting Type | Applications | Circuit Type | Qualification | Number of Pins | Resistance (Ohms) | Temperature Coefficient | Power Per Element | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Number of Resistors | Tolerance | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Resistance (Ohms) [custom] | Resistance (Ohms) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 10k | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 5 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 5 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 4.7 kOhms | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 0 Ohms | Jumper | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 1k | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 5 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 1 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 510 Ohms | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 5 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 2.2 kOhms | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 1 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 82 kOhms | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 5 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 10 Ohms | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 1 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 4.32 kOhms | |||
CTS Resistor Products | Surface Mount | DDR SDRAM DRAM MDDR | Isolated | AEC-Q200 | 8 | 200 ppm/°C | 63 mW | -55 C | 125 °C | Automotive | 4 | 5 % | 1206 (3216 Metric) Convex Long Side Terminals | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | 100 Ohms |
