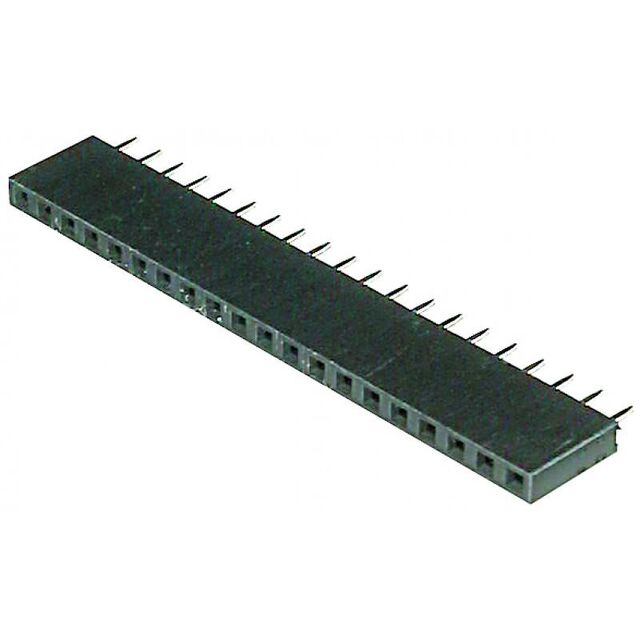

A-BL254-EG Series
Manufacturer: Assmann WSW Components
Beta
⌘K
FEMALE HEADER
| Part | Contact Material | Contact Shape | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish - Mating | Number of Rows | Number of Positions | Fastening Type | Number of Positions Loaded | Features | Mounting Type | Current Rating (Amps) | Insulation Height | Insulation Height | Termination | Insulation Color | Contact Type | Connector Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Phosphor Bronze | Square | Glass Filled Nylon 6T Polyamide (PA6T) | -55 C | 105 ░C | Flash | Gold | 1 | 21 | Push-Pull | All | Pick and Place | Surface Mount | 3 A | 0.197 " | 5 mm | Solder | Black | Female Socket | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | ||||
Assmann WSW Components | Brass | Square | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | Flash | Gold | 1 | 15 | Push-Pull | All | Through Hole | 3 A | Solder | Black | Forked | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | 0.335 in | 8.5 mm | |||
Assmann WSW Components | Phosphor Bronze | Square | Glass Filled Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | 1 | 24 | Push-Pull | All | Pick and Place | Surface Mount | 3 A | 0.197 " | 5 mm | Solder | Black | Female Socket | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | ||||||
Assmann WSW Components | Phosphor Bronze | Square | Glass Filled Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | 1 | 8 | Push-Pull | All | Pick and Place | Surface Mount | 3 A | 0.197 " | 5 mm | Solder | Black | Female Socket | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | ||||||
Assmann WSW Components | Phosphor Bronze | Square | Glass Filled Nylon 6T Polyamide (PA6T) | -55 C | 105 ░C | Flash | Gold | 1 | 14 | Push-Pull | All | Pick and Place | Surface Mount | 3 A | 0.197 " | 5 mm | Solder | Black | Female Socket | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | ||||
Assmann WSW Components | Phosphor Bronze | Square | Glass Filled Nylon 6T Polyamide (PA6T) | -55 C | 105 ░C | Flash | Gold | 1 | 15 | Push-Pull | All | Pick and Place | Surface Mount | 3 A | 0.197 " | 5 mm | Solder | Black | Female Socket | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | ||||
Assmann WSW Components | Brass | Square | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | Flash | Gold | 1 | Push-Pull | All | Through Hole | 3 A | Solder | Black | Forked | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | 0.335 in | 8.5 mm | ||||
Assmann WSW Components | Phosphor Bronze | Square | Glass Filled Nylon 6T Polyamide (PA6T) | -55 C | 105 ░C | Flash | Gold | 1 | 10 | Push-Pull | All | Pick and Place | Surface Mount | 3 A | 0.197 " | 5 mm | Solder | Black | Female Socket | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | ||||
Assmann WSW Components | Phosphor Bronze | Square | Glass Filled Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | 1 | 15 | Push-Pull | All | Pick and Place | Surface Mount | 3 A | 0.197 " | 5 mm | Solder | Black | Female Socket | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | ||||||
 Assmann WSW Components | Brass | Square | Polybutylene Terephthalate (PBT) Glass Filled | -40 C | 105 ░C | 1 | 40 | Push-Pull | All | Through Hole | 3 A | Solder | Black | Forked | Receptacle | UL94 V-0 | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | 0.335 in | 8.5 mm |
