9457MN Series
Manufacturer: Belden Inc.
Beta
⌘K

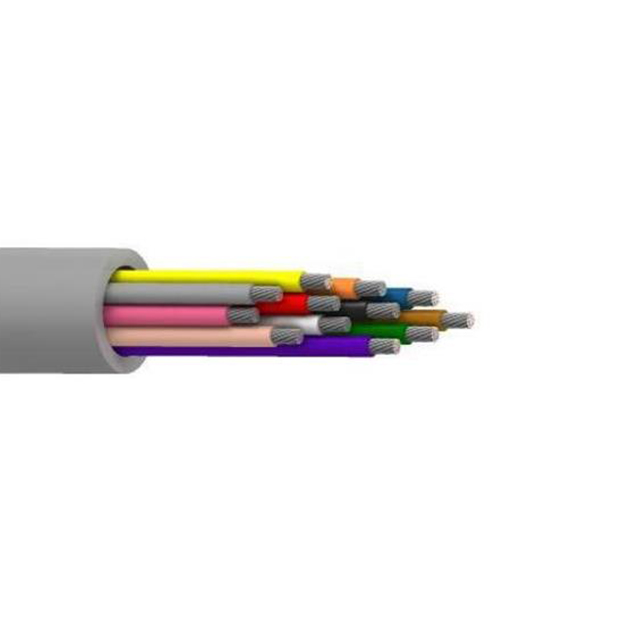

CABLE 12COND 20AWG GRAY
| Part | Number of Conductors | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Voltage | Cable Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 12 | 20 AWG | Copper Tinned | 0.406 mm | 0.016 in | 26 | 34 AWG | 304.8 m | 1000 ft | Audio Control Instrumentation | 80 °C | -20 ░C | Polypropylene (PP) | 300 VDC | Multi-Conductor | Gray | 6.83 mm | 0.269 " | UL Style 2937 | Poly-Vinyl Chloride (PVC) | ||
Belden Inc. | 12 | 20 AWG | Copper Tinned | 0.406 mm | 0.016 in | 26 | 34 AWG | 304.8 m | 1000 ft | Audio Control Instrumentation | 80 °C | -20 ░C | Polypropylene (PP) | 300 VDC | Multi-Conductor | Yellow | 6.83 mm | 0.269 " | UL Style 2937 | Poly-Vinyl Chloride (PVC) | ||
Belden Inc. | 12 | 20 AWG | Copper Tinned | 0.406 mm | 0.016 in | 26 | 34 AWG | Audio Control Instrumentation | 80 °C | -20 ░C | Polypropylene (PP) | 300 VDC | Multi-Conductor | Blue | 6.83 mm | 0.269 " | UL Style 2937 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
