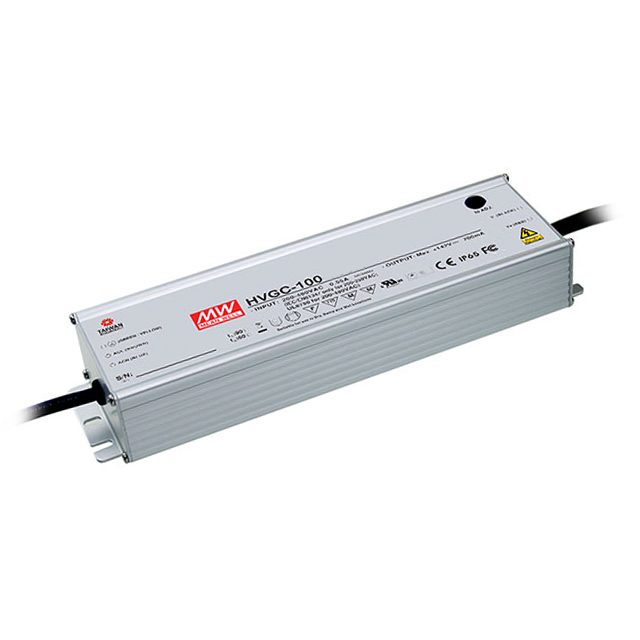

HVGC-100 Series

Catalog

LED DRVR CC AC/DC

Part	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Dimming	Termination Style	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type	Topology	Features	Efficiency	Approval Agency	Ratings	Voltage - Output [Max]	Voltage - Output [Min]

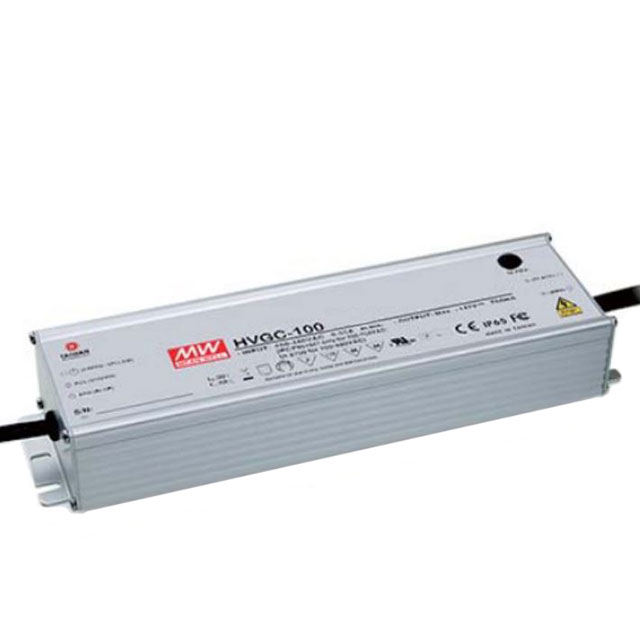

MEAN WELL USA Inc. HVGC-100-350AB	1.003 kW 100 W	Chassis Mount	2.8 A 350 mA	3000 V	90 °C	-40 C	UL 8750	Analog PWM	Wire Leads	1	1.91 in	144 mm	48.5 mm	11.42 in	5.67 in	290 mm	528 VAC	180 VAC	Constant Current	AC DC Converter	OTP OVP SCP	91 %	CB CE cURus EAC ENEC FCC RCM	IP67
MEAN WELL USA Inc. HVGC-100-350A	100 W	Chassis Mount	350 mA	3750 VDC	90 °C	-40 C			Wire Leads	1	1.53 in	68 mm	38.8 mm	8.35 in	2.68 in	212 mm	528 VAC	180 VAC	Constant Current	AC DC Converter	OTP OVP SCP	91 %	CB CE cURus TUV	IP65	285 V	29 V
MEAN WELL USA Inc. HVGC-100-700B	99 W 100 W	Chassis Mount	700 mA	3750 VDC	90 °C	-40 C		Analog PWM	Wire Leads	1	1.53 in	68 mm	38.8 mm	8.35 in	2.68 in	212 mm	528 VAC	180 VAC	Constant Current	AC DC Converter	OTP OVP SCP	91 %	CB CE cURus TUV	IP67	142 V	15 V
