AWH 34A Series

Catalog

CONN HEADER R/A 34POS 2.54MM

Part	Insulation Material	Shrouding	Contact Finish Thickness - Mating	Fastening Type	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Material	Features	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish - Post	Termination	Style	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Number of Positions [custom]	Insulation Height	Insulation Height	Insulation Color	Contact Shape	Number of Positions Loaded

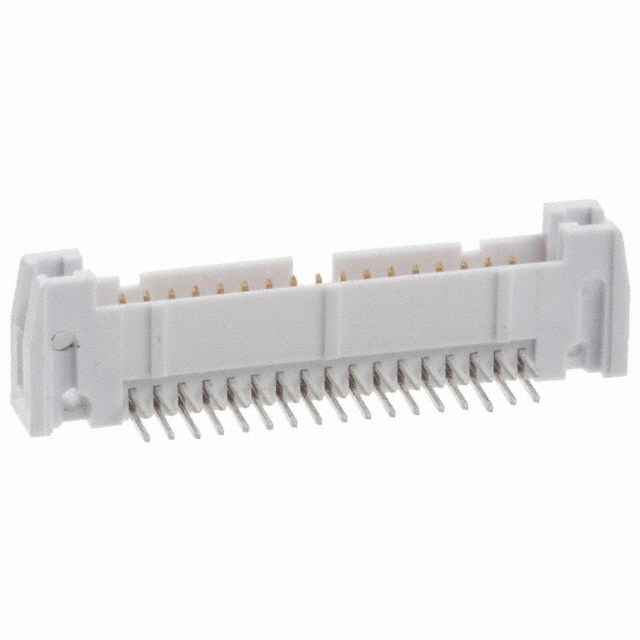

Assmann WSW Components AWH34A-0202-T-R	Polybutylene Terephthalate (PBT) Glass Filled	Shrouded - 4 Wall	Flash	Push-Pull	Right Angle Through Hole	0.1 "	2.54 mm	UL94 V-0	Brass	Keying Slot	Header	Male Pin	-40 C	105 ░C	2	Tin	Solder	Board to Cable/Wire	3.81 mm	0.15 in	Gold	0.1 in	2.54 mm	3 A	34	17 mm	0.669 in	Gray	Square	All

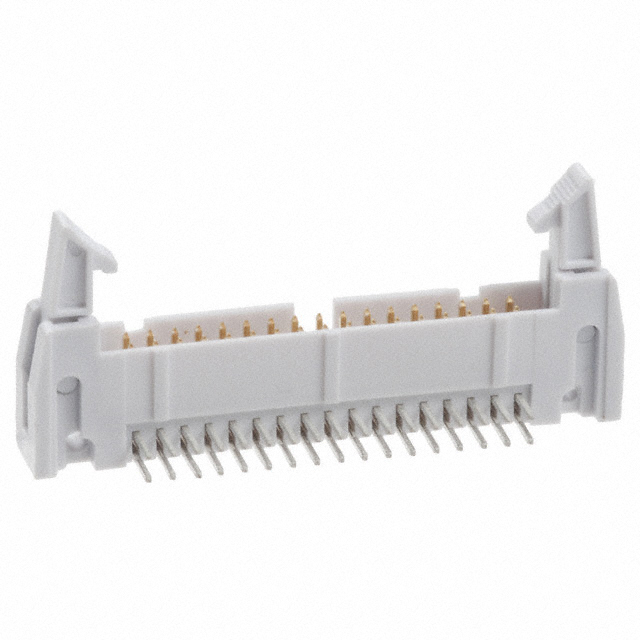

Assmann WSW Components AWH34A-0232-T-R	Polybutylene Terephthalate (PBT) Glass Filled	Shrouded - 4 Wall	Flash	Latch Lock/Eject Hooks Long	Right Angle Through Hole	0.1 "	2.54 mm	UL94 V-0	Brass	Keying Slot	Header	Male Pin	-40 C	105 ░C	2	Tin	Solder	Board to Cable/Wire	3.81 mm	0.15 in	Gold	0.1 in	2.54 mm	3 A	34	17 mm	0.669 in	Gray	Square	All
