748612 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

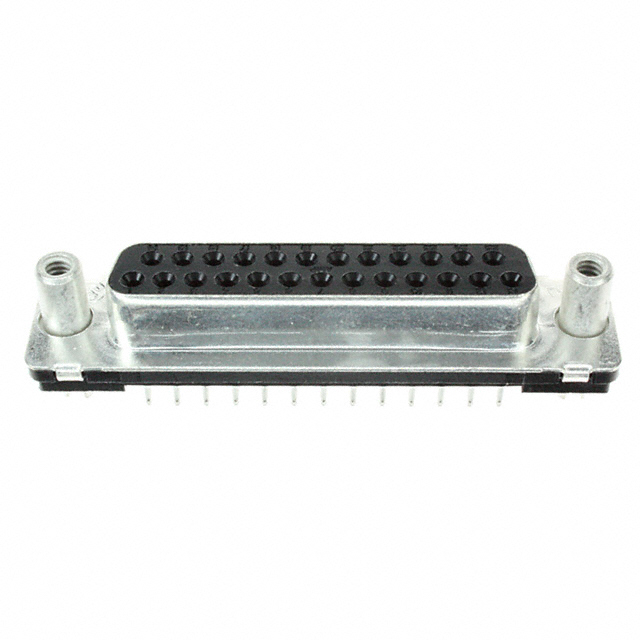

25 RCPT SP/FMS BRDLK ROHS COMPLIANT: NO
| Part | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Material Flammability Rating | Number of Rows [custom] | Contact Type | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Positions | Features | Mounting Type | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 VDC | Black | -55 C | 105 ░C | Phosphor Bronze | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Gold | UL94 V-0 | 2 | Signal | D-Sub | B DB | 3 | 25 | Board Lock | Through Hole | Solder | 6 A |
