TA1A-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH TOGGLE SPST 20A 12V
| Part | Electrical Life | Illumination | Termination Style | Bushing Thread | Voltage Rating - DC | Current Rating (Amps) | Mounting Type | Switch Function | Illumination Voltage (Nominal) | Actuator Type | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

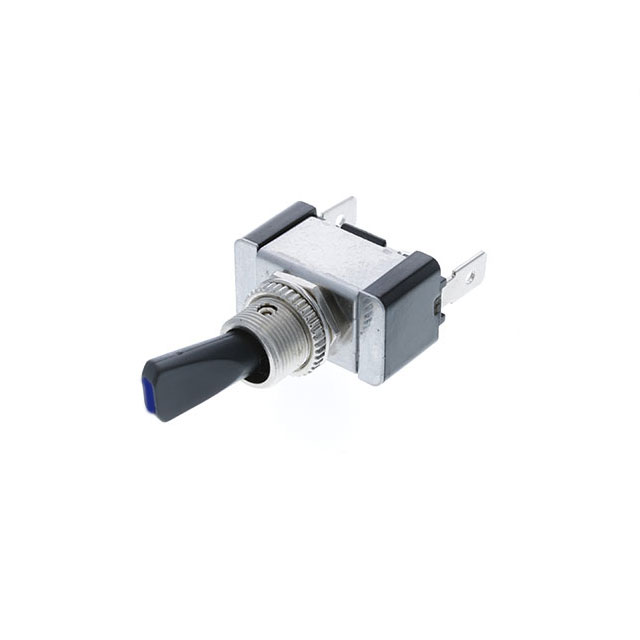

 Switch Components | 6000 Cycles | Illuminated | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | 12 V | 20 A | Panel Mount | On-Off | 12 VDC | Flatted | Blue LED | 12.2 mm Dia | SPST | 85 °C | -20 ░C | 16 mm |

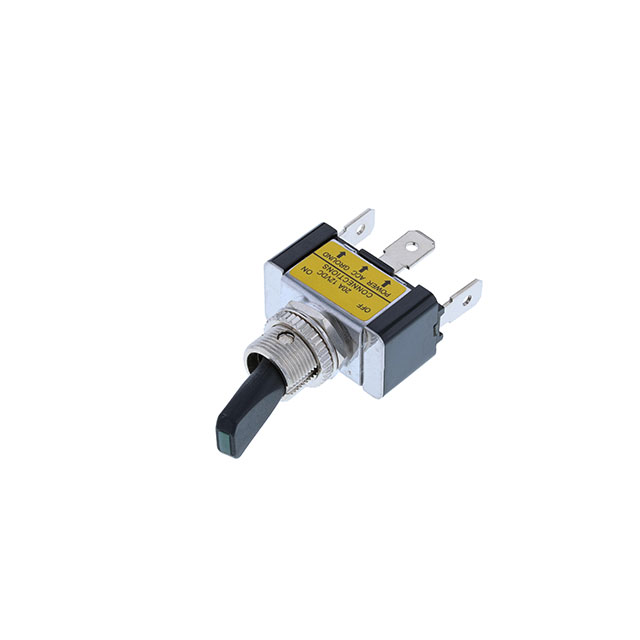

 Switch Components | 6000 Cycles | Illuminated | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | 12 V | 20 A | Panel Mount | On-Off | 12 VDC | Flatted | Green LED | 12.2 mm Dia | SPST | 85 °C | -20 ░C | 16 mm |

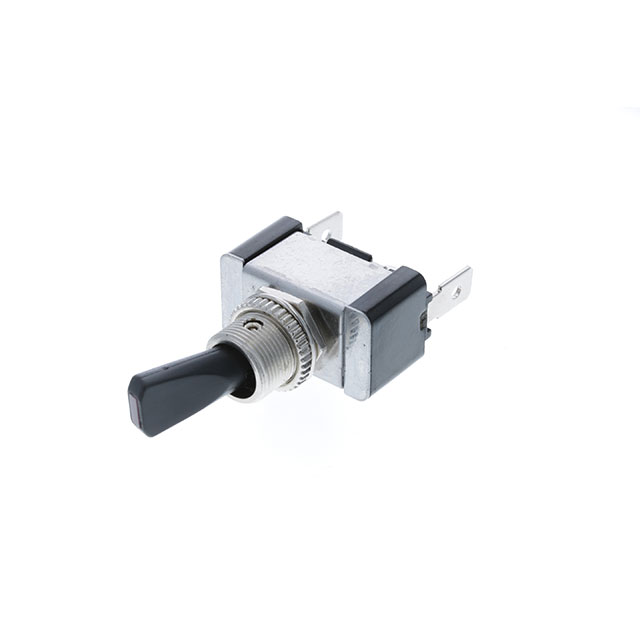

 Switch Components | 6000 Cycles | Illuminated | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | 12 V | 20 A | Panel Mount | On-Off | 12 VDC | Flatted | LED Red | 12.2 mm Dia | SPST | 85 °C | -20 ░C | 16 mm |
