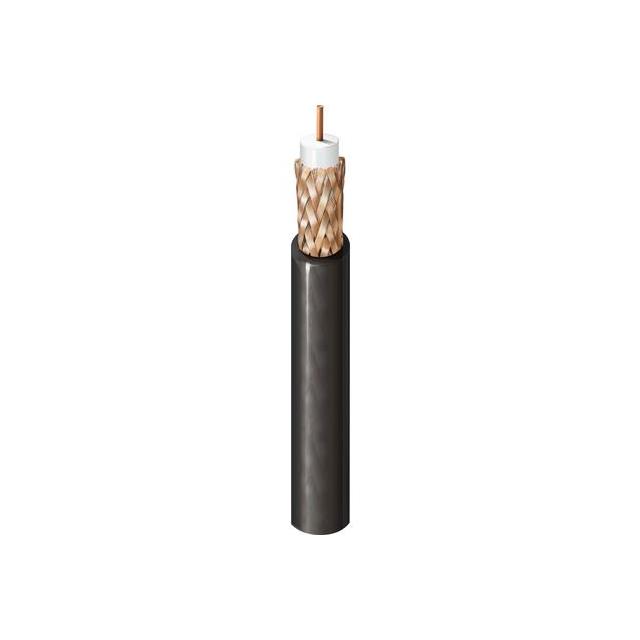

7986LC Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX RG-59 PLENUM COAX
| Part | VoP, Velocity of Propagation | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Cable Type | Shield Type | Cable Group | Impedance | Length [x] | Length [x] | Jacket (Insulation) Material | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 84 | 95 % | -40 C | 200 °C | Copper Bare | 3.43 mm | 0.135 in | Foam Fluorinated Ethylene Propylene (FFEP) | Copper Bare | 0.193 in | 4.9 mm | Black | 20 AWG | Coaxial - Plenum | Braid | RG-59 | 75 Ohms | 304.8 m | 1000 ft | Fluorinated Ethylene-Propylene (FEP) | Solid |
