PVT4 Series

Manufacturer: E-Switch

Catalog

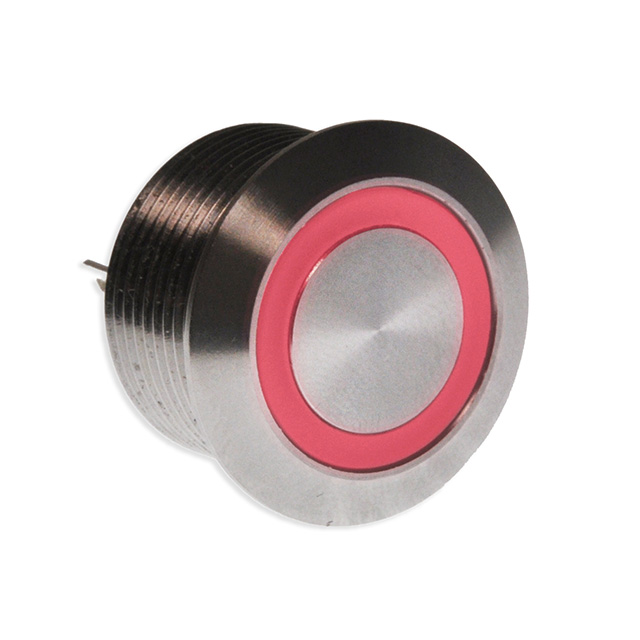

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 0.05A/24VDC; IP65; RED

Part	Electrical Life	Mechanical Life	Actuator Marking	Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Features	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Voltage Rating - DC	Switch Function	Termination Style	Mounting Type	Ingress Protection	Color - Actuator/Cap	Illumination Type, Color
E-Switch PVT4FW4SS311	500000 Cycles	500000 Cycles	No Marking	Anti-Vandal Illuminated	55 °C	-25 °C	Button Flush Round	Stainless Steel	1.8 VDC	19 mm	50 mA	SPST-NO	24 V	Off-Mom	Wire Leads	Panel Mount Front	IP65 - Dust Tight Water Resistant	Silver	LED Red

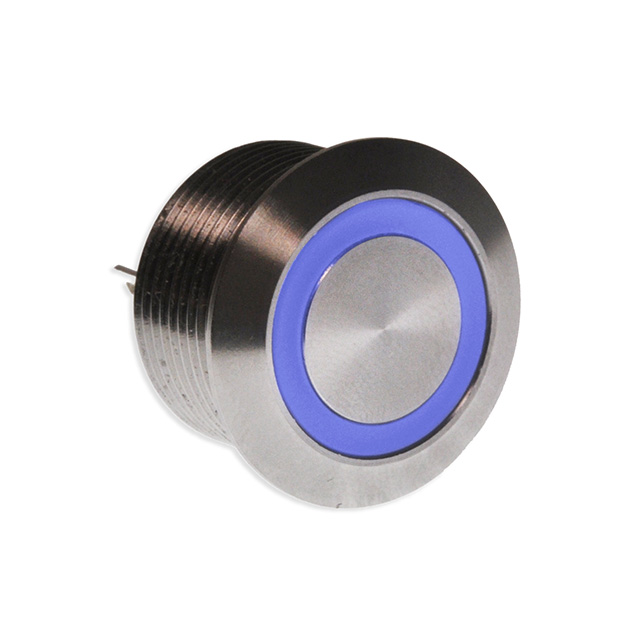

E-Switch PVT4FW4SS341	500000 Cycles	500000 Cycles	No Marking	Anti-Vandal Illuminated	55 °C	-25 °C	Button Flush Round	Stainless Steel	2.8 VDC	19 mm	50 mA	SPST-NO	24 V	Off-Mom	Wire Leads	Panel Mount Front	IP65 - Dust Tight Water Resistant	Silver	Blue LED
E-Switch PVT4FS4SS311	500000 Cycles	500000 Cycles	No Marking	Anti-Vandal Illuminated	55 °C	-25 °C	Button Flush Round	Stainless Steel	1.8 VDC	19 mm	50 mA	SPST-NO	24 V	Off-Mom	Solder Lug	Panel Mount Front	IP65 - Dust Tight Water Resistant	Silver	LED Red

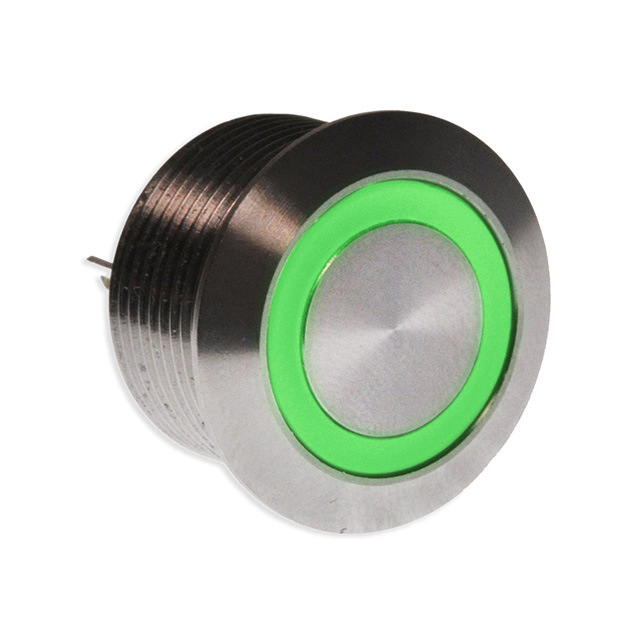

E-Switch PVT4FW4SS331	500000 Cycles	500000 Cycles	No Marking	Anti-Vandal Illuminated	55 °C	-25 °C	Button Flush Round	Stainless Steel	2.8 VDC	19 mm	50 mA	SPST-NO	24 V	Off-Mom	Wire Leads	Panel Mount Front	IP65 - Dust Tight Water Resistant	Silver	Green LED
E-Switch PVT4FS4SS344	500000 Cycles	500000 Cycles	No Marking	Anti-Vandal Illuminated	55 °C	-25 °C	Button Flush Round	Stainless Steel	12 VDC	19 mm	50 mA	SPST-NO	24 V	Off-Mom	Solder Lug	Panel Mount Front	IP65 - Dust Tight Water Resistant	Silver	Blue LED
E-Switch PVT4FS4SS341	500000 Cycles	500000 Cycles	No Marking	Anti-Vandal Illuminated	55 °C	-25 °C	Button Flush Round	Stainless Steel	2.8 VDC	19 mm	50 mA	SPST-NO	24 V	Off-Mom	Solder Lug	Panel Mount Front	IP65 - Dust Tight Water Resistant	Silver	Blue LED
E-Switch PVT4FS4SS314	500000 Cycles	500000 Cycles	No Marking	Anti-Vandal Illuminated	55 °C	-25 °C	Button Flush Round	Stainless Steel	12 VDC	19 mm	50 mA	SPST-NO	24 V	Off-Mom	Solder Lug	Panel Mount Front	IP65 - Dust Tight Water Resistant	Silver	LED Red
