W25M512 Series

Catalog

IC FLASH 512MBIT SPI 24TFBGA

Part	Technology	Clock Frequency	Memory Size	Package Length	Package Name	Package Width	Memory Type	Memory Format	Memory Interface (Type)	Package / Case	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Depth	Memory Width	Operating Temperature (Max)	Operating Temperature (Min)	Access Time	Write Cycle Time - Word	Write Cycle Time - Page

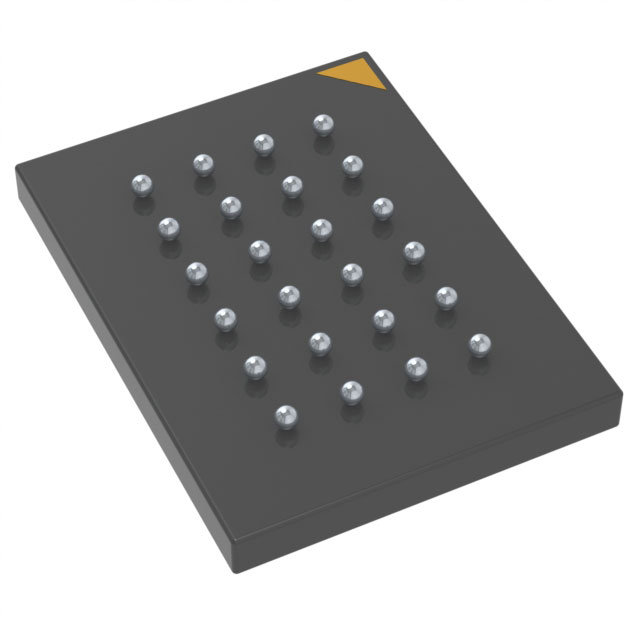

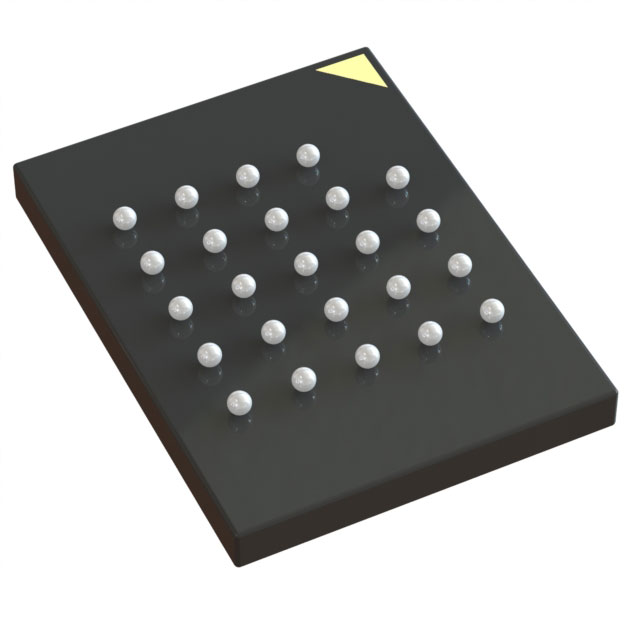

Winbond Electronics W25M512JVBIQ TR	FLASH - NOR	104 MHz	512 Mb	6 mm	24-TFBGA	8 mm	Non-Volatile	FLASH	SPI	24-TBGA	Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C
Winbond Electronics W25M512JWCIQ	FLASH - NOR	104 MHz	512 Mb	6 mm	24-TFBGA	8 mm	Non-Volatile	FLASH	SPI	24-TBGA	Surface Mount	1.95 V	1.7 V	64 M	8 bit	85 °C	-40 °C	7 ns	5 ms	5 ms
Winbond Electronics W25M512JVCIQ TR	FLASH - NOR	104 MHz	512 Mb	6 mm	24-TFBGA	8 mm	Non-Volatile	FLASH	SPI	24-TBGA	Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C
Winbond Electronics W25M512JVBIQ	FLASH - NOR	104 MHz	512 Mb	6 mm	24-TFBGA	8 mm	Non-Volatile	FLASH	SPI	24-TBGA	Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C

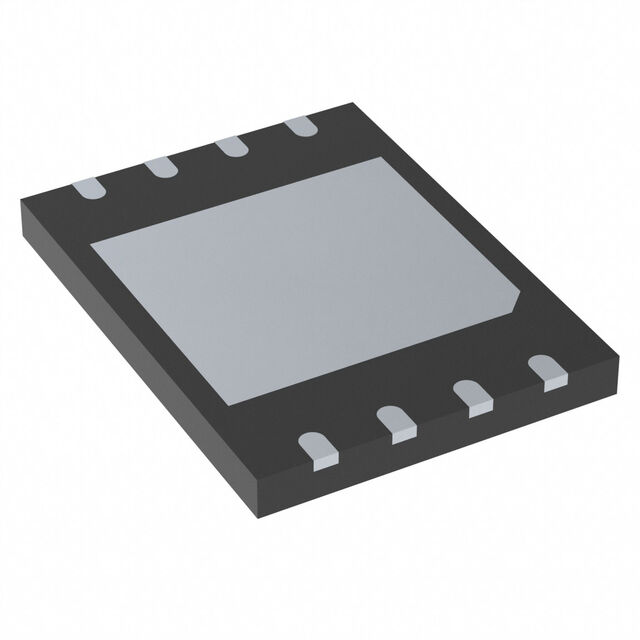

Winbond Electronics W25M512JVEIM	FLASH - NOR	104 MHz	512 Mb	8 mm	8-WSON	6 mm	Non-Volatile	FLASH	SPI - Quad I/O	8-WDFN Exposed Pad	Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C	7 ns	3 ms	3 ms
Winbond Electronics W25M512JVCIQ	FLASH - NOR	104 MHz	512 Mb	6 mm	24-TFBGA	8 mm	Non-Volatile	FLASH	SPI	24-TBGA	Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C

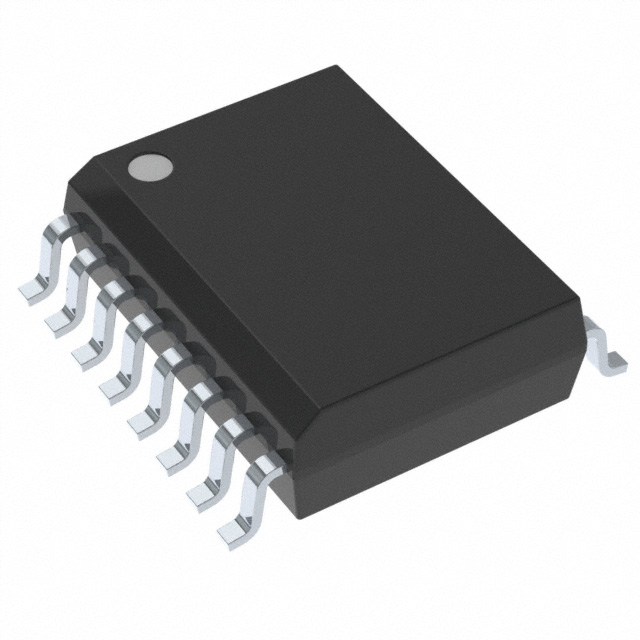

Winbond Electronics W25M512JVFIQ	FLASH - NOR	104 MHz	512 Mb	0.295 in	16-SOIC	7.5 mm	Non-Volatile	FLASH	SPI		Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C
Winbond Electronics W25M512JVFIQ TR	FLASH - NOR	104 MHz	512 Mb	0.295 in	16-SOIC	7.5 mm	Non-Volatile	FLASH	SPI		Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C
Winbond Electronics W25M512JVEIQ	FLASH - NOR	104 MHz	512 Mb	8 mm	8-WSON	6 mm	Non-Volatile	FLASH	SPI	8-WDFN Exposed Pad	Surface Mount	3.6 V	2.7 V	64 M	8 bit	85 °C	-40 °C
Winbond Electronics W25M512JWBIQ	FLASH - NOR	104 MHz	512 Mb	6 mm	24-TFBGA	8 mm	Non-Volatile	FLASH	SPI	24-TBGA	Surface Mount	1.95 V	1.7 V	64 M	8 bit	85 °C	-40 °C	7 ns	5 ms	5 ms
