HVG-150 Series

Catalog

LED DRVR CC/CV AC/DC 11-20V 7.5A

Part	Mounting Type	Features	Number of Outputs	Efficiency	Ratings	Power (Watts)	Topology	Current - Output (Max) [Max]	Dimming	Termination Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Type	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Max) [Max]	Current - Output (Max)	Approval Agency	Voltage - Output
MEAN WELL USA Inc. HVG-150-20B	Chassis Mount	OCP OTP OVP SCP	1	90.5 %	IP67	150 W	AC DC Converter	7.5 A	Analog PWM	Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	85 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	11 V	20 V	528 VAC
MEAN WELL USA Inc. HVG-150-48A	Chassis Mount	OCP OTP OVP SCP	1	91.5 %	IP65	150 W	AC DC Converter	3.13 A		Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	85 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	43 V	53 V	528 VAC
MEAN WELL USA Inc. HVG-150-30B	Chassis Mount	OCP OTP OVP SCP	1	91 %	IP67	150 W	AC DC Converter		Analog PWM	Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	85 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	16.5 V	30 VDC	528 VAC	5 A
MEAN WELL USA Inc. HVG-150-12B	Chassis Mount	OCP OTP OVP SCP	1	87 %	IP67	120 W	AC DC Converter	10 A	Analog PWM	Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	75 ░C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	7.2 V	12 V	528 VAC
MEAN WELL USA Inc. HVG-150-24A	Chassis Mount	OCP OTP OVP SCP	1	91 %	IP65	150 W	AC DC Converter	6.25 A		Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	85 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	22 V	27 V	528 VAC

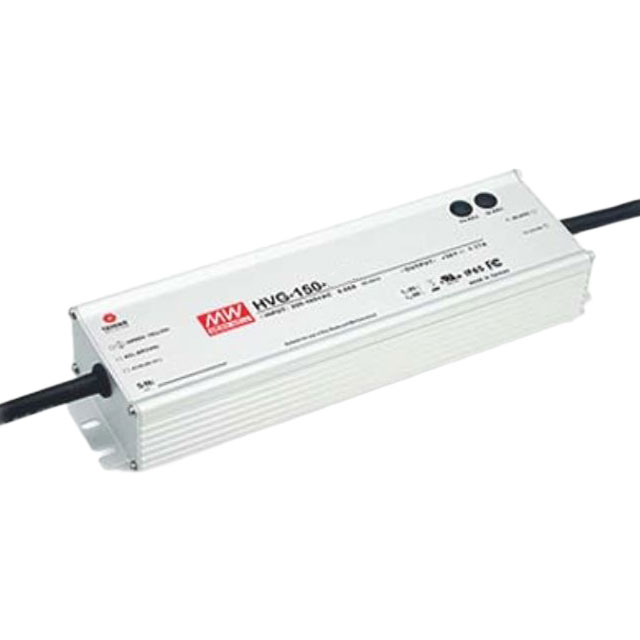

MEAN WELL USA Inc. HVG-150-54AB	Chassis Mount	OCP OTP OVP SCP	1	91.5 %	IP65	150 W	AC DC Converter	2.78 A	Analog PWM	Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	85 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage			528 VAC		cURus EAC FCC	54 V
MEAN WELL USA Inc. HVG-150-12A	Chassis Mount	OCP OTP OVP SCP	1	87 %	IP65	120 W	AC DC Converter	10 A		Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	75 ░C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	10.8 V	13.5 V	528 VAC
MEAN WELL USA Inc. HVG-150-24B	Chassis Mount	OCP OTP OVP SCP	1	91 %	IP67	150 W	AC DC Converter	6.25 A	Analog PWM	Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	85 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	13.2 V	24 V	528 VAC
MEAN WELL USA Inc. HVG-150-15A	Chassis Mount	OCP OTP OVP SCP	1	89 %	IP65	150 W	AC DC Converter	10 A		Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	80 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	13.5 V	17 V	528 VAC
MEAN WELL USA Inc. HVG-150-36B	Chassis Mount	OCP OTP OVP SCP	1	91 %	IP67	150 W	AC DC Converter	4.17 A	Analog PWM	Wire Leads	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	85 °C	-40 C	3750 VDC	180 VAC	Constant Current Voltage	19.8 V	36 V	528 VAC
