BC070 Series

Manufacturer: GCT

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 40W, 1.0MM PITCH SOCKET, SIL, SMT, VERT, D/ENT, B1,GF, TUBE

Part	Termination	Number of Positions	Material Flammability Rating	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Pitch - Mating	Contact Type	Fastening Type	Insulation Color	Style	Current Rating (Per Contact)	Number of Positions Loaded	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Insulation Material	Contact Shape	Contact Material	Features
GCT BC070-40-A-1-L-D	Solder	40	UL94 V-0	250 V	DC	Flash	Gold	Gold	1	-40 °C	105 °C	Bottom or Top Entry Receptacle	0.039 in	Female Socket	Push-Pull	Black	Board	1 A	All	0.089 in	Surface Mount	Flash	Flash	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze
GCT BC070-04-A-1-L-C	Solder	4	UL94 V-0	250 V		Flash	Gold	Gold	1	-40 °C	105 °C	Bottom or Top Entry Receptacle	0.039 in	Female Socket	Push-Pull	Black	Board	1 A	All	0.089 in	Surface Mount	Flash	Flash	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze	Pick and Place
GCT BC070-30-A-1-L-D	Solder	30	UL94 V-0	250 V	DC	Flash	Gold	Gold	1	-40 °C	105 °C	Bottom or Top Entry Receptacle	0.039 in	Female Socket	Push-Pull	Black	Board	1 A	All	0.089 in	Surface Mount

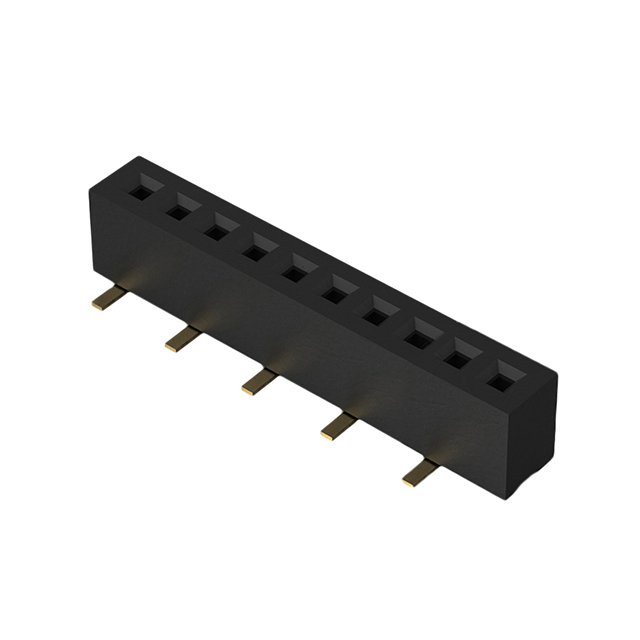

GCT BC070-10-A-1-L-C	Solder	10	UL94 V-0	250 V		Flash	Gold	Gold	1	-40 °C	105 °C	Bottom or Top Entry Receptacle	0.039 in	Female Socket	Push-Pull	Black	Board	1 A	All	0.089 in	Surface Mount	Flash	Flash	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze	Pick and Place
