BZ-7RL Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Features	Voltage Rating - DC	Current Rating (Amps)	Pretravel	Pretravel	Mechanical Life	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Operating Force [Max]	Operating Force [Min]	Operating Position	Operating Position	Voltage Rating - AC	Actuator Type	Differential Travel	Differential Travel	Termination Style	Circuit	Overtravel	Overtravel	Release Force	Operating Force	Ingress Protection

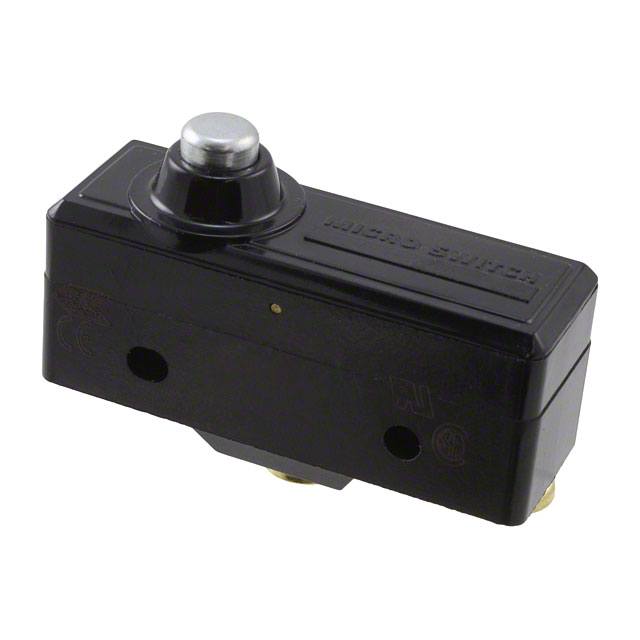

Honeywell Sensing and Productivity Solutions BZ-7RD-A2	Steel Plunger	125 VDC	15 A 500 mA	0.03 in	0.8 mm	20000000 Cycles	Chassis Mount	85 °C	-55 °C	On-Mom	794 gf	624 gf	21.2 mm	0.835 in	125 V	Round (Pin Plunger)	0.007 in	0.18 mm	Screw Terminal	SPDT	1.6 mm	0.062 in	113 gf

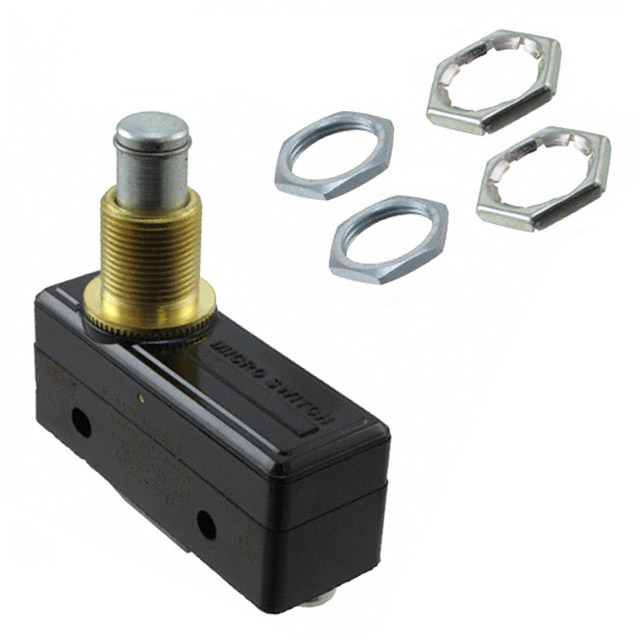

Honeywell Sensing and Productivity Solutions BZ-7RQ1T	Steel Plunger	125 VDC	15 A 500 mA	0.03 in	0.8 mm	20000000 Cycles		85 °C	-55 °C	On-Mom	794 gf	624 gf	21.8 mm	0.859 in	125 V	Overtravel Plunger	0.005 in	0.13 mm	Screw Terminal	SPDT	5.6 mm	0.219 in	113 gf
Honeywell Sensing and Productivity Solutions BZ-7RST	Steel Plunger	125 VDC	15 A 500 mA	0.03 in	0.8 mm	20000000 Cycles	Chassis Mount	85 °C	-55 °C	On-Mom	794 gf	624 gf	28.2 mm	1.11 in	125 V	Overtravel Plunger	0.005 in	0.13 mm	Screw Terminal	SPDT	1.5 mm	0.06 "	113 gf
Honeywell Sensing and Productivity Solutions BZ-7RW855T-S		125 VDC	15 A 500 mA			20000000 Cycles	Chassis Mount	85 °C	-55 °C	On-Mom			19.1 mm	0.75 "	125 V	Lever Straight	0.125 in	3.2 mm	Screw Terminal	SPDT	5.6 mm	0.219 in	14 gf	113 gf	Splash Proof
Honeywell Sensing and Productivity Solutions BZ-7R396-P5

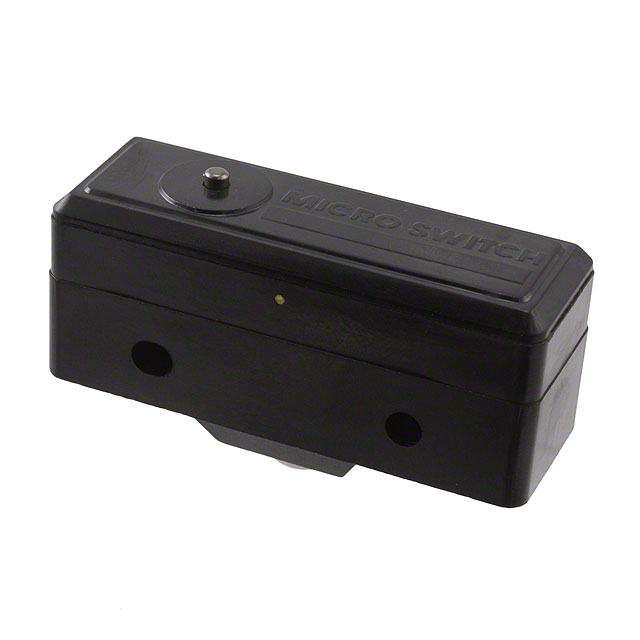

Honeywell Sensing and Productivity Solutions BZ-7RT04		125 VDC	15 A 500 mA	0.03 in	0.8 mm	20000000 Cycles	Chassis Mount	85 °C	-55 °C	On-Mom	794 gf	624 gf	15.9 mm	0.625 in	125 V	Round (Pin Plunger)	0.005 in	0.13 mm	Screw Terminal	SPDT	0.13 mm	0.005 in	170 gf
Honeywell Sensing and Productivity Solutions BZ-7RW82137T-S

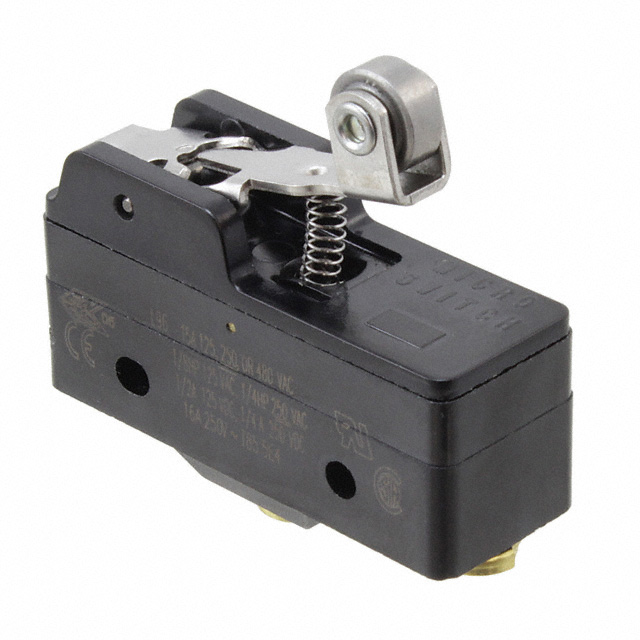

Honeywell Sensing and Productivity Solutions BZ-7RW822-A2		125 VDC	15 A 500 mA			20000000 Cycles	Chassis Mount	85 °C	-55 °C	On-Mom			30.2 mm	1.188 in	125 V	Lever Roller	0.05 in	1.3 mm	Screw Terminal	SPDT	2.4 mm	0.094 in		198 gf
Honeywell Sensing and Productivity Solutions BZ-7RL36872T
Honeywell Sensing and Productivity Solutions BZ-7RL127
