32S102 Series
Manufacturer: Rosenberger
Beta
⌘K

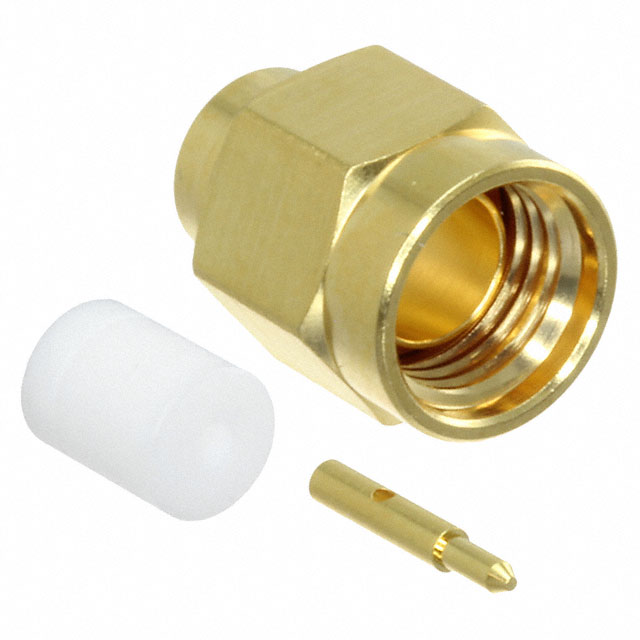

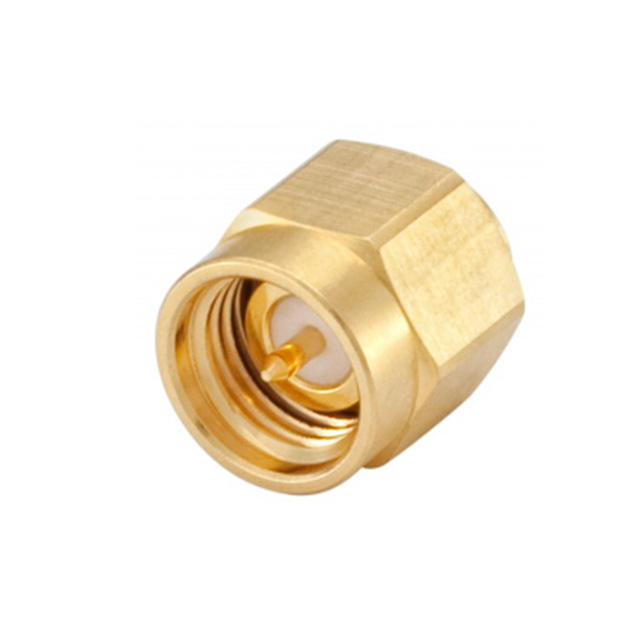

CONN SMA PLUG STR 50OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Body Material | Center Contact Plating | Voltage Rating | Mating Cycles | Includes | Frequency - Max [Max] | Connector Type | Fastening Type | Contact Termination | Center Contact Material | Mounting Type | Number of Ports | Housing Color | Impedance | Shield Termination | Cable Group | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Gold | 480 V | 500 | 1 Connector 1 Contact 1 Ferrule | 18 GHz | Plug Male Pin | Threaded | Solder | Brass | Free Hanging (In-Line) | 1 | Gold | 50 Ohms | Solder | RG-405 (.085" Semi Rigid) | SMA |
 Rosenberger | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Gold | 480 V | 500 | 1 Connector 1 Contact 1 Ferrule | 18 GHz | Plug Male Pin | Threaded | Solder | Brass | Free Hanging (In-Line) | 1 | Gold | 50 Ohms | Solder | SMA |
