002661 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 9POS 3.96MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Connector Type	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Shape	Material Flammability Rating	Insulation Material	Insulation Color	Termination	Contact Finish - Mating	Number of Rows	Style	Contact Type	Insulation Height	Insulation Height	Contact Length - Post
Molex 0026612090	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Push-Pull	3.96 mm	0.156 in	Tin	9	Unshrouded	11.43 mm	0.45 in	All	Header	0.13 in	3.3 mm	Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin	0.72 in	18.29 mm	Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin

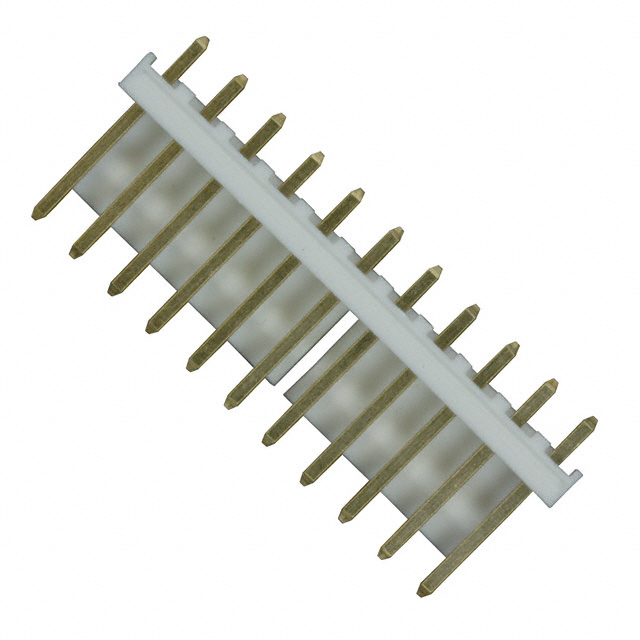

Molex 0026614110	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Friction Lock	3.96 mm	0.156 in	Tin	11	Shrouded - 1 Wall	11.43 mm	0.45 in	All	Header			Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin	0.72 in	18.29 mm	Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin	0.446 in	11.33 mm
Molex 0026613060	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Push-Pull	3.96 mm	0.156 in	Tin	6	Unshrouded	14.86 mm	0.585 in	All	Header	0.13 in	3.3 mm	Right Angle Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin			Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin
Molex 0026612110	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Push-Pull	3.96 mm	0.156 in	Tin	11	Unshrouded	11.43 mm	0.45 in	All	Header	0.13 in	3.3 mm	Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin	0.72 in	18.29 mm	Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin
Molex 0026613170	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Push-Pull	3.96 mm	0.156 in	Tin		Unshrouded	14.86 mm	0.585 in	All	Header	0.13 in	3.3 mm	Right Angle Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin			Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin
Molex 0026612030	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Push-Pull	3.96 mm	0.156 in	Tin		Unshrouded	11.43 mm	0.45 in	All	Header	0.13 in	3.3 mm	Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin	0.72 in	18.29 mm	Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin

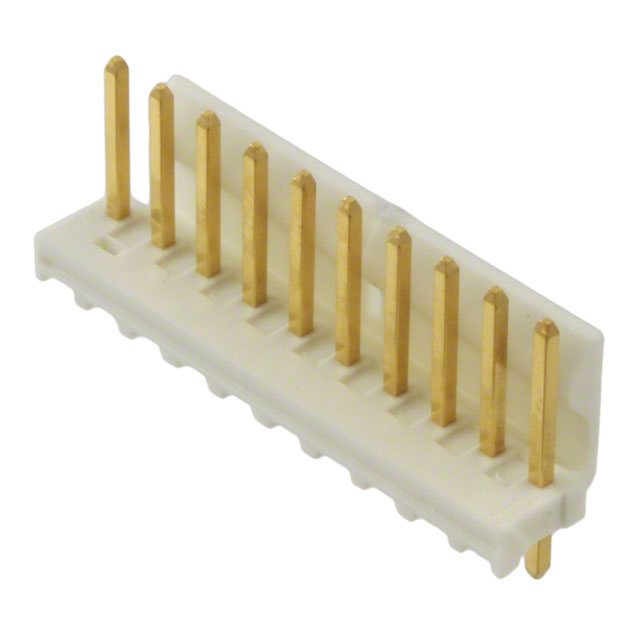

Molex 0026614100	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Friction Lock	3.96 mm	0.156 in	Tin	10	Shrouded - 1 Wall	11.43 mm	0.45 in	All	Header			Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin	0.72 in	18.29 mm	Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin	0.446 in	11.33 mm

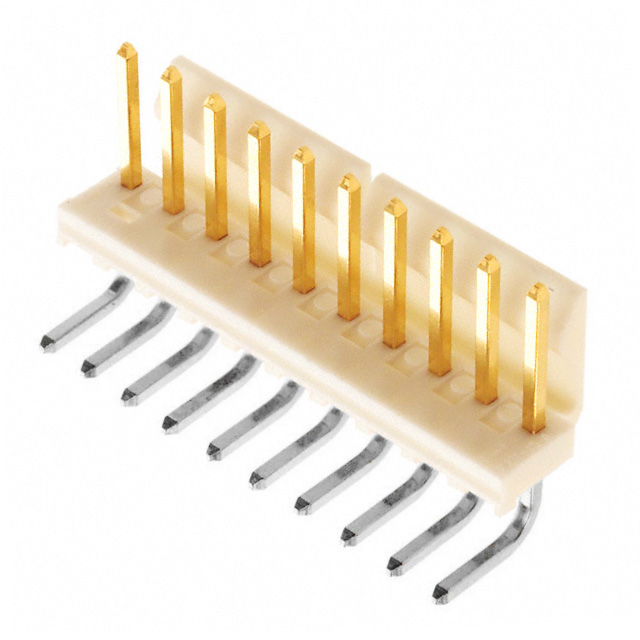

Molex 0026615100	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Friction Lock	3.96 mm	0.156 in	Tin	10	Shrouded - 1 Wall	11.43 mm	0.45 in	All	Header			Right Angle Through Hole	3.96 mm		0.51 µm	20 µin			Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin	0.394 "	10 mm	0.156 "
Molex 0026612060	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Push-Pull	3.96 mm	0.156 in	Tin	6	Unshrouded	11.43 mm	0.45 in	All	Header	0.13 in	3.3 mm	Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin	0.72 in	18.29 mm	Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin
Molex 0026613100	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Push-Pull	3.96 mm	0.156 in	Tin	10	Unshrouded	14.86 mm	0.585 in	All	Header	0.13 in	3.3 mm	Right Angle Through Hole	3.56 mm	0.14 in	0.51 µm	20 µin			Square	UL94 V-0	Polyester Glass Filled	Natural	Solder	Gold	1	Board to Board Cable	Male Pin
