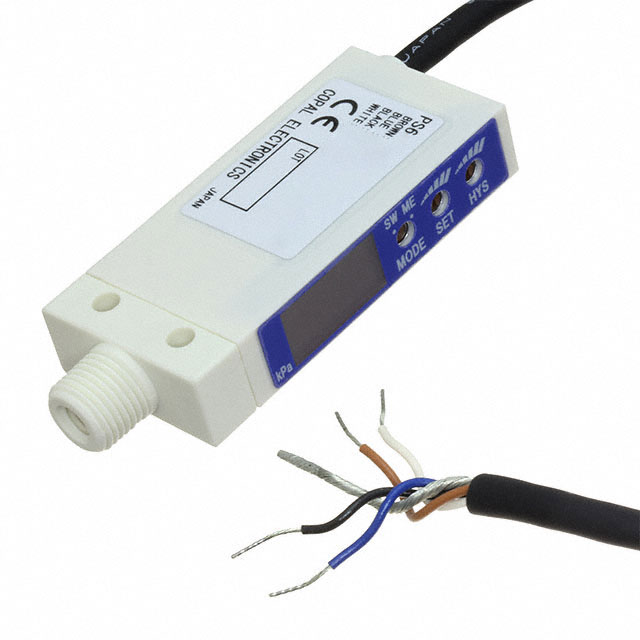

PS6-103 Series

Manufacturer: Nidec Components Corporation

Catalog

PRESSURE SWITCHES

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Port Size	Features	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Pressure Type	Package / Case	Operating Pressure	Operating Pressure	Accuracy	Output Type	Port Style	Voltage - Supply [Min]	Voltage - Supply [Max]
Nidec Components Corporation PS6-103G-PAR	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	PNP - Open Collector	Threaded	12 VDC	24 V
Nidec Components Corporation PS6-103G-PWM	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	PNP - Open Collector	Threaded	12 VDC	24 V
Nidec Components Corporation PS6-103G-NAR	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	NPN - Open Collector	Threaded	12 VDC	24 V
Nidec Components Corporation PS6-103G-NWM	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	NPN - Open Collector	Threaded	12 VDC	24 V
Nidec Components Corporation PS6-103G-PWR	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	PNP - Open Collector	Threaded	12 VDC	24 V
Nidec Components Corporation PS6-103G-NWR	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	NPN - Open Collector	Threaded	12 VDC	24 V
Nidec Components Corporation PS6-103G-NAM	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	NPN - Open Collector	Threaded	12 VDC	24 V
Nidec Components Corporation PS6-103G-PAM	290.08 PSI	2000 kPa	Industrial Automation	Female M5	Temperature Compensated	Cable	-10 °C	60 °C	Gauge	Module Box with Display	145.04 PSI	10 bar	3 %	PNP - Open Collector	Threaded	12 VDC	24 V
