05FMN-BM Series

Catalog

CONN FFC VERT 5POS 1MM SMD

Part	Current Rating (Amps)	Housing Color	Contact Finish	Voltage Rating	Pitch	Pitch	Material Flammability Rating	Flat Flex Type	Housing Material	Cable End Type	Mounting Type	Termination	Height Above Board [z]	Height Above Board [z]	Features	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	FFC, FCB Thickness

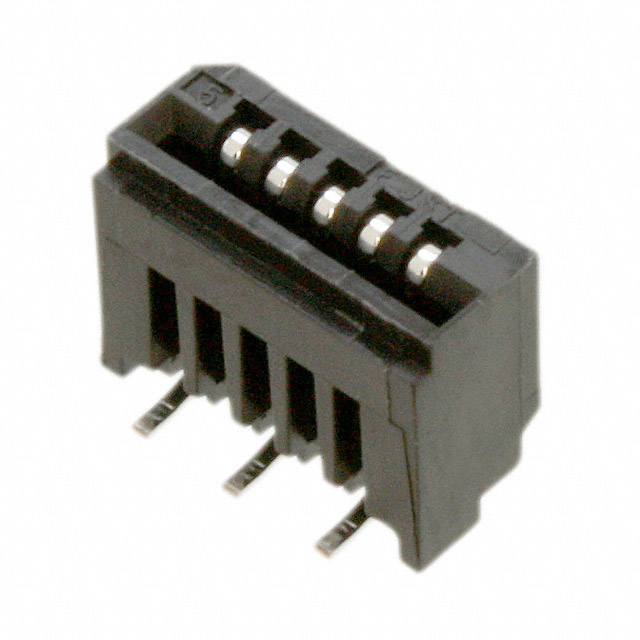

JST Sales America Inc. 05FMN-BMTTN-A-TF	0.5 A	Black	Tin	50 V	1 mm	0.039 in	UL94 V-0	FFC	Nylon 6T Polyamide (PA6T)	Straight	Surface Mount	Solder	5.1 mm	0.201 in	Low Insertion Force (LIF)	5	Phosphor Bronze	85 °C	-25 °C	Contacts Vertical - 1 Sided	0.3 mm
JST Sales America Inc. 05FMN-BMTR-A-TB(LF)(SN)	0.5 A	Black	Tin	50 V	1 mm	0.039 in	UL94 V-0	FFC	Nylon 6T Polyamide (PA6T)	Straight	Surface Mount	Solder	5.1 mm	0.201 in	Low Insertion Force (LIF)	5	Phosphor Bronze	85 °C	-25 °C	Contacts Vertical - 1 Sided	0.3 mm
