PLC1G Series

Catalog

CIRCULAR

...

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Connector Type	Contact Finish - Mating	Ingress Protection	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Features	Shell Material	Current Rating (Amps)	Mounting Type	Number of Positions	Orientation [custom]	Insert Material	Shielding	Color	Fastening Type	Primary Material	Contact Material	Orientation [custom]	Cable Opening	Orientation	Cable Opening [Max]

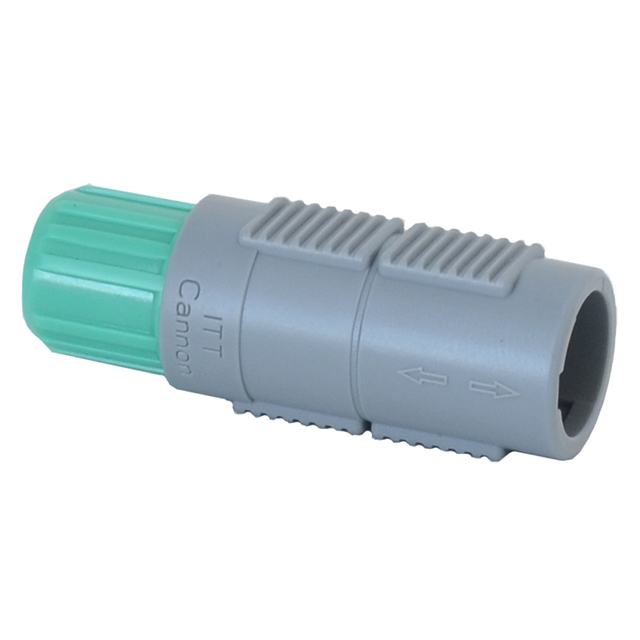

ITT Cannon, LLC PLC1G523J10	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected	6.5 mm	0.209 in	0.256 in	5.3 mm	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	10	J	Plastic	Unshielded	Gray Green	Latch Lock Push-Pull	Plastic	Copper Alloy

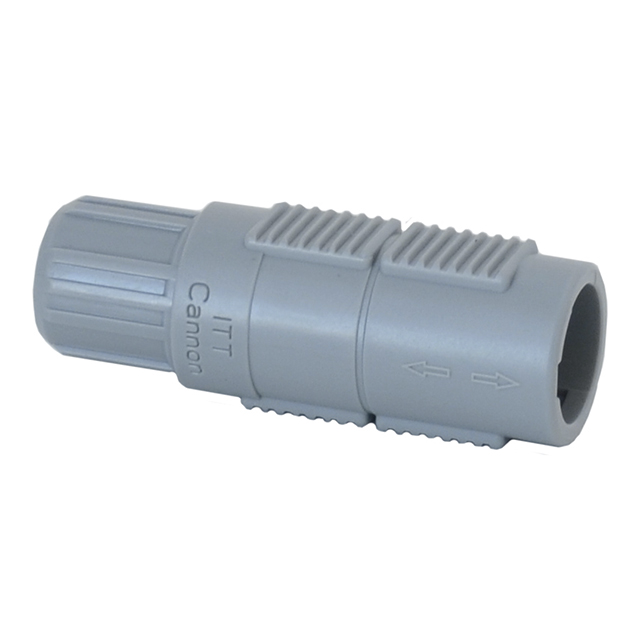

ITT Cannon, LLC PLC1G822014	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected		0.157 in	0.205 in		Backshell	Polysulfone (PSU)	2 A	Free Hanging (In-Line)	14		Plastic	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy	0 °	4 mm 5.2 mm

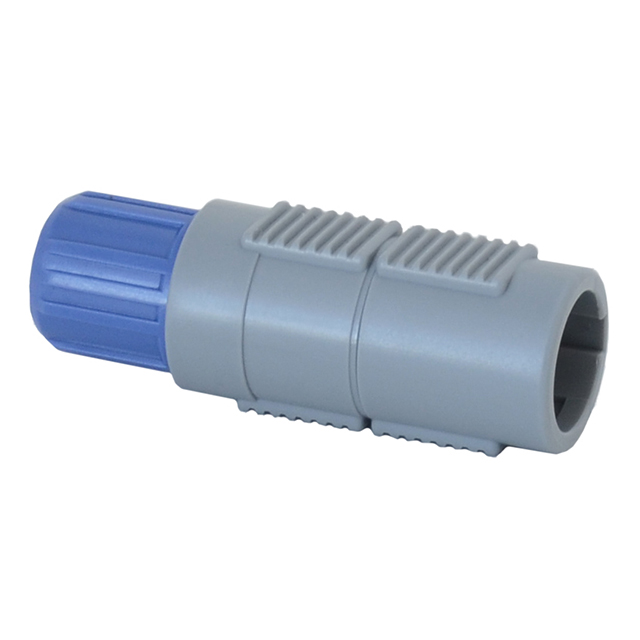

ITT Cannon, LLC PLC1G623A02	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected	6.5 mm	0.209 in	0.256 in	5.3 mm	Backshell	Polysulfone (PSU)	10 A	Free Hanging (In-Line)	2		Plastic	Unshielded	Blue Gray	Latch Lock Push-Pull	Plastic	Copper Alloy			A
ITT Cannon, LLC PLC1G623H10	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected	6.5 mm	0.209 in	0.256 in	5.3 mm	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	10		Plastic	Unshielded	Blue Gray	Latch Lock Push-Pull	Plastic	Copper Alloy			H
ITT Cannon, LLC PLC1G621J05	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected		0.106 in	0.154 in	2.7 mm	Backshell	Polysulfone (PSU)	7 A	Free Hanging (In-Line)	5	J	Plastic	Unshielded	Blue Gray	Latch Lock Push-Pull	Plastic	Copper Alloy				3.9 mm

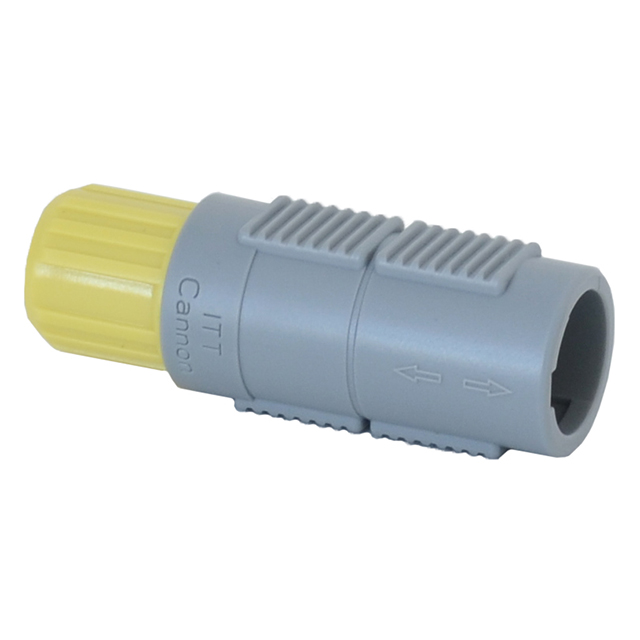

ITT Cannon, LLC PLC1G421H03	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected		0.106 in	0.154 in	2.7 mm	Backshell	Polysulfone (PSU)	10 A	Free Hanging (In-Line)			Plastic	Unshielded	Gray Yellow	Latch Lock Push-Pull	Plastic	Copper Alloy			H	3.9 mm
ITT Cannon, LLC PLC1G823J09	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected	6.5 mm	0.209 in	0.256 in	5.3 mm	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	9	J	Plastic	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G823A06	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected	6.5 mm	0.209 in	0.256 in	5.3 mm	Backshell	Polysulfone (PSU)	6 A	Free Hanging (In-Line)	6		Plastic	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy			A
ITT Cannon, LLC PLC1G823H09	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected	6.5 mm	0.209 in	0.256 in	5.3 mm	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	9		Plastic	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy			H
ITT Cannon, LLC PLC1G422A05	UL94 V-0	0.51 µm	20 µin	Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Polysulfone (PSU)	Receptacle Female Sockets	Gold	IP50 - Dust Protected		0.157 in	0.205 in		Backshell	Polysulfone (PSU)	7 A	Free Hanging (In-Line)	5		Plastic	Unshielded	Gray Yellow	Latch Lock Push-Pull	Plastic	Copper Alloy		4 mm 5.2 mm	A
