ECE-S1 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 33000UF 20% 16V SNAP TH

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ripple Current @ Low Frequency	Polarization	Mounting Type	Lead Spacing	Lead Spacing	Applications	Ripple Current @ High Frequency	Tolerance	Voltage - Rated	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

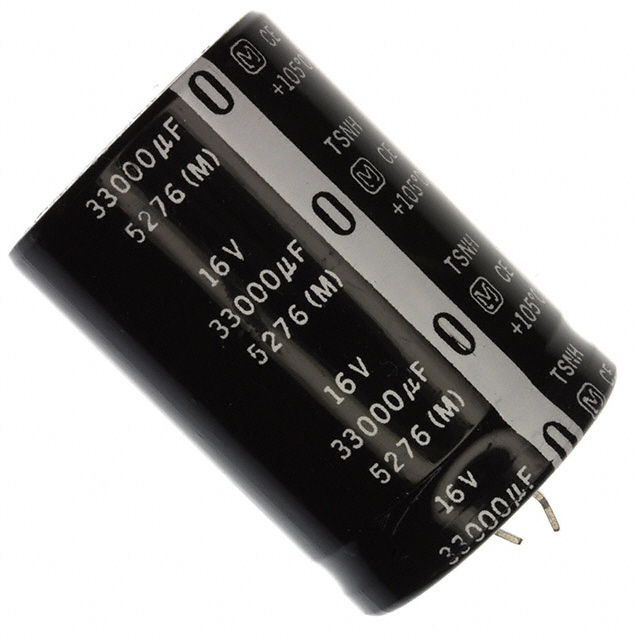

Panasonic Electronic Components ECE-S1CG333Z	1.969 in	50 mm	2000 Hrs	-40 C	105 ░C	Radial Can - Snap-In	4.8 A	Polar	Through Hole	0.394 in	10 mm	General Purpose	5.52 A	20 %	16 V	33000 µF	1.378 "	35 mm
Panasonic Electronic Components ECE-S1CG472E			2000 Hrs	-40 C	105 ░C	Radial Can - Snap-In	2 A	Polar	Through Hole	0.394 in	10 mm	General Purpose	2.3 A	20 %	16 V	4700 µF	0.866 "	22 mm	30 mm	1.181 "

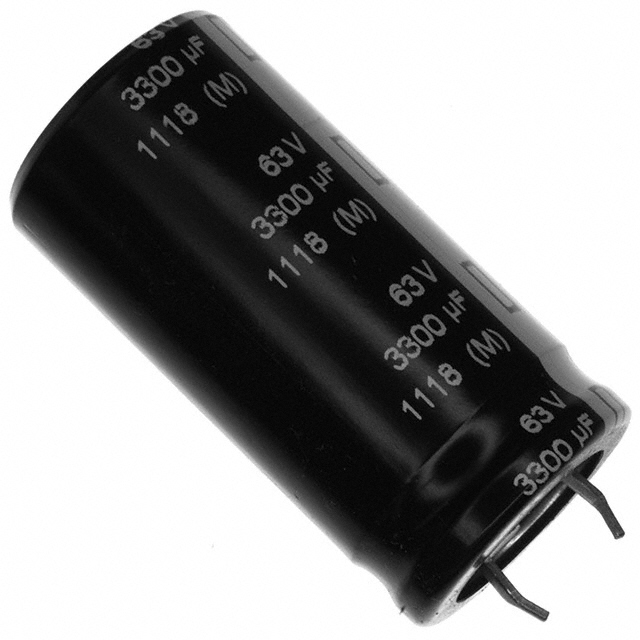

Panasonic Electronic Components ECE-S1JG332N	1.969 in	50 mm	2000 Hrs	-40 C	105 ░C	Radial Can - Snap-In	2.5 A	Polar	Through Hole	0.394 in	10 mm	General Purpose	2.875 A	20 %	63 V	3.3 mF	0.984 "	25 mm
Panasonic Electronic Components ECE-S1HG103Z	1.969 in	50 mm	2000 Hrs	-40 C	105 ░C	Radial Can - Snap-In	3.7 A	Polar	Through Hole	0.394 in	10 mm	General Purpose	4.255 A	20 %	50 VDC	10000 µF	1.378 "	35 mm
Panasonic Electronic Components ECE-S1EG103N	1.969 in	50 mm	2000 Hrs	-40 C	105 ░C	Radial Can - Snap-In	3.1 A	Polar	Through Hole	0.394 in	10 mm	General Purpose	3.565 A	20 %	25 VDC	10000 µF	0.984 "	25 mm
Panasonic Electronic Components ECE-S1VG153Z	1.969 in	50 mm	2000 Hrs	-40 C	105 ░C	Radial Can - Snap-In	3.9 A	Polar	Through Hole	0.394 in	10 mm	General Purpose	4.485 A	20 %	35 V		1.378 "	35 mm

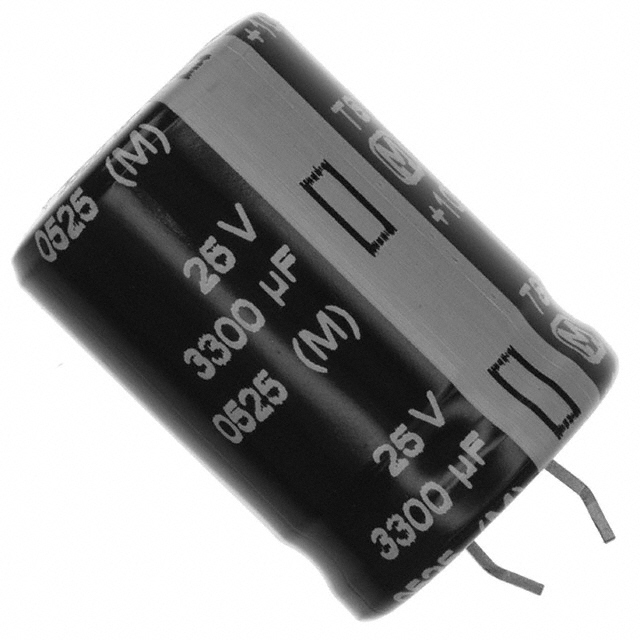

Panasonic Electronic Components ECE-S1EG332E			2000 Hrs	-40 C	105 ░C	Radial Can - Snap-In	1.7 A	Polar	Through Hole	0.394 in	10 mm	General Purpose	1.955 A	20 %	25 VDC	3.3 mF	0.866 "	22 mm	30 mm	1.181 "
