V19S0 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

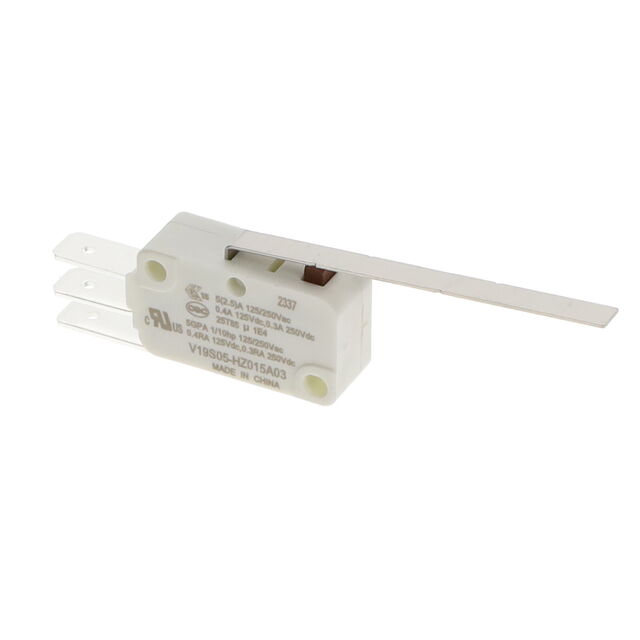

MICROSWITCH, STANDARD, LONG STRAIGHT LEVER, SPDT, QUICK CONNECT, RAST 5, 5 A
| Part | Pretravel | Pretravel | Ingress Protection | Current Rating (Amps) | Mounting Type | Mechanical Life | Release Force | Overtravel [custom] | Overtravel [custom] | Voltage Rating - AC | Electrical Life | Operating Force | Switch Function | Differential Travel | Differential Travel | Operating Position | Operating Position | Circuit | Actuator Type | Voltage Rating - DC | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.354 in | 9 mm | IP40 | 5 A 400 mA | Chassis Mount | 1000000 Cycles | 2 gf | 0.079 " | 2 mm | 125 V | 10000 Cycles | 5 gf | On-Mom | 0.15 in | 3.8 mm | 0.598 " | 15.2 mm | SPDT | Lever Straight | 125 VDC | Quick Connect - 0.250" (6.3mm) | 85 °C | -25 °C |
 Honeywell Sensing and Productivity Solutions | 0.047 in | 1.2 mm | IP40 | 5 A 400 mA | Chassis Mount | 1000000 Cycles | 4 gf | 0.039 " | 1 mm | 125 V | 10000 Cycles | 15 gf | On-Mom | 0.016 in | 0.4 mm | 0.579 in | 14.7 mm | SPDT | Round (Pin Plunger) | 125 VDC | PC Pin | 85 °C | -25 °C |
