EN2C3F Series

Catalog

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Shielding	Orientation	Features	Mounting Type	Insert Material	Voltage Rating	Material Flammability Rating	Backshell Material, Plating	Current Rating (Amps)	Fastening Type	Primary Material	Contact Finish - Mating	Connector Type	Termination	Cable Opening [custom]	Cable Opening [custom]	Color	Applications	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]

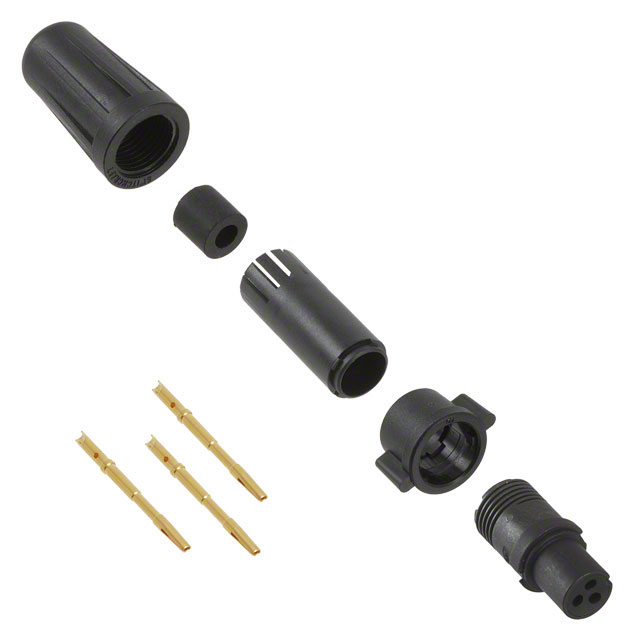

Switchcraft Inc. EN2C3F20G1W	Unshielded	Keyed	Backshell Coupling Nut Winged	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup	2.54 mm 3.56 mm	0.1 in 0.14 in	Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy
Switchcraft Inc. EN2C3F20G1	Unshielded	Keyed	Backshell Coupling Nut	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup	2.54 mm 3.56 mm	0.1 in 0.14 in	Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy
Switchcraft Inc. EN2C3F20G2	Unshielded	Keyed	Backshell Coupling Nut	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup			Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy	4.57 mm	3.56 mm	0.14 in	0.18 in

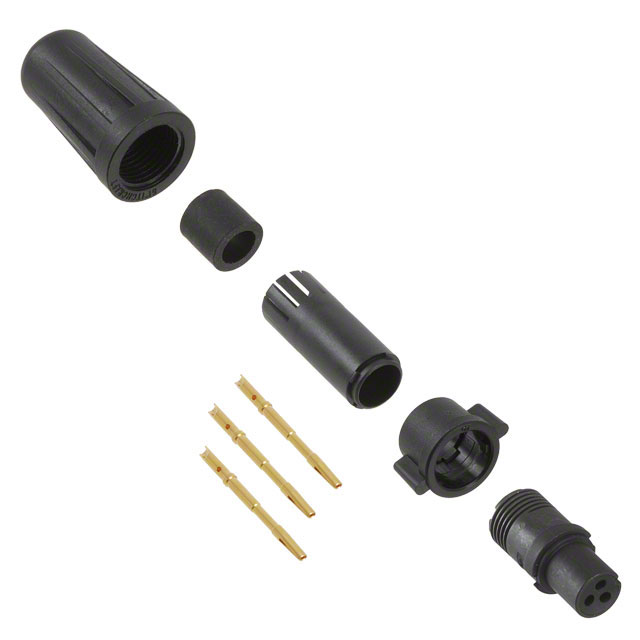

Switchcraft Inc. EN2C3F20G2W	Unshielded	Keyed	Backshell Coupling Nut Winged	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup			Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C3F20G3	Unshielded	Keyed	Backshell Coupling Nut	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup			Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy					0.18 in	0.22 in	4.57 mm	5.59 mm

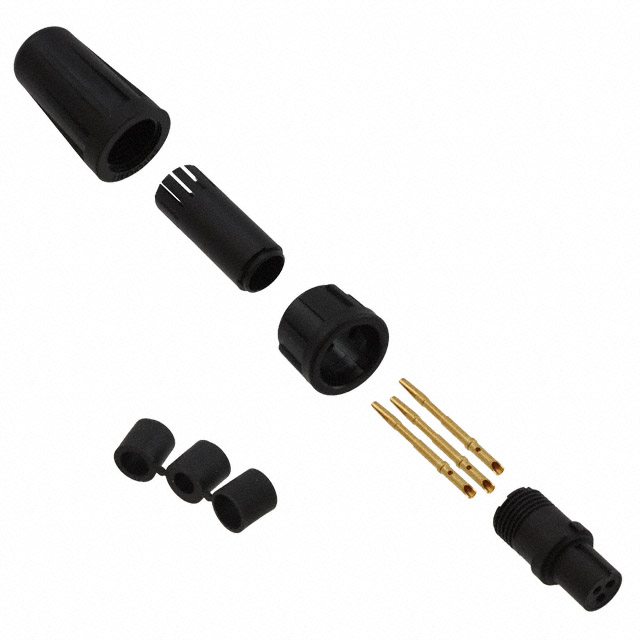

Switchcraft Inc. EN2C3F20DC	Unshielded	Keyed	Backshell Coupling Nut	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup			Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy

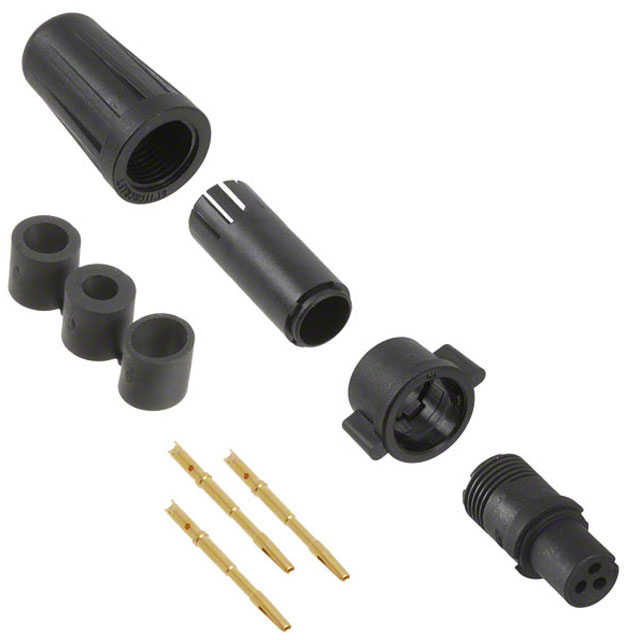

Switchcraft Inc. EN2C3F20DCW	Unshielded	Keyed	Backshell Coupling Nut Winged	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup			Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy

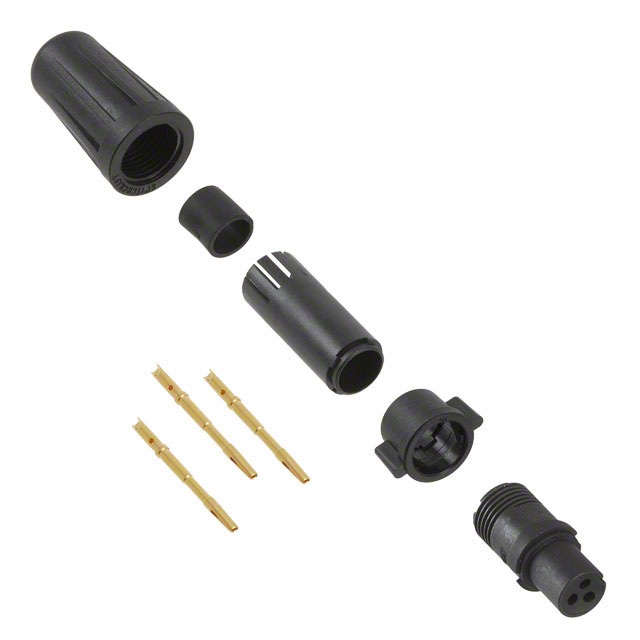

Switchcraft Inc. EN2C3F20G3W	Unshielded	Keyed	Backshell Coupling Nut Winged	Free Hanging (In-Line)	Elastomer	125 VAC	UL94 V-0	Thermoplastic	2 A	Bayonet Lock	Plastic	Gold	Female Sockets Plug	Crimp Solder Cup			Black	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	85 °C	-40 °C	Copper Alloy					0.18 in	0.22 in	4.57 mm	5.59 mm
