852-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER SMD 32POS 1.27MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Mounting Type	Features	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shrouding	Number of Positions Loaded	Contact Shape	Contact Finish - Post	Connector Type	Contact Type	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
Preci-Dip 852-10-032-30-002191	10 Áin	0.25 çm	Black	Surface Mount	Pick and Place	UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold	0.1 in	2.54 mm	1.27 mm	0.05 in

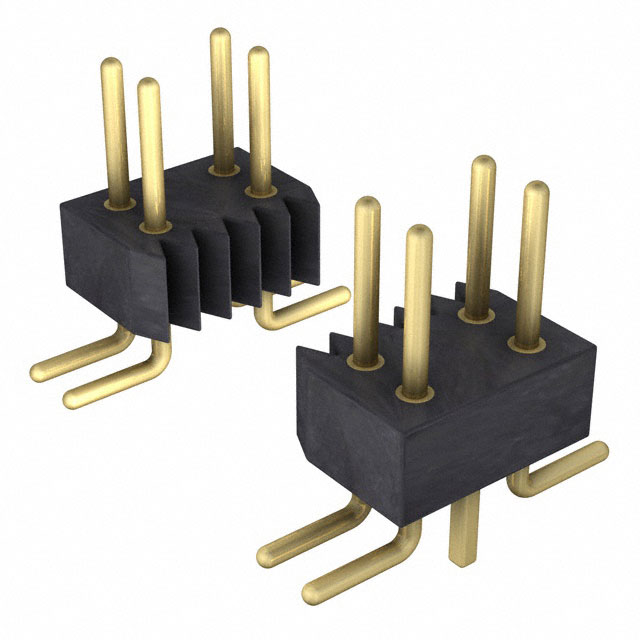

Preci-Dip 852-10-024-30-051101	10 Áin	0.25 çm	Black	Surface Mount	Board Guide	UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold	0.1 in	2.54 mm	1.27 mm	0.05 in	24

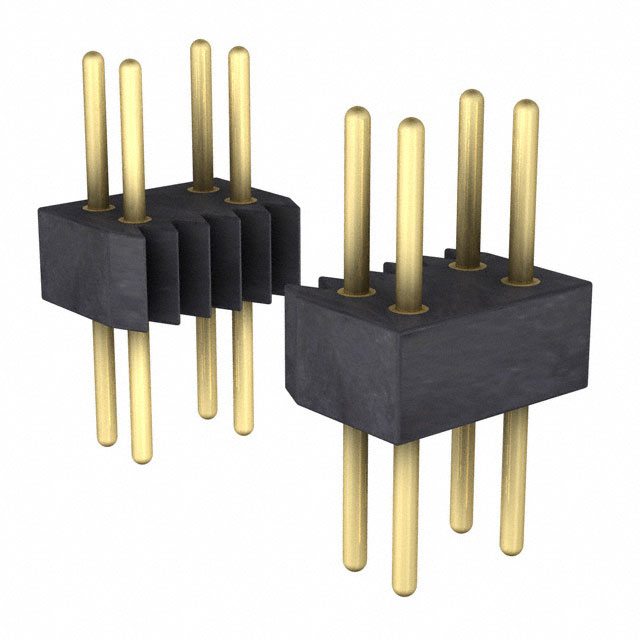

Preci-Dip 852-10-060-10-002101	10 Áin	0.25 çm	Black	Through Hole		UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold	0.1 in	2.54 mm	1.27 mm	0.05 in	60	8.1 mm	0.319 in	0.118 in	3 mm

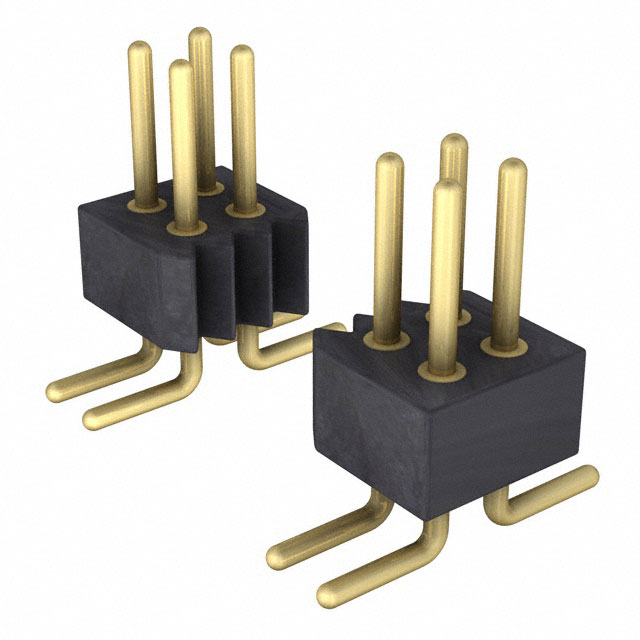

Preci-Dip 852-10-058-30-001101	10 Áin	0.25 çm	Black	Surface Mount		UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold			1.27 mm	0.05 in	58					0.05 in	1.27 mm

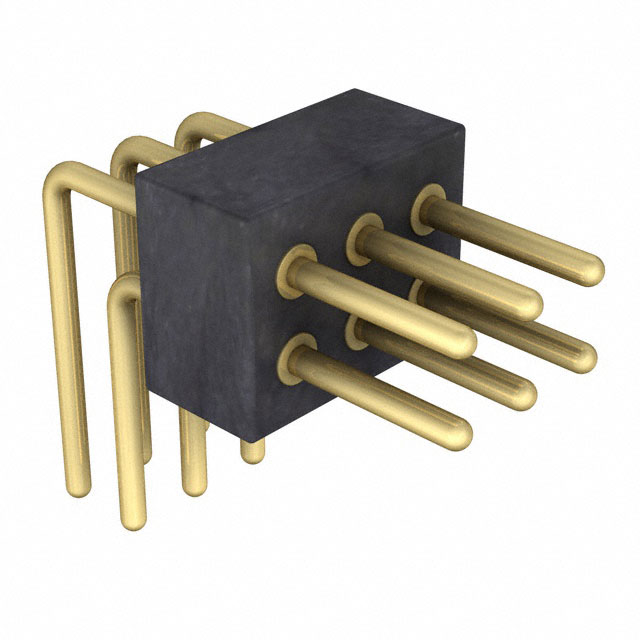

Preci-Dip 852-10-006-20-001101	10 Áin	0.25 çm	Black	Right Angle Through Hole		UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold			1.27 mm	0.05 in	6					0.05 in	1.27 mm	0.126 "	3.2 mm	0.128 in	3.25 mm

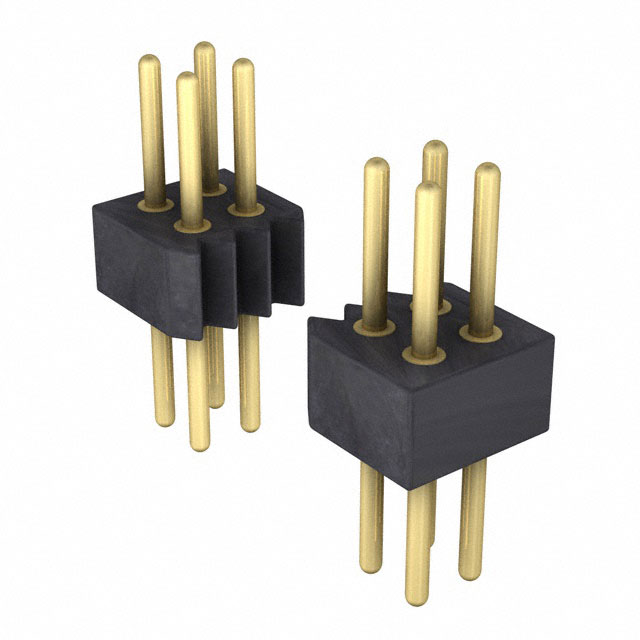

Preci-Dip 852-10-032-10-001101	10 Áin	0.25 çm	Black	Through Hole		UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold			1.27 mm	0.05 in		8.1 mm	0.319 in	0.118 in	3 mm	0.05 in	1.27 mm

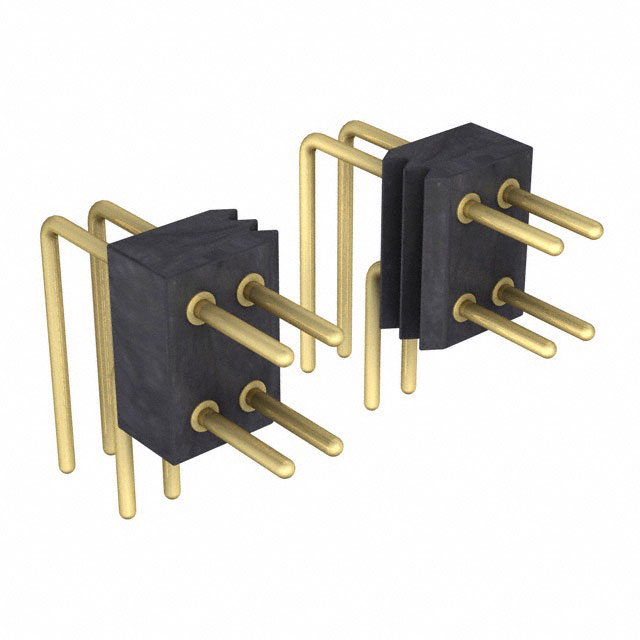

Preci-Dip 852-10-042-20-002101	10 Áin	0.25 çm	Black	Right Angle Through Hole		UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold	0.1 in	2.54 mm	1.27 mm	0.05 in	42							0.126 "	3.2 mm	0.174 in	4.42 mm
Preci-Dip 852-10-068-30-001101	10 Áin	0.25 çm	Black	Surface Mount		UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold			1.27 mm	0.05 in	68 positions					0.05 in	1.27 mm
Preci-Dip 852-10-036-30-001191	10 Áin	0.25 çm	Black	Surface Mount	Pick and Place	UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold			1.27 mm	0.05 in	36					0.05 in	1.27 mm

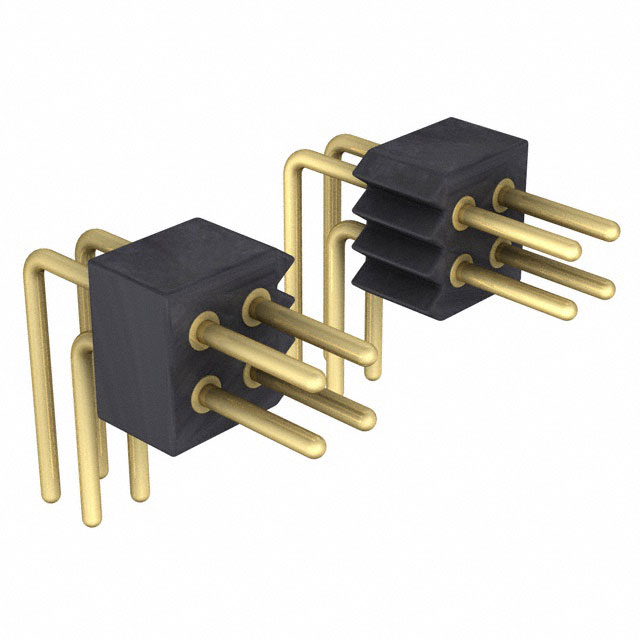

Preci-Dip 852-10-040-20-001101	10 Áin	0.25 çm	Black	Right Angle Through Hole		UL94 V-0	Brass	0.25 µm	10 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	150 VDC	-55 C	125 °C	Solder	Unshrouded	All	Circular	Gold	Header	Male Pin	2	3 mm	0.118 in	Gold			1.27 mm	0.05 in	40					0.05 in	1.27 mm	0.126 "	3.2 mm	0.128 in	3.25 mm
