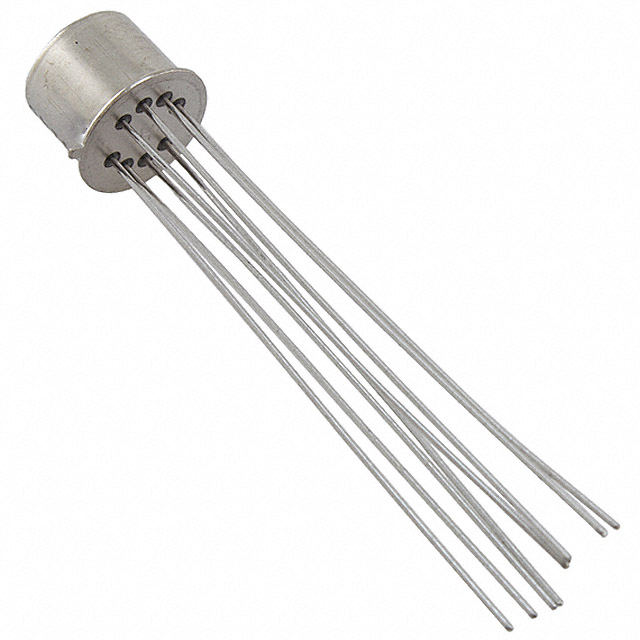

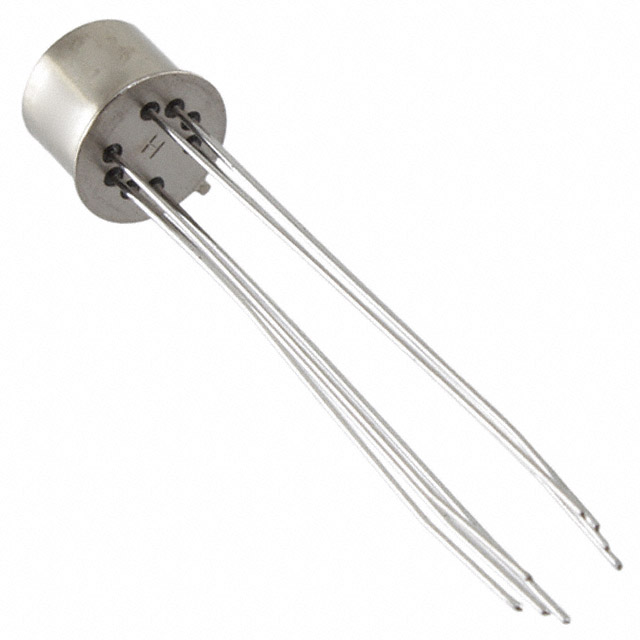

JMAW-26 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 26.5V
| Part | Contact Rating (Current) | Coil Resistance | Contact Form | Release Time | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Switching Voltage | Seal Rating | Qualification | Load - Max Switching | Coil Type | Grade | Termination Style | Must Operate Voltage | Contact Material | Coil Voltage | Operate Time | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 1 A | 1560 Ohms | DPDT (2 Form C) | 1.5 ms | Through Hole | 125 °C | -65 ░C | 17 mA | 28 VDC 115 VAC | Sealed - Hermetically | MIL-R-39016/9 | 28 W 115 VA | Non Latching | Military | PC Pin | 14.2 VDC | Gold (Au) Silver Palladium (AgPd) | 26.5 VDC | 2 ms | General Purpose |
 TE Connectivity Aerospace, Defense and Marine | 1 A | 1560 Ohms | DPDT (2 Form C) | 1.5 ms | Through Hole | 125 °C | -65 ░C | 17 mA | 28 VDC 115 VAC | Sealed - Hermetically | MIL-R-39016/9 | 28 W 115 VA | Non Latching | Military | PC Pin | 14.2 VDC | Gold (Au) Silver Palladium (AgPd) | 26.5 VDC | 2 ms | General Purpose |
