R12368 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

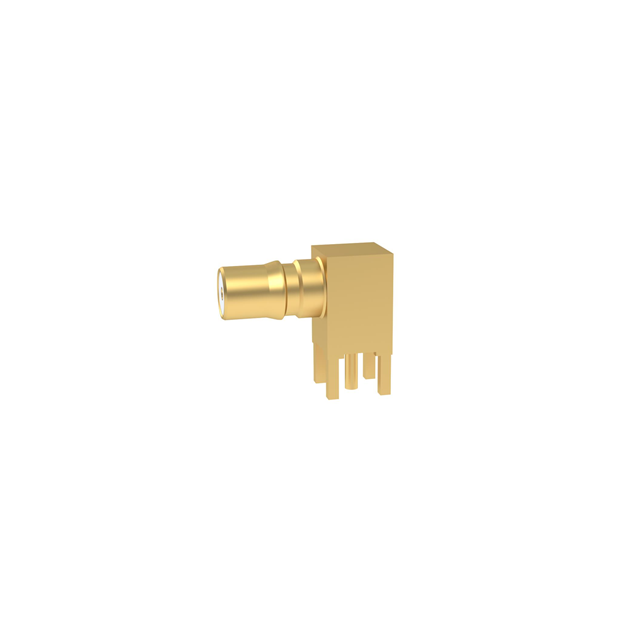

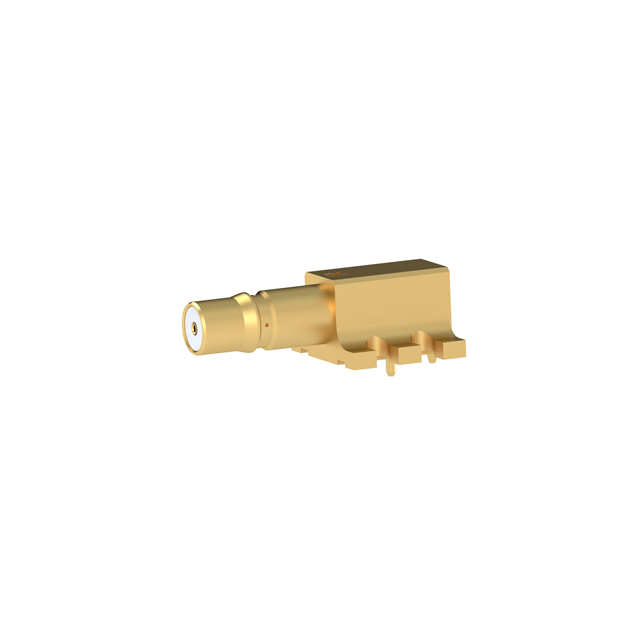

QMA / RIGHT ANGLE SMT RECEPTACLE
| Part | Center Contact Plating | Insertion Loss | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Center Contact Material | Connector Type | Impedance | Frequency - Max [Max] | Number of Ports | Contact Termination | Ingress Protection | Shield Termination | Housing Color | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 0.25 dB | Brass | 350 VDC | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Receptacle Female Socket | 50 Ohms | 6000 MHz | 1 | Solder | IP68 - Dust Tight Waterproof | Solder | Gold | Surface Mount Right Angle Through Hole | Snap-On |
 Radiall USA, Inc. | Gold | 0.25 dB | Brass | 350 VDC | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Receptacle Female Socket | 50 Ohms | 6000 MHz | 1 | Solder | IP68 - Dust Tight Waterproof | Solder | Gold | Surface Mount Right Angle Through Hole | Snap-On |
 Radiall USA, Inc. | Gold | 0.25 dB | Brass | 500 V | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Receptacle Female Socket | 50 Ohms | 6000 MHz | 1 | Solder | IP68 - Dust Tight Waterproof | Solder | Gold | Panel Mount Right Angle Through Hole | Snap-On |
