1546019 Series

Catalog

TERM BLOCK HDR 9POS VERT 5MM

Part	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Tail Length	Contact Tail Length	Contact Material	Type	Number of Levels	Header Orientation	Color	Positions Per Level	Number of Positions	Termination Style	Voltage - UL	Contact Mating Finish	Pitch	Pitch	Mounting Type
TE Connectivity AMP Connectors 1546019-9	UL94 V-0	2 mm	0.079 in	0.138 in	3.5 mm	Brass	Header Male Pins Unshrouded	1	Vertical	Black	9	9	Solder	300 V	Tin	0.197 in	5 mm	Through Hole
TE Connectivity AMP Connectors 1546019-8	UL94 V-0	2 mm	0.079 in	0.138 in	3.5 mm	Brass	Header Male Pins Unshrouded	1	Vertical	Black	8	8	Solder	300 V	Tin	0.197 in	5 mm	Through Hole
TE Connectivity AMP Connectors 1-1546019-0	UL94 V-0	2 mm	0.079 in	0.138 in	3.5 mm	Brass	Header Male Pins Unshrouded	1	Vertical	Black	10	10	Solder	300 V	Tin	0.197 in	5 mm	Through Hole

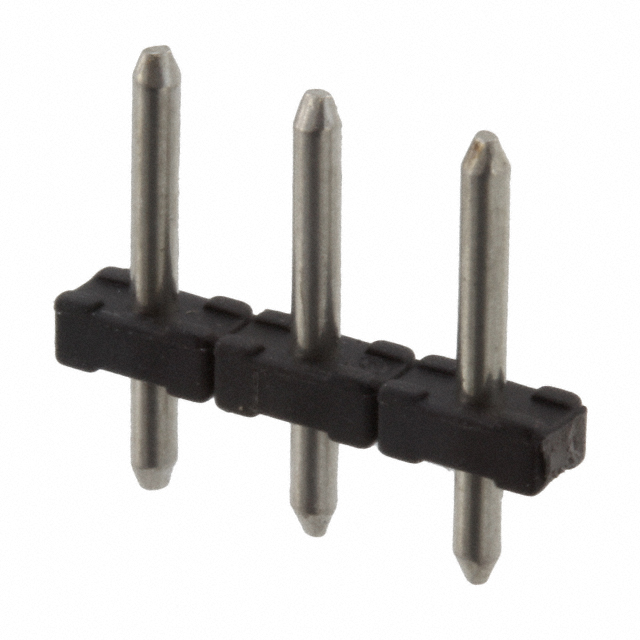

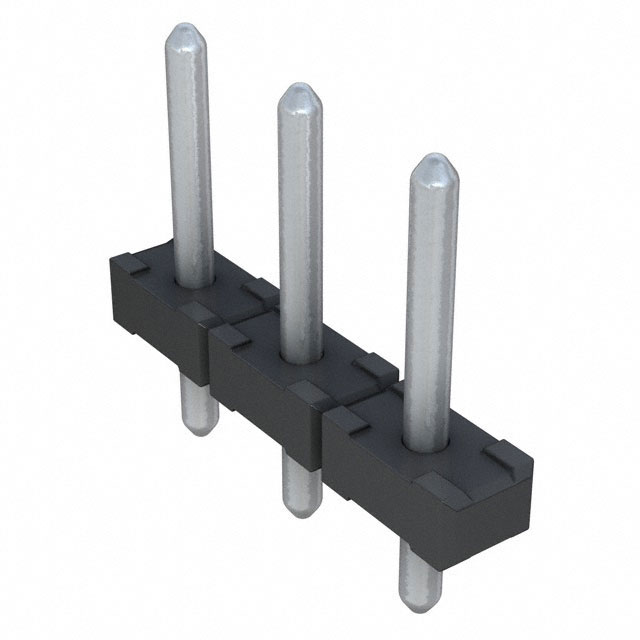

TE Connectivity AMP Connectors 1546019-3	UL94 V-0	2 mm	0.079 in	0.138 in	3.5 mm	Brass	Header Male Pins Unshrouded	1	Vertical	Black	3		Solder	300 V	Tin	0.197 in	5 mm	Through Hole
